SIR Connector End Views

Fig 1: Electronic Frontal Sensor-Left

Courtesy of GENERAL MOTORS CORP.

Fig 2: Electronic Frontal Sensor-Right

Courtesy of GENERAL MOTORS CORP.

Fig 3: Inflatable Restraint IP Module

Courtesy of GENERAL MOTORS CORP.

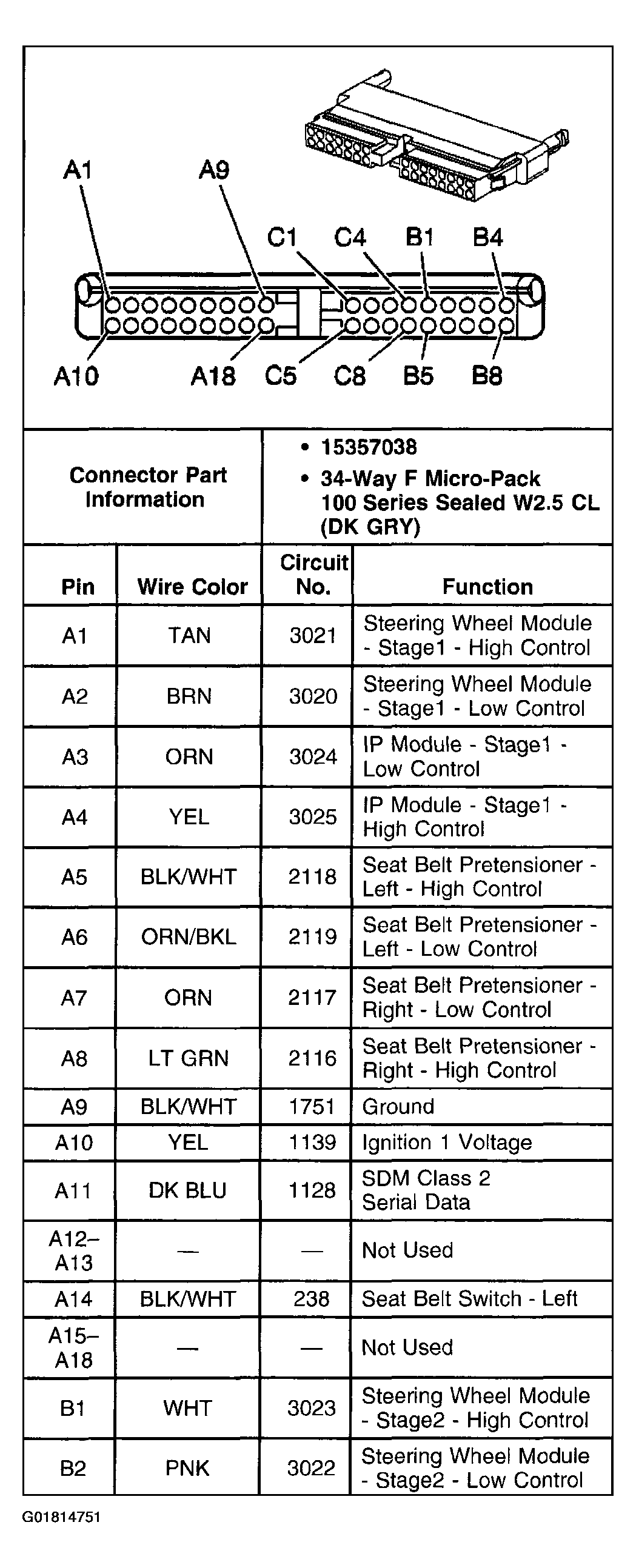

Fig 4: Inflatable Restraint Sensing And Diagnostic Module (SDM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

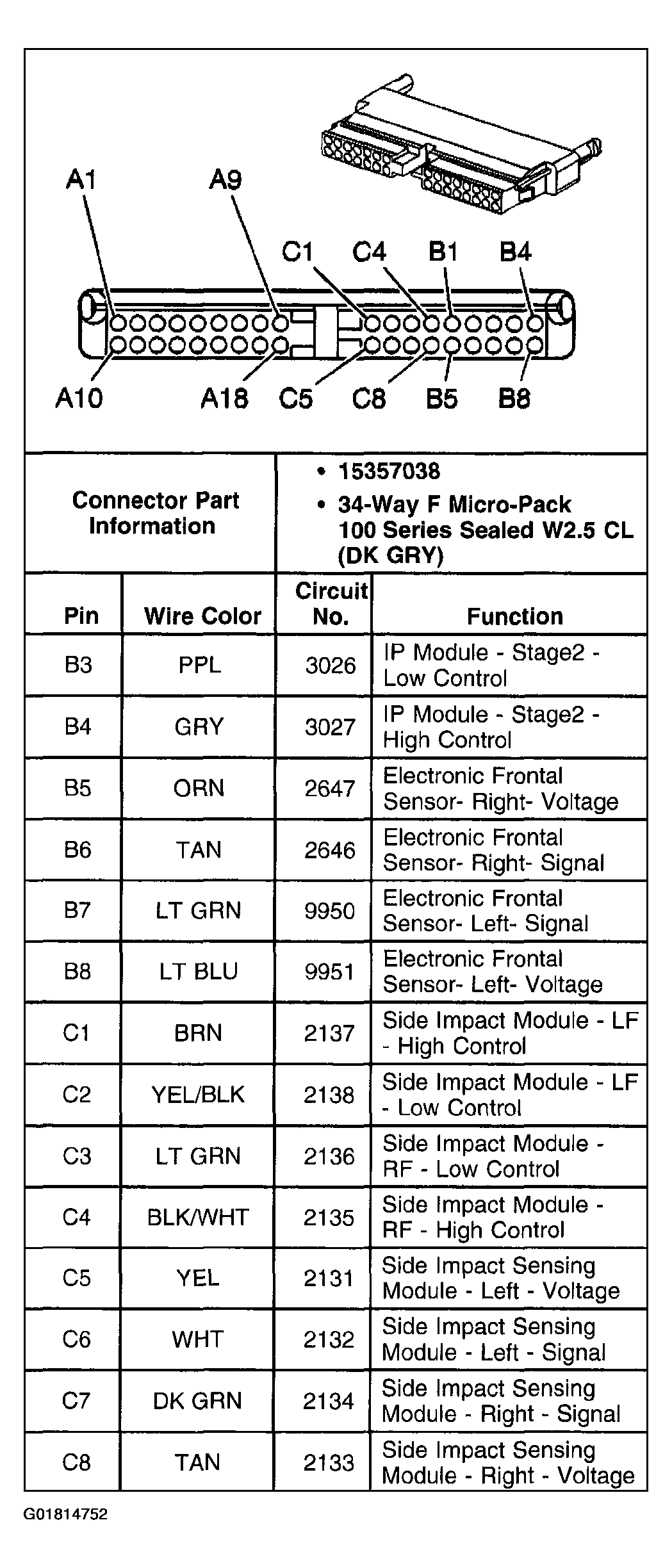

Fig 5: Inflatable Restraint Sensing And Diagnostic Module (SDM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Side Impact Module - Left

Courtesy of GENERAL MOTORS CORP.

Fig 7: Side Impact Module - Right

Courtesy of GENERAL MOTORS CORP.

Fig 8: Side Impact Sensor - Left

Courtesy of GENERAL MOTORS CORP.

Fig 9: Side Impact Sensor - Right

Courtesy of GENERAL MOTORS CORP.

Fig 10: Inflatable Restraint Steering Wheel Module

Courtesy of GENERAL MOTORS CORP.

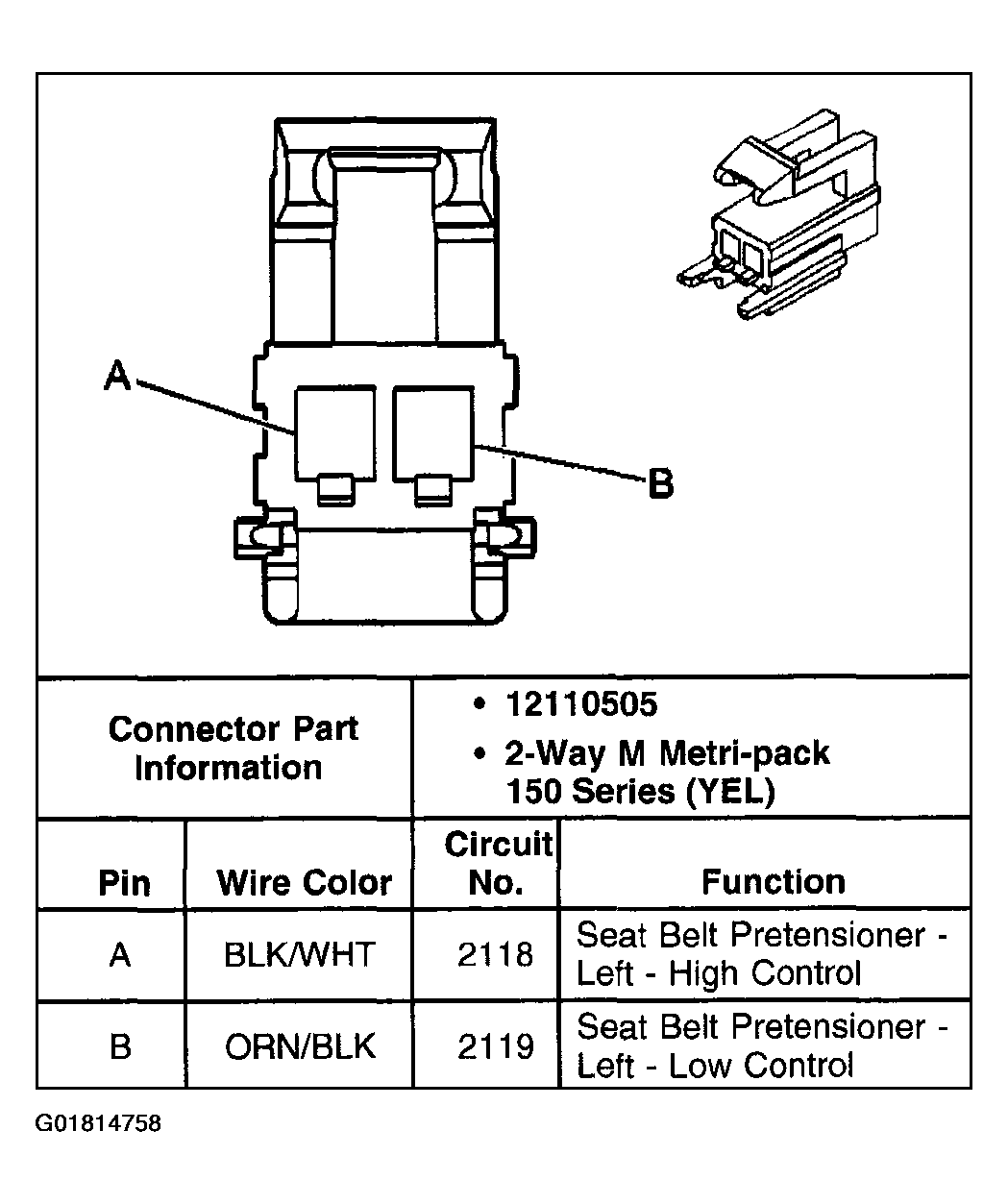

Fig 11: Seat Belt Pretensioner - Left

Courtesy of GENERAL MOTORS CORP.

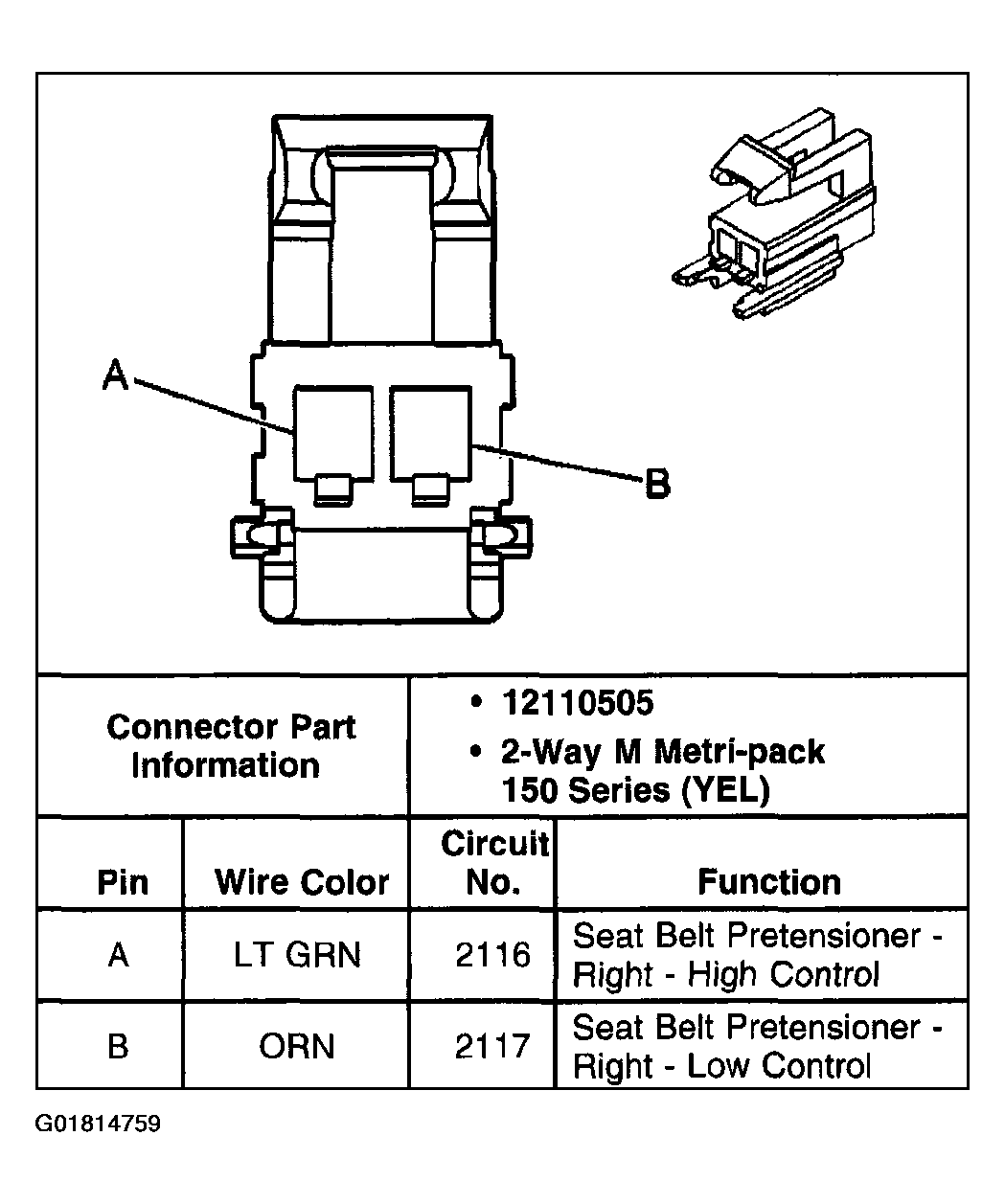

Fig 12: Seat Belt Pretensioner - Right

Courtesy of GENERAL MOTORS CORP.
