Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side of the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connectors from the stop light switch.
  3. Remove the stop lamp switch (1) from the brake pedal bracket (2).

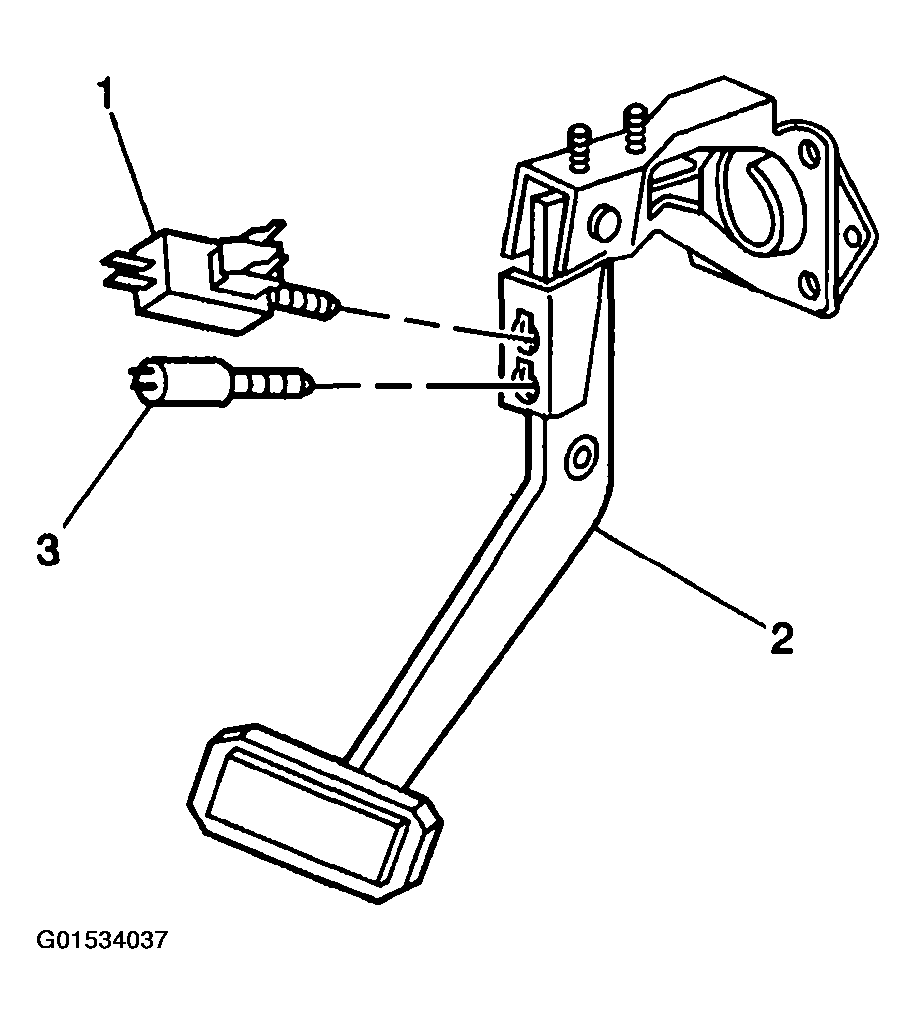

    Fig 1: Removing Stop Lamp Switch And Cruise Control Switch From Brake Pedal Bracket
    G01534037Courtesy of GENERAL MOTORS CORP.
