Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the headlamp switch to the instrument panel:
    1. Align the pins with the alignment hole.
    2. Push in the headlamp switch until secure.
  3. Install the instrument cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.

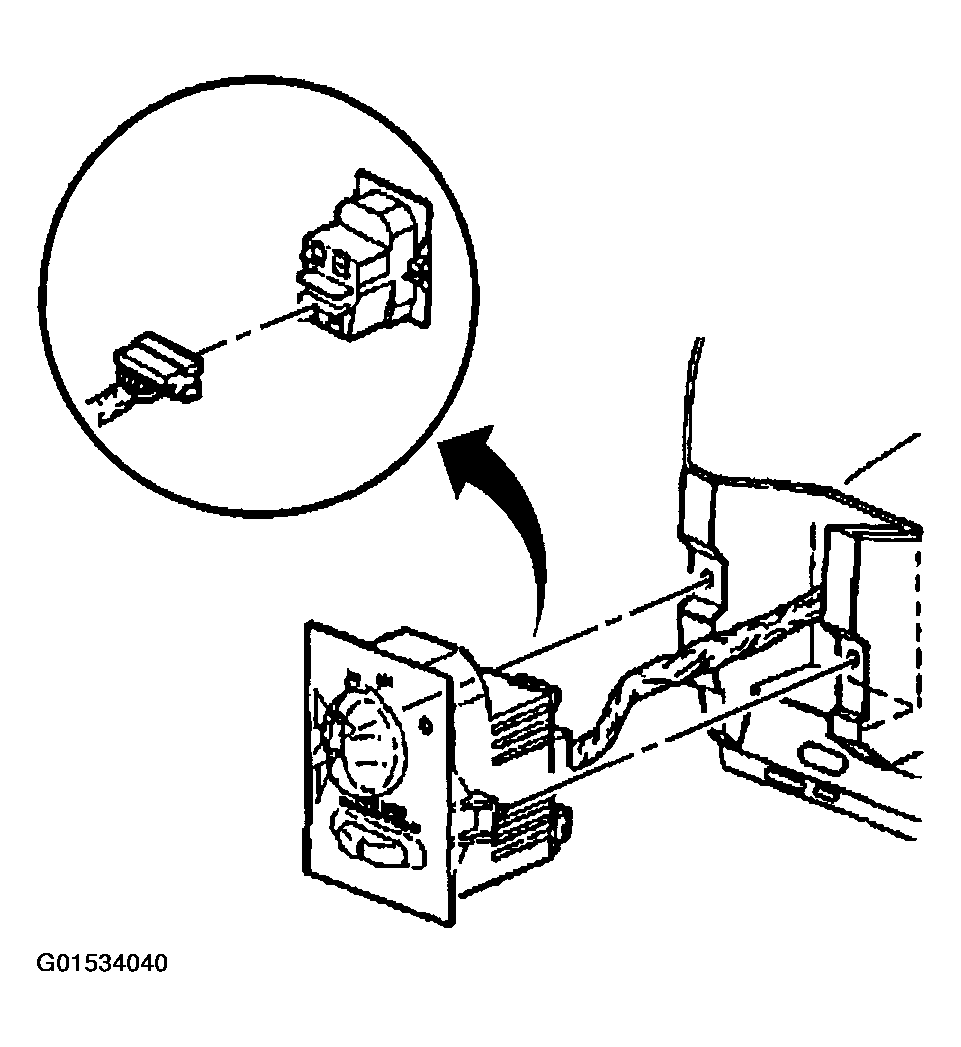

    Fig 1: Connecting Headlamp Switch Connector
    G01534040Courtesy of GENERAL MOTORS CORP.
