Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Press the bulb into the socket.
Snap the cargo lamp lens into the cargo lamp.
Connect the electrical connectors to the cargo lamp.

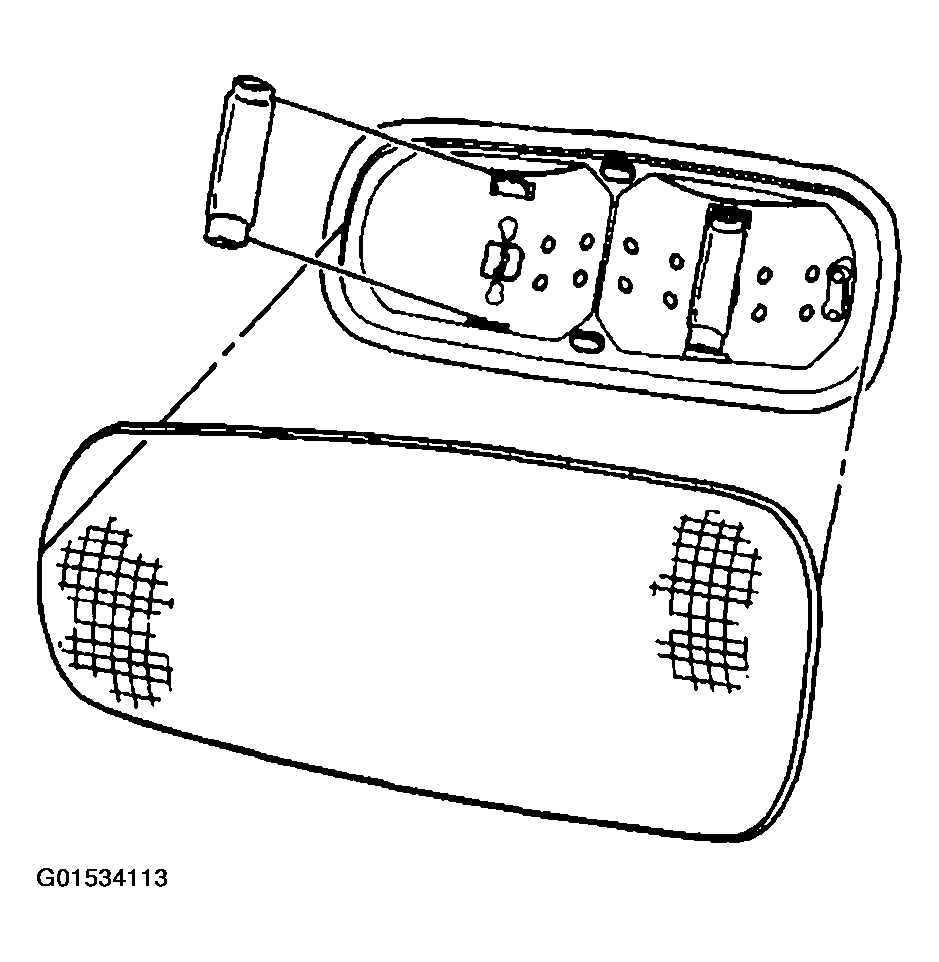

Fig 1: Installing Cargo Lamp Bulb And Lens To Cargo Lamp
Courtesy of GENERAL MOTORS CORP.
Install the cargo lamp to the headliner.
Snap the cargo lamp into place.

Fig 2: Connecting Cargo Lamp Connectors
Courtesy of GENERAL MOTORS CORP.
