Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the speaker being replaced with the opening in the instrument panel upper trim panel.
    NOTE: Refer to FASTENER NOTICE .

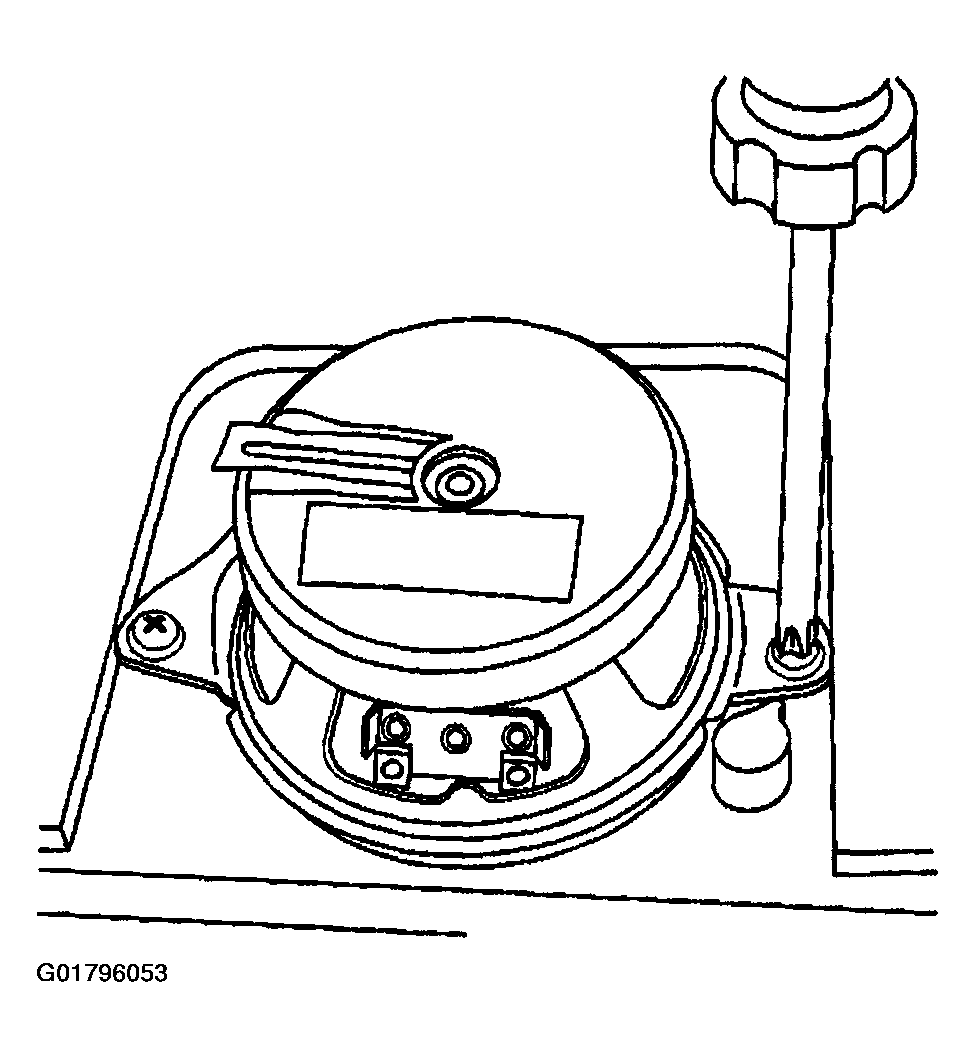

    2. Fig 1: View Of Front Speaker
    G01796053Courtesy of GENERAL MOTORS CORP.
  2. Install the speaker fasteners.

    Tighten

    Tighten the fasteners to 1.8 N.m (16 lb in).

  3. Connect the speaker electrical connector.
  4. Install the instrument panel upper trim panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) .
