Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Install the radio amplifier to the vehicle.
Install the radio amplifier connectors to the radio amplifier.
NOTE: Refer to FASTENER NOTICE .

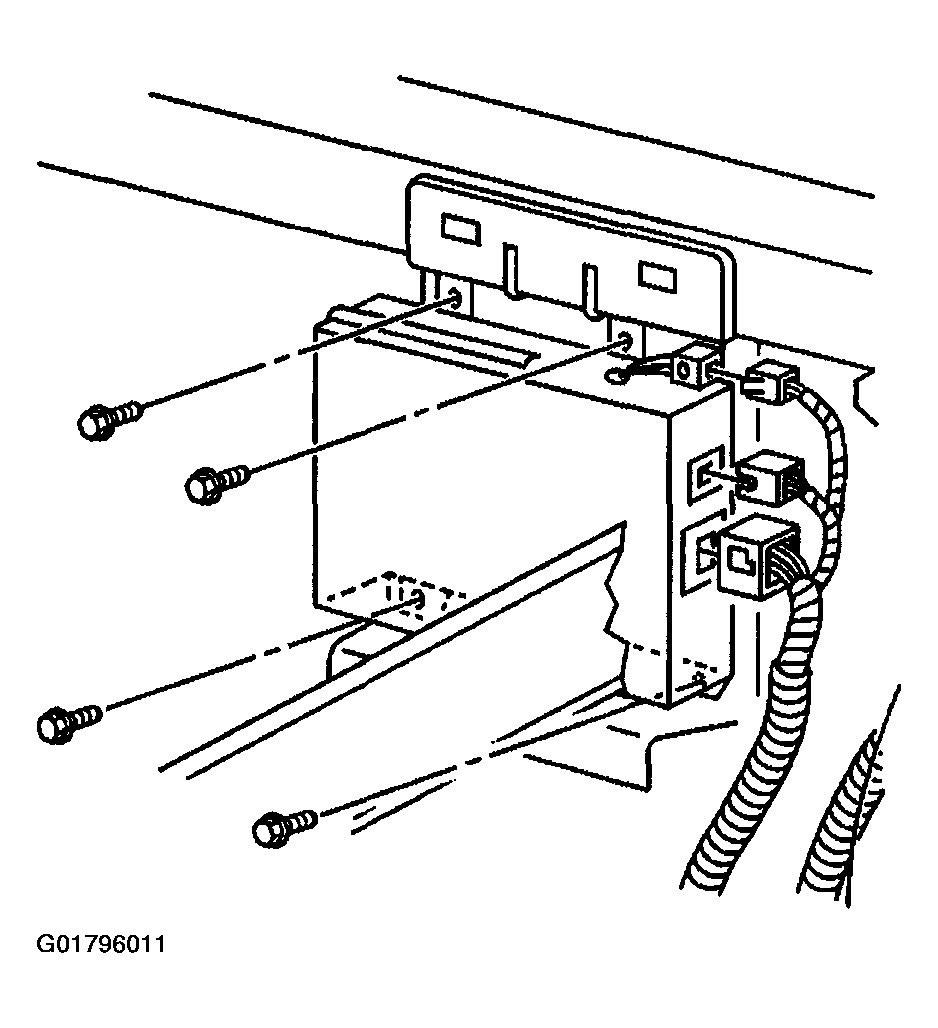

Fig 1: Installing Radio Amplifier

Courtesy of GENERAL MOTORS CORP.

Install the radio amplifier fasteners.
Tighten

Tighten the fasteners to 9 N.m (80 lb in).
Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
