Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Remove the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the left and right stabilizer shaft insulators and brackets. Refer to Stabilizer Shaft Insulator Replacement .

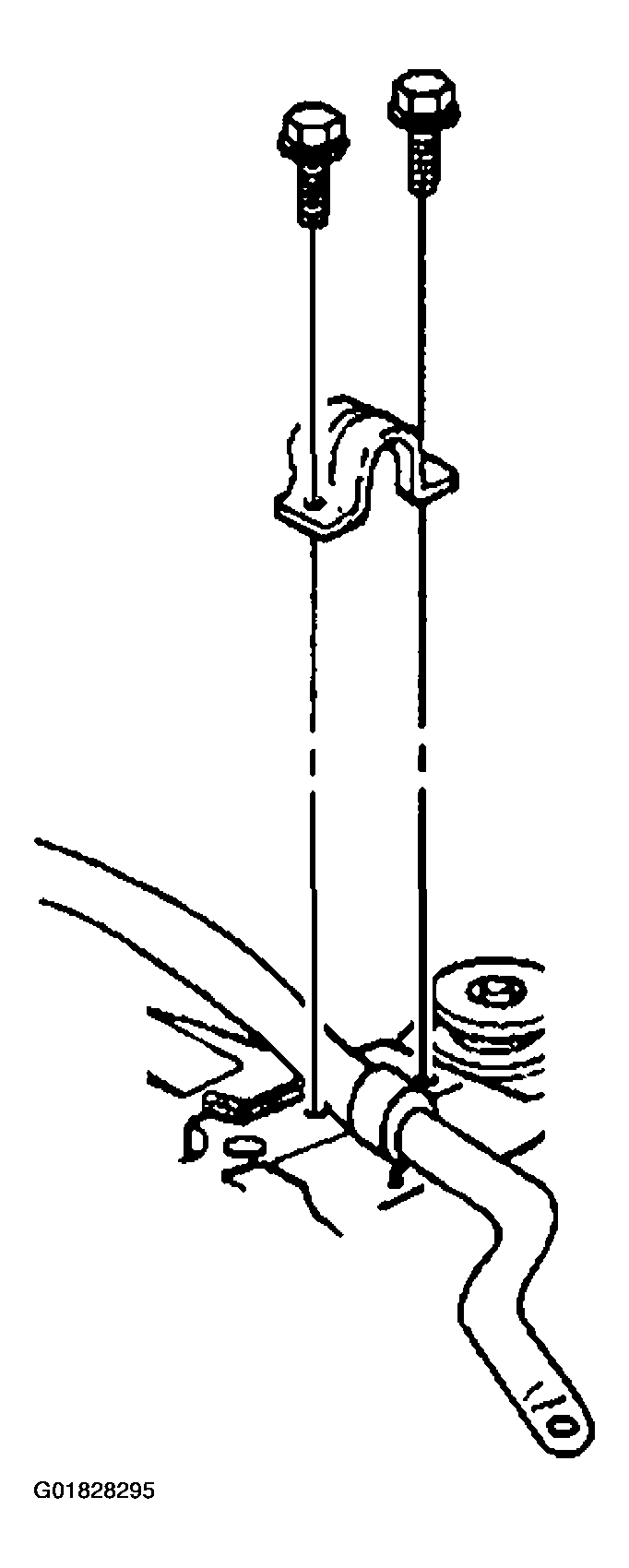

    Fig 1: Removing Left/Right Stabilizer Shaft Insulators & Brackets
    G01828295Courtesy of GENERAL MOTORS CORP.
  4. Remove the left and right stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement .
  5. Remove the stabilizer shaft from the left side of the vehicle.

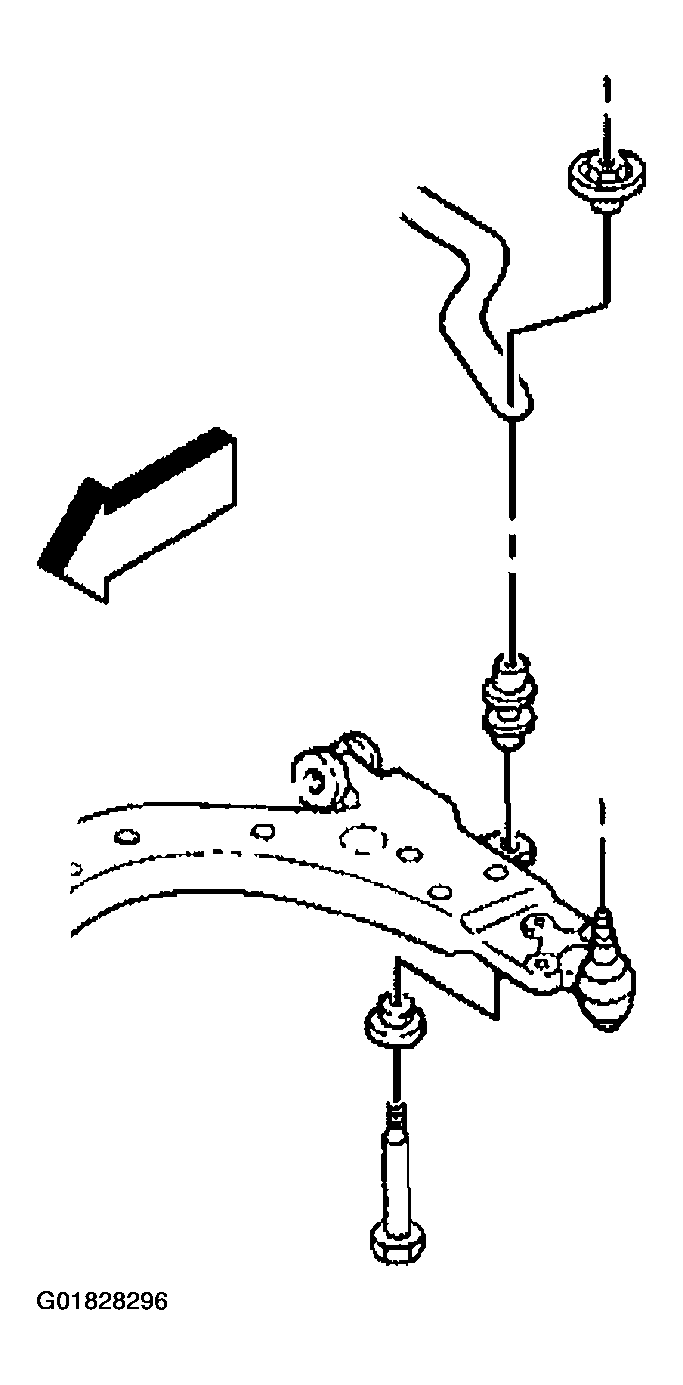

    Fig 2: Removing Left/Right Stabilizer Shaft Links
    G01828296Courtesy of GENERAL MOTORS CORP.
