Installation Procedure

  1. Install the left and right side stabilizer shaft insulators (1) to the stabilizer shaft (2).

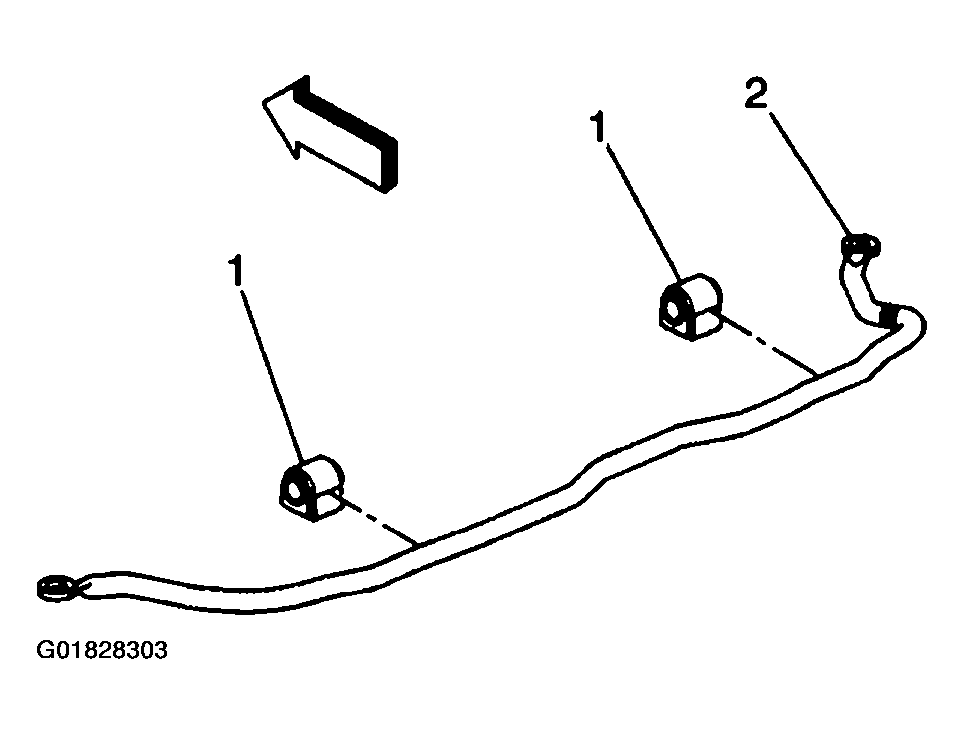

    Fig 1: Installing Left/Right Side Stabilizer Shaft Insulators
    G01828303Courtesy of GENERAL MOTORS CORP.
  2. Install the left and right side stabilizer shaft insulator brackets.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the left and right side stabilizer shaft insulator bracket bolts.

    Tighten

    Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).

  4. Lower the vehicle.

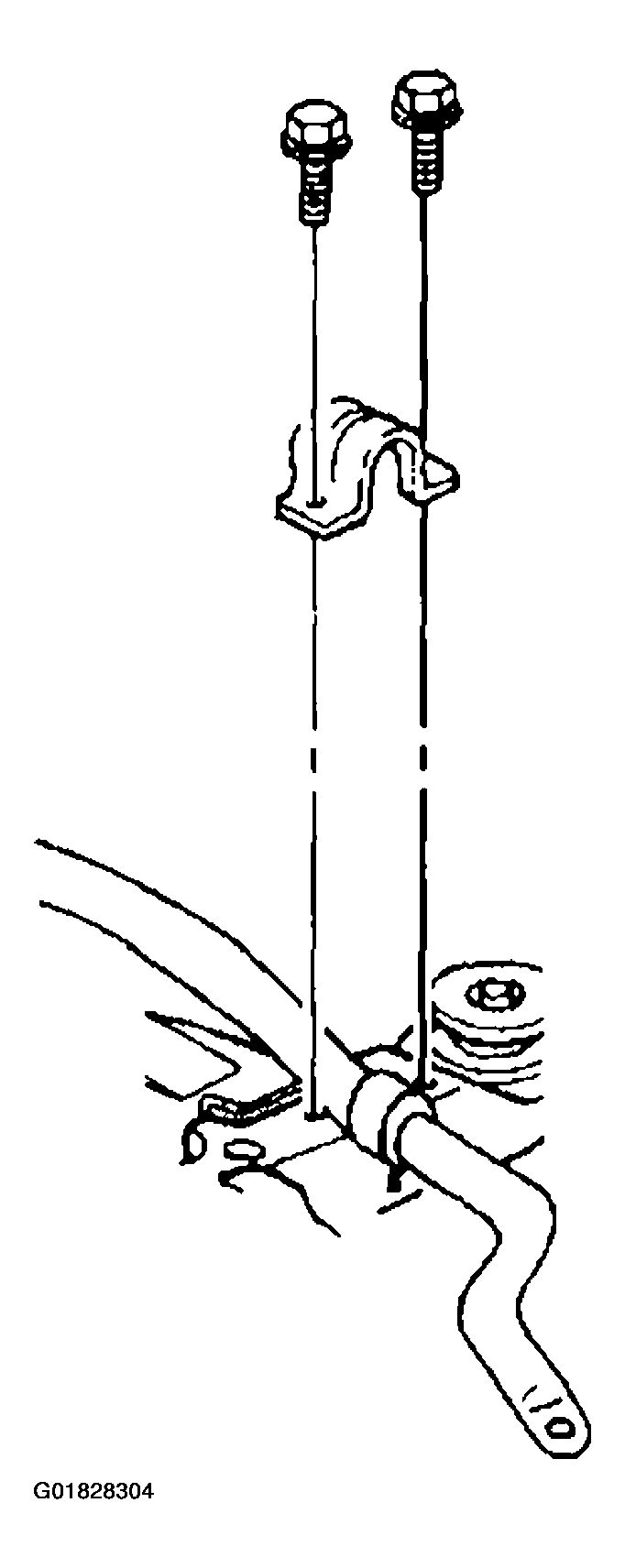

    Fig 2: Installing Left/Right Side Stabilizer Shaft Insulator Bracket & Bolts
    G01828304Courtesy of GENERAL MOTORS CORP.
