Removal Procedure

    Fig 1: Inflator Control Panel
    G01828516Courtesy of GENERAL MOTORS CORP.
  1. Remove the ELC/TRAILER fuse.
  2. Remove the inflator air valve opening cover by pulling the lever inboard.
  3. Remove the inflator control panel retainers.
  4. Remove the bolts/screws from the inflation timer relay.

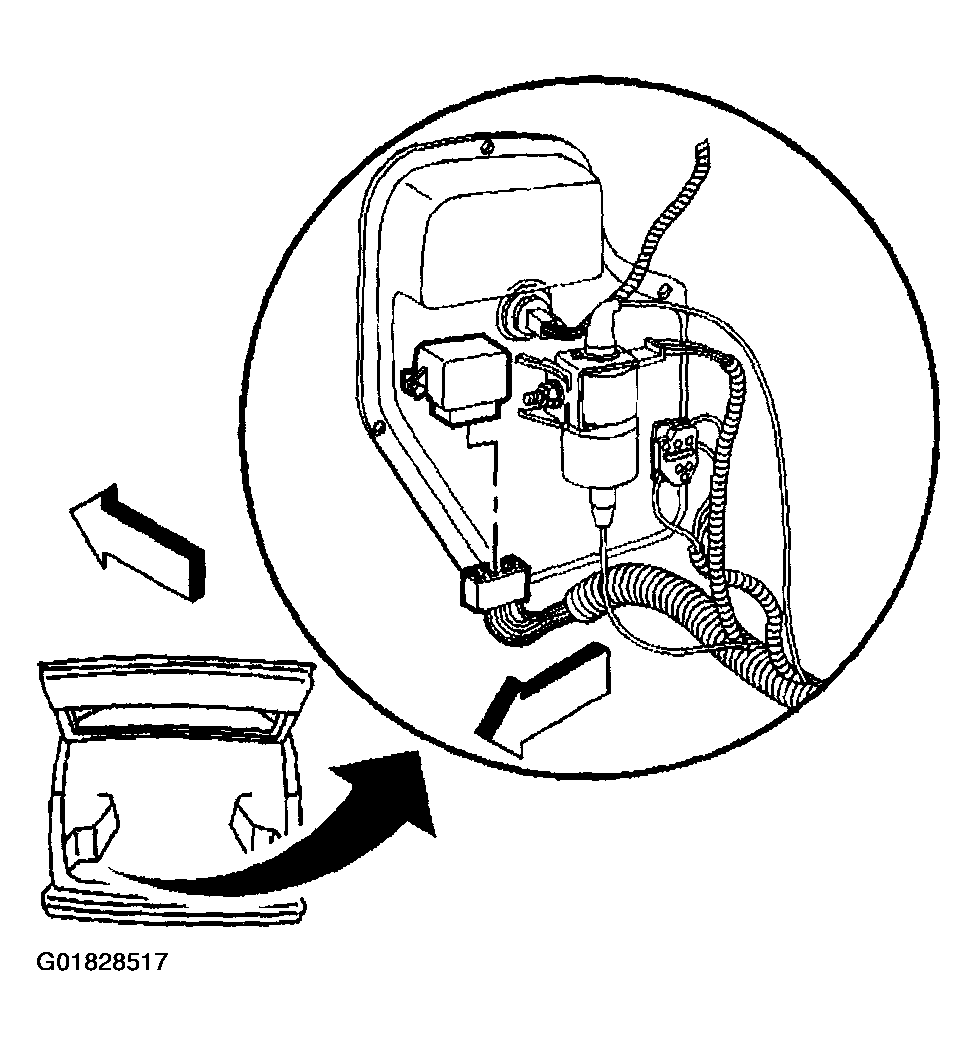

    5. Fig 2: Electrical Connector For Inflation Timer Relay
    G01828517Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the inflation timer relay.
