Installation Procedure

Important  : Replace any clips which you have removed from the vehicle with new clips.

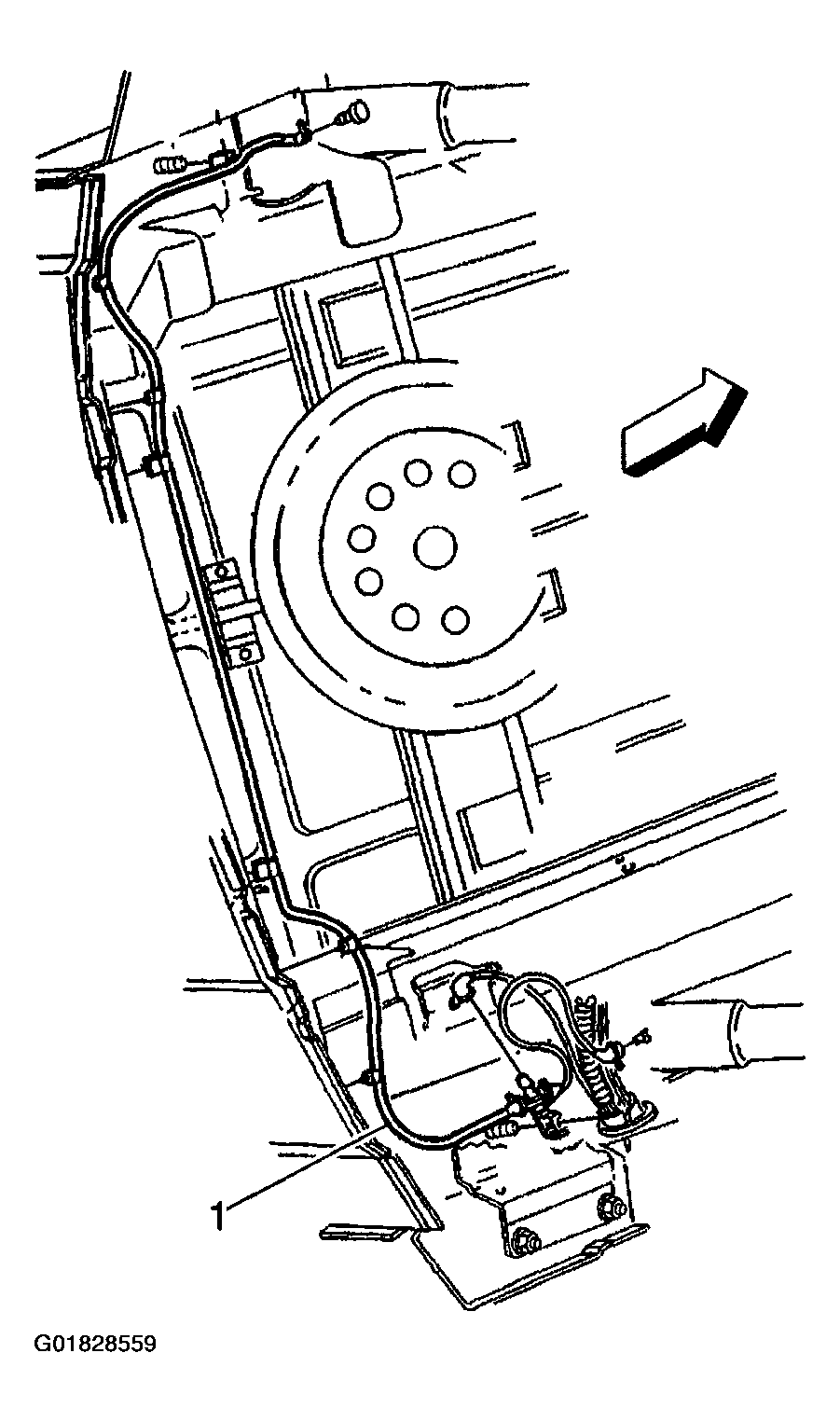

Fig 1: Air Tube
Courtesy of GENERAL MOTORS CORP.
1. Install the clips to the vehicle.
2. Install the air line (1) to the right shock absorber.
3. Install the air line (1) to the left shock absorber.
4. Lower the vehicle.
5. Remove the ELC/TRAILER fuse.
