Automatic Level Control Compressor Motor Runs, then Stops

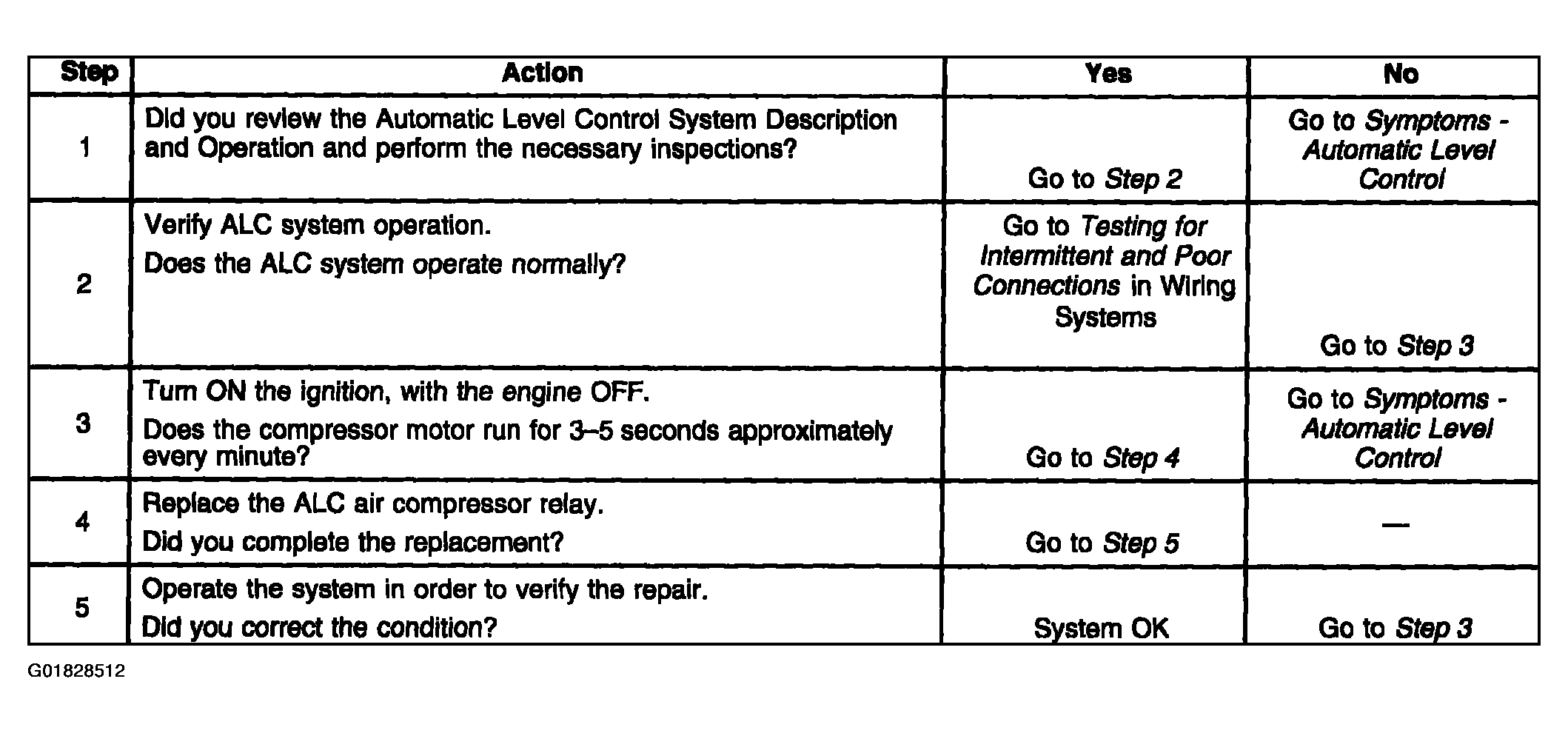

Fig 1: Automatic Level Control Compressor Motor Runs, Then Stops

G01828512

Courtesy of GENERAL MOTORS CORP.
