Video Disc Player Connector End View

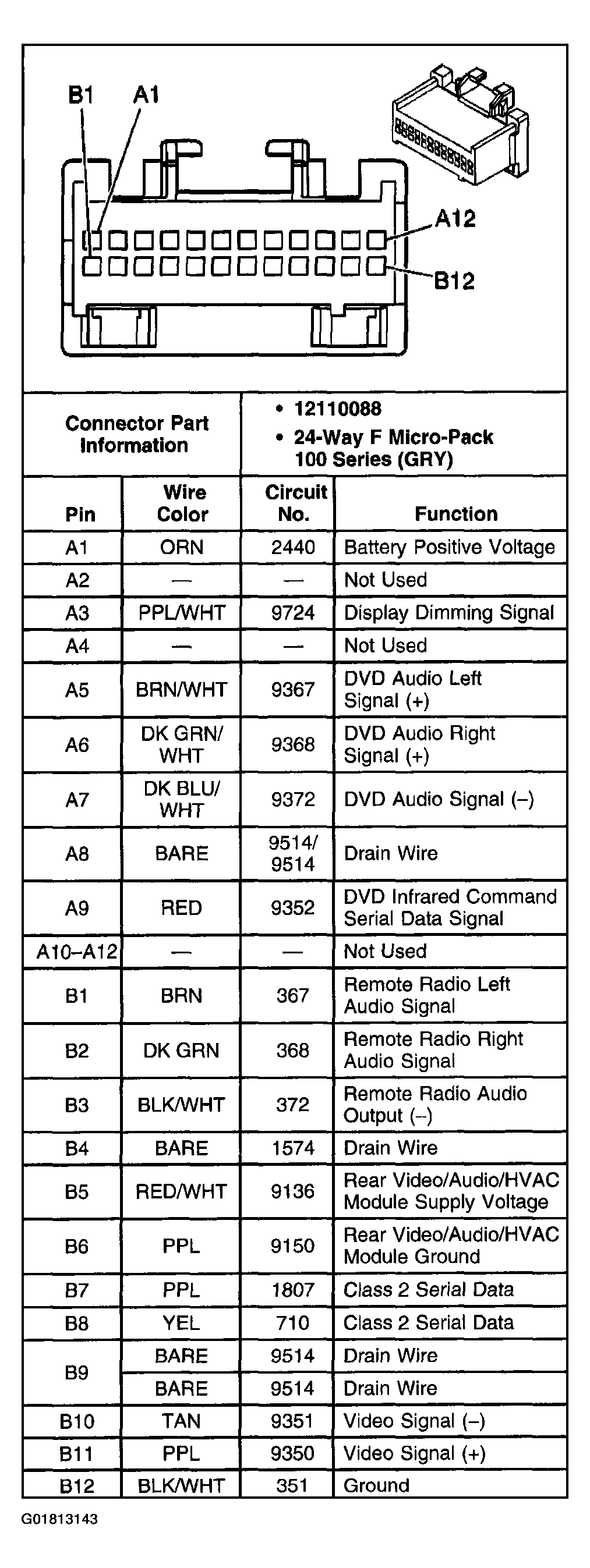

Fig 1: Video Disc Player

G01813143

Courtesy of GENERAL MOTORS CORP.
