Turn Signal/Hazard Flasher Connector End View

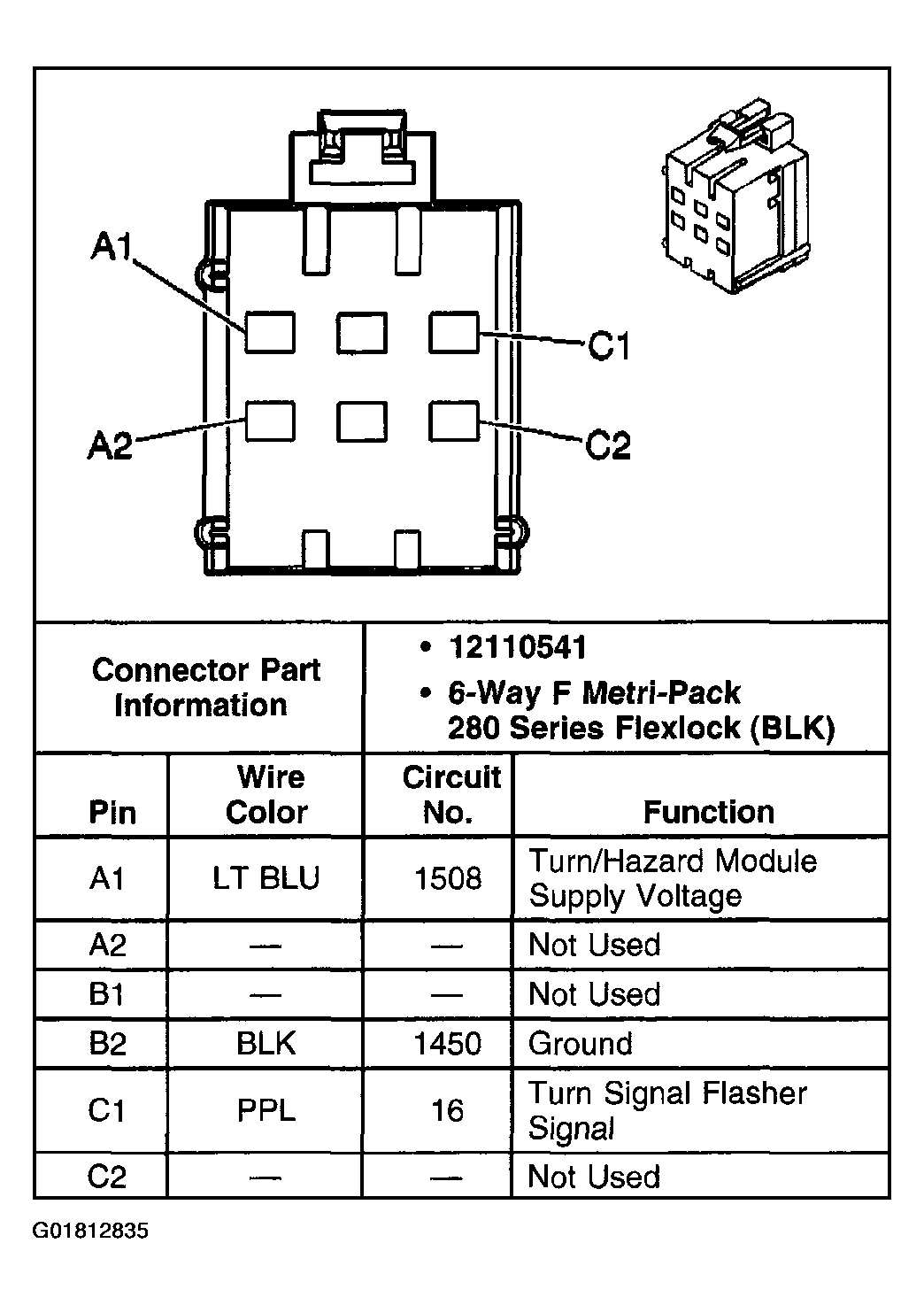

Fig 1: Turn Signal/Hazard Flasher

G01812835

Courtesy of GENERAL MOTORS CORP.
