Stop Lamp Switch Connector End View C1

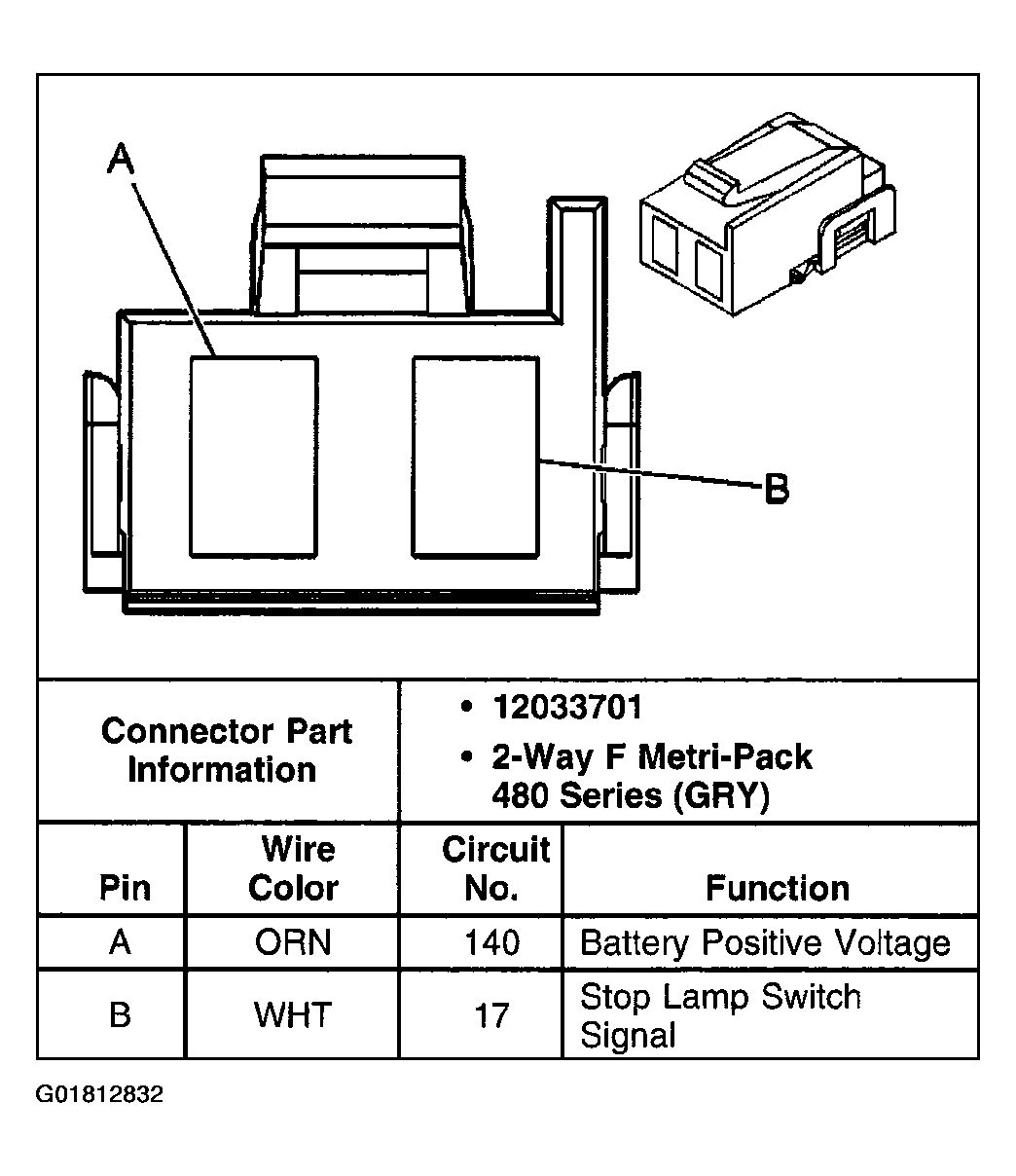

Fig 1: Stop Lamp Switch C1

G01812832

Courtesy of GENERAL MOTORS CORP.
