Side Impact Sensor Connector End View - Left

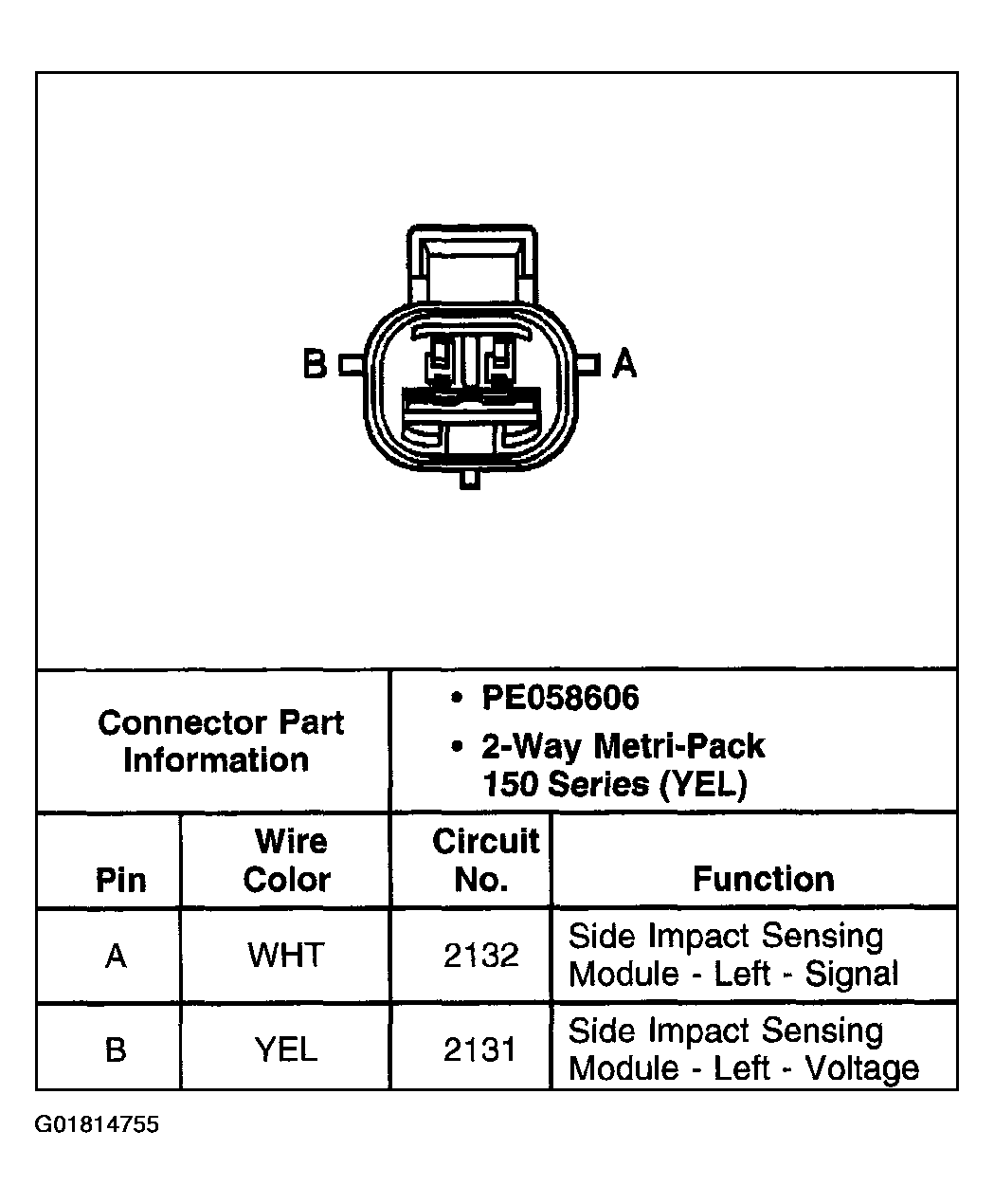

Fig 1: Side Impact Sensor - Left

G01814755

Courtesy of GENERAL MOTORS CORP.
