Rear Video/Audio/HVAC Module Connector End View - C3

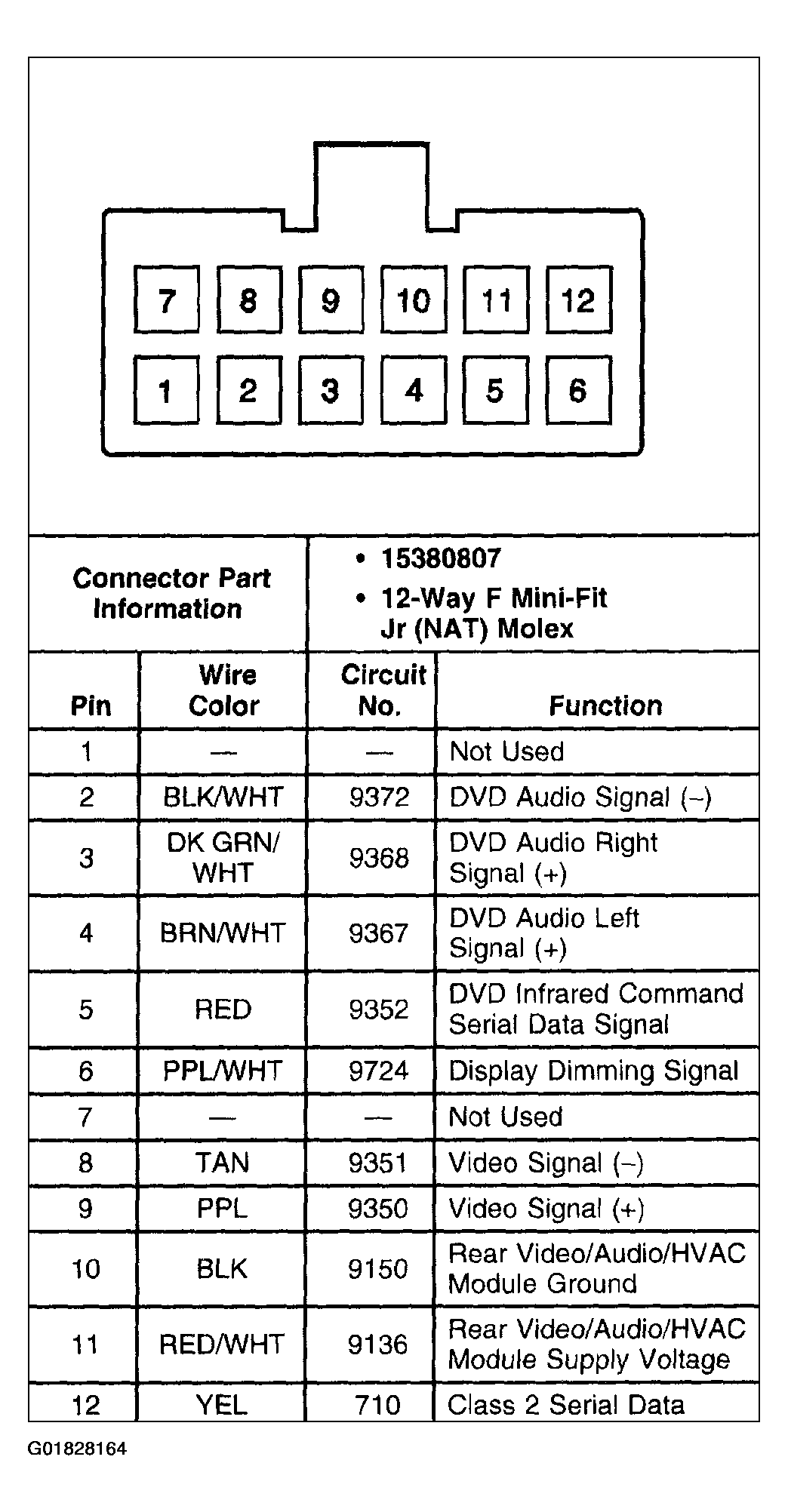

Fig 1: Rear Video/Audio/HVAC Module - C3

G01828164

Courtesy of GENERAL MOTORS CORP.

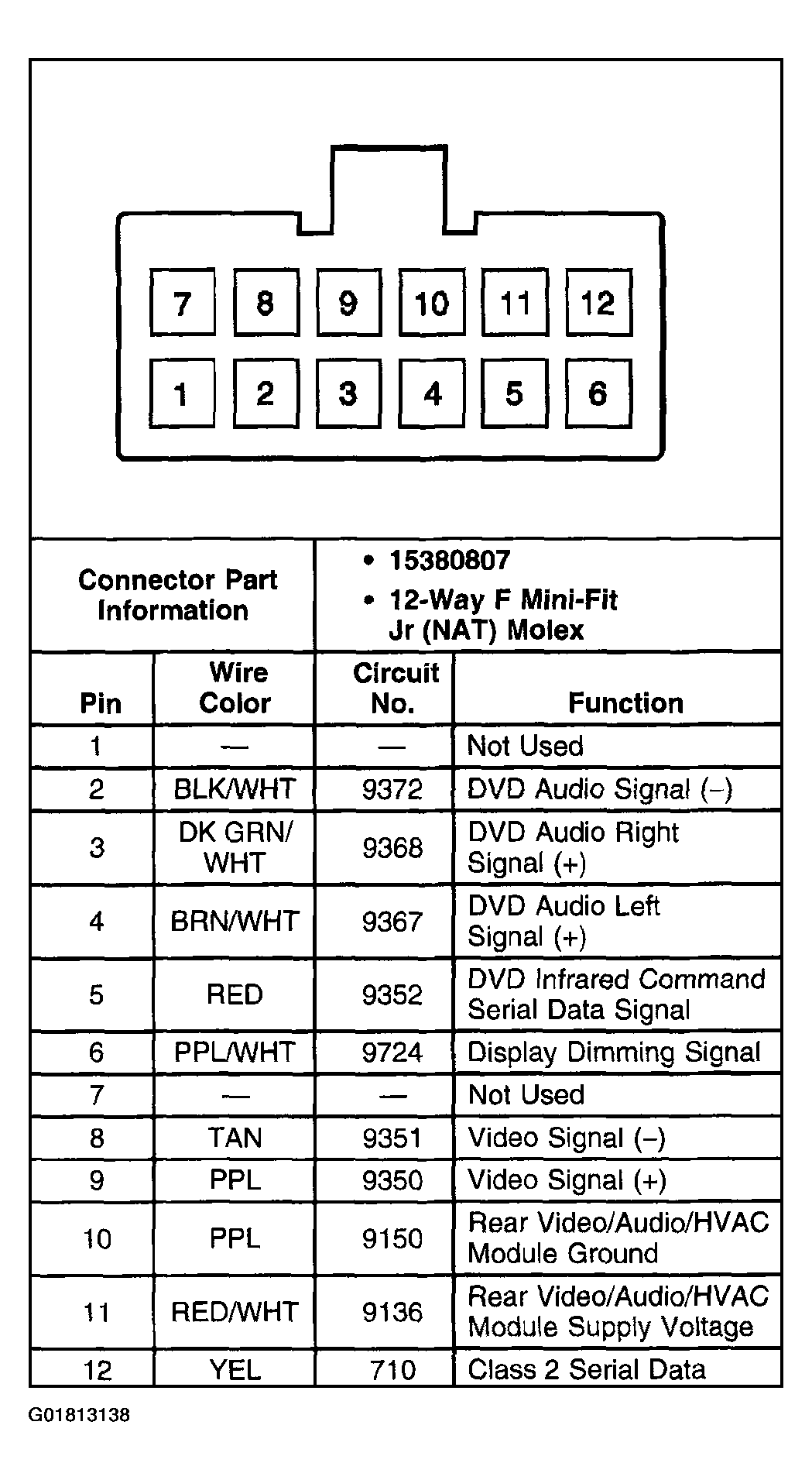

Fig 1: Rear Video/Audio/HVAC Module - C3

G01813138

Courtesy of GENERAL MOTORS CORP.
