Rear Video/Audio/HVAC Module Connector End View - C2
Rear Video/Audio/HVAC Module Connector End View - C2

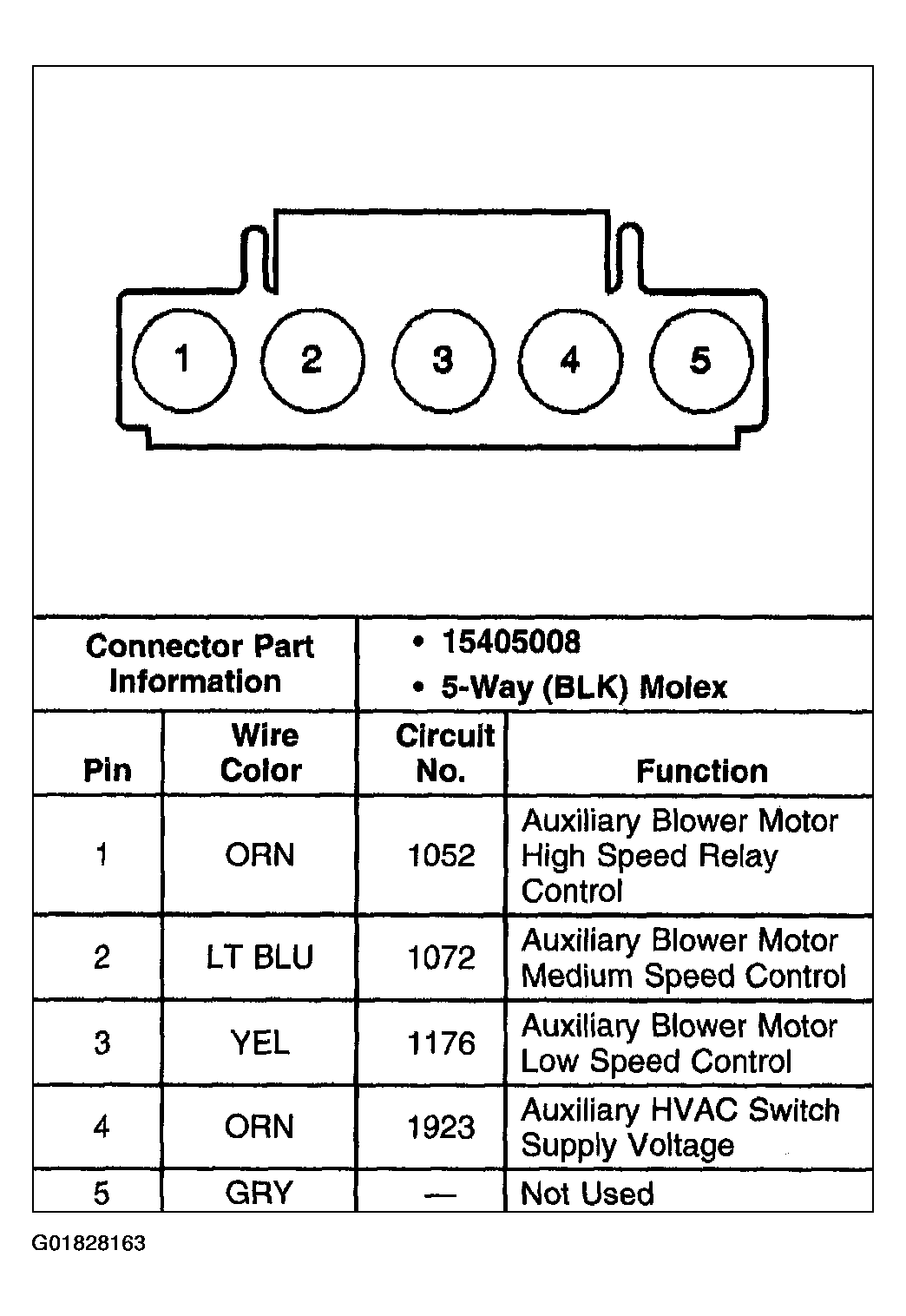

Fig 1: Rear Video/Audio/HVAC Module - C2
Courtesy of GENERAL MOTORS CORP.

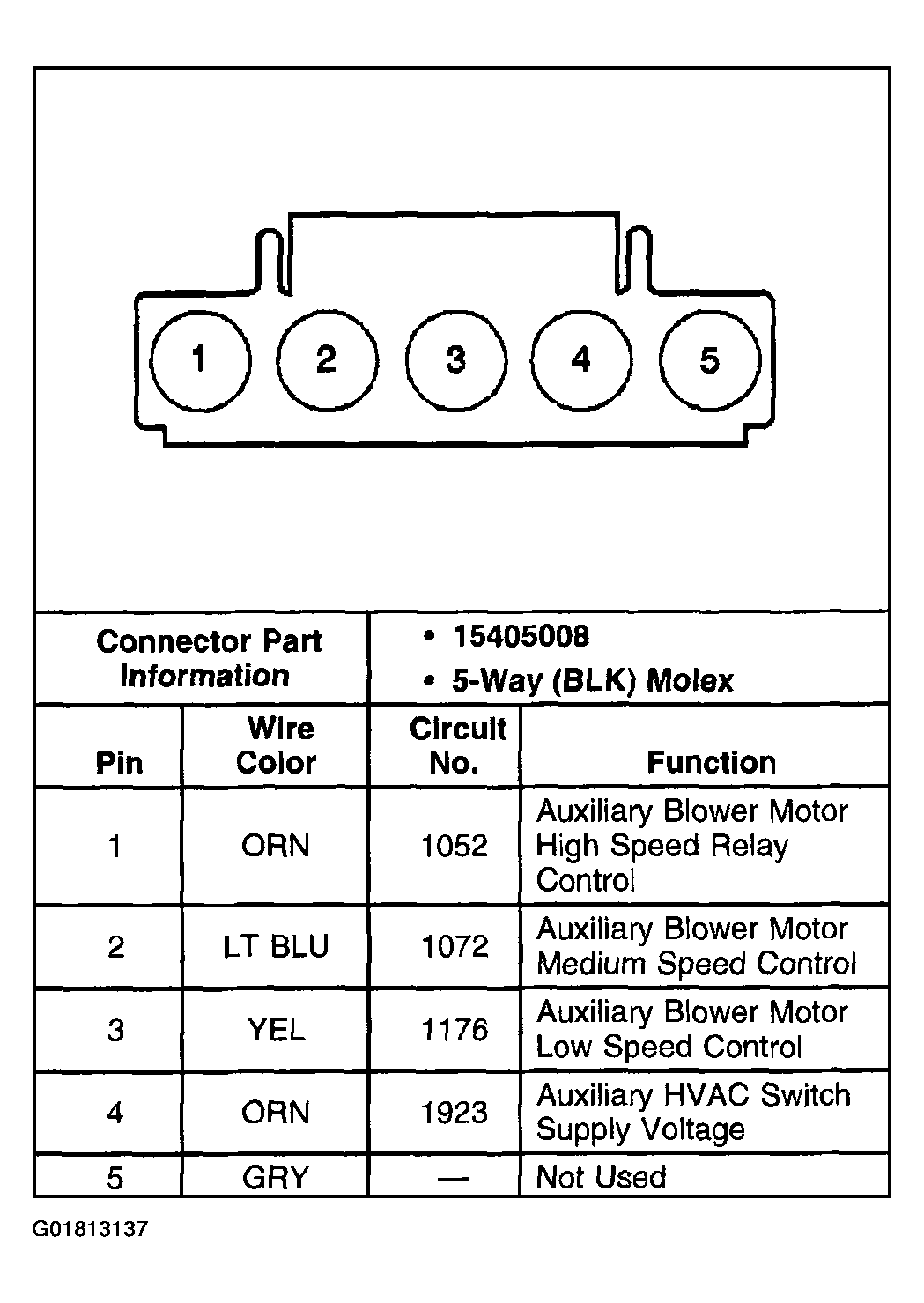

Fig 1: Rear Video/Audio/HVAC Module - C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
