Evaporative Temperature Sensor Connector End View

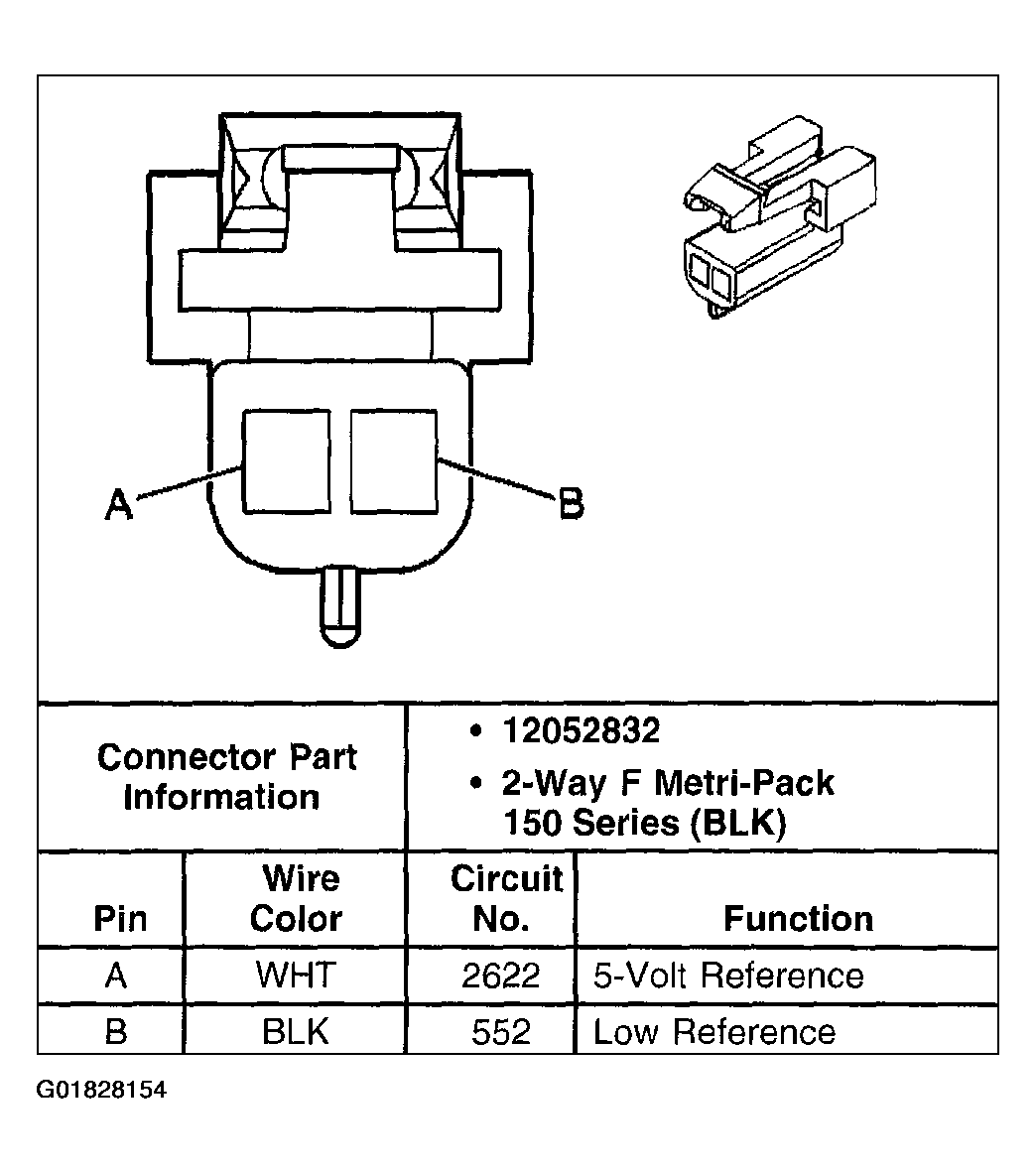

Fig 1: Evaporative Temperature Sensor

G01828154

Courtesy of GENERAL MOTORS CORP.
