Blower Motor Resistor Assembly Connector End View

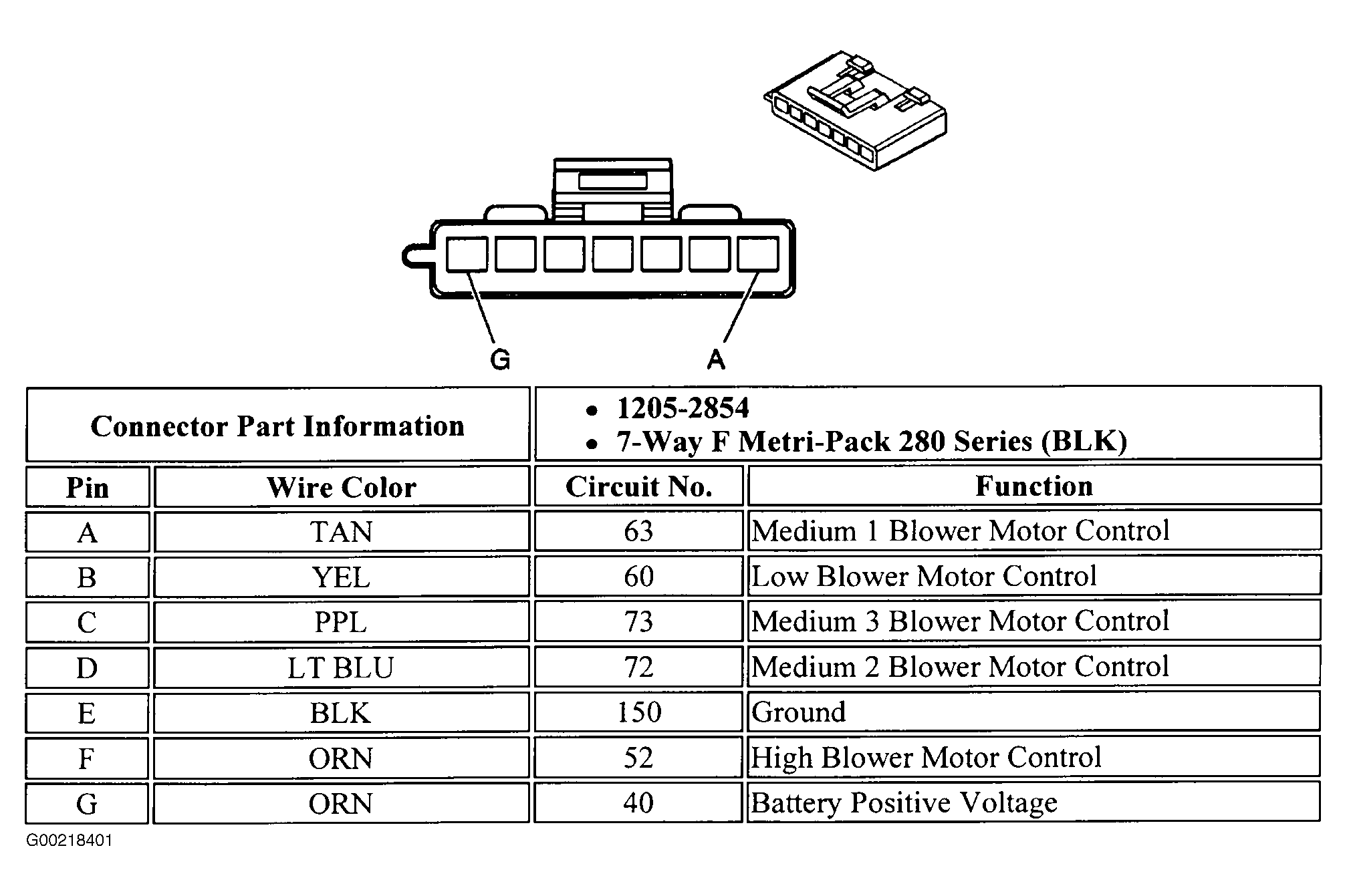

Fig 1: Blower Motor Resistor Assembly

G00218401

Courtesy of GENERAL MOTORS CORP.

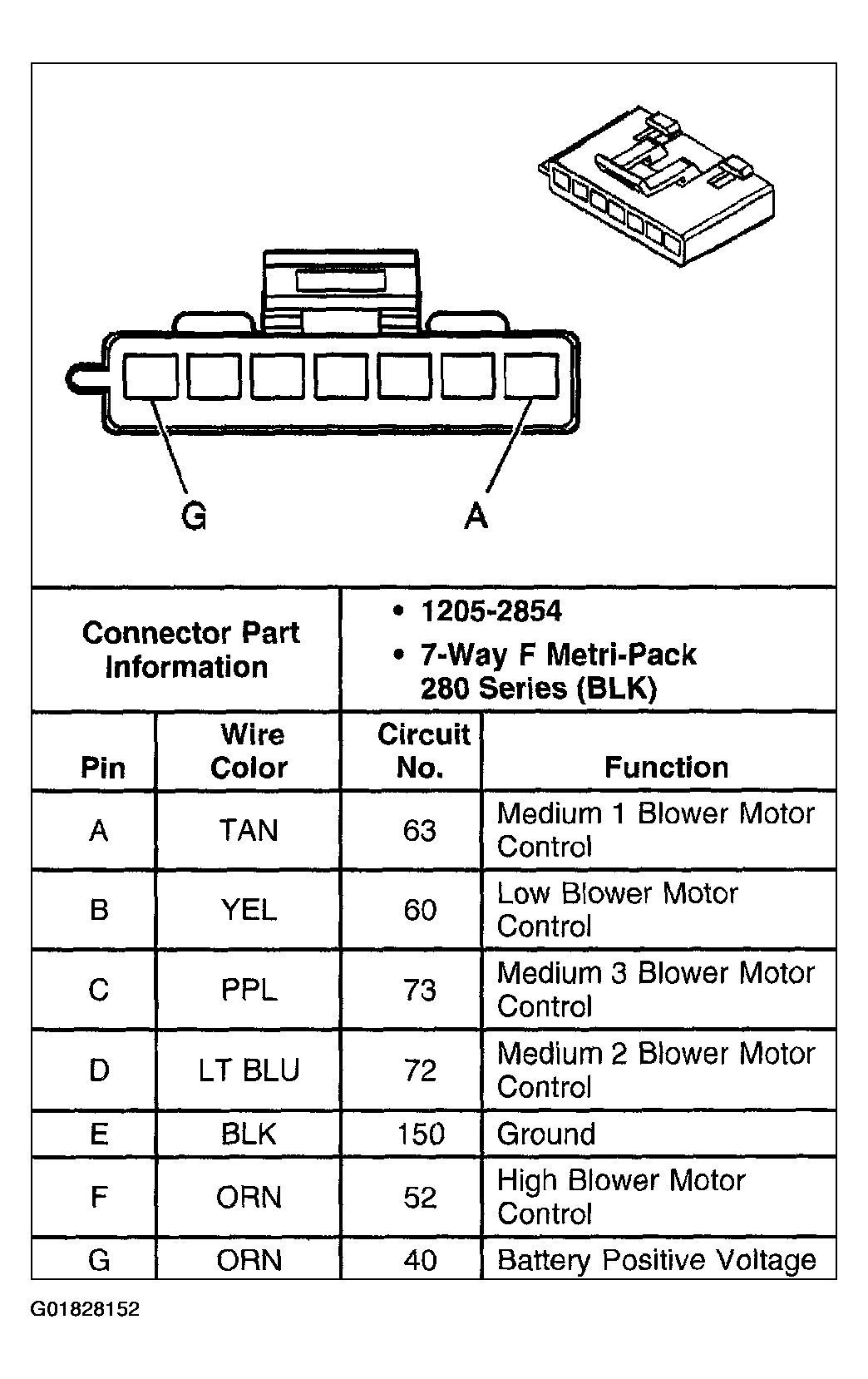

Fig 1: Blower Motor Resistor Assembly

G01828152

Courtesy of GENERAL MOTORS CORP.
