Auto Level Control (ALC) Air Compressor Connector End View - Without Inflator
Auto Level Control (ALC) Air Compressor Connector End View - Without Inflator

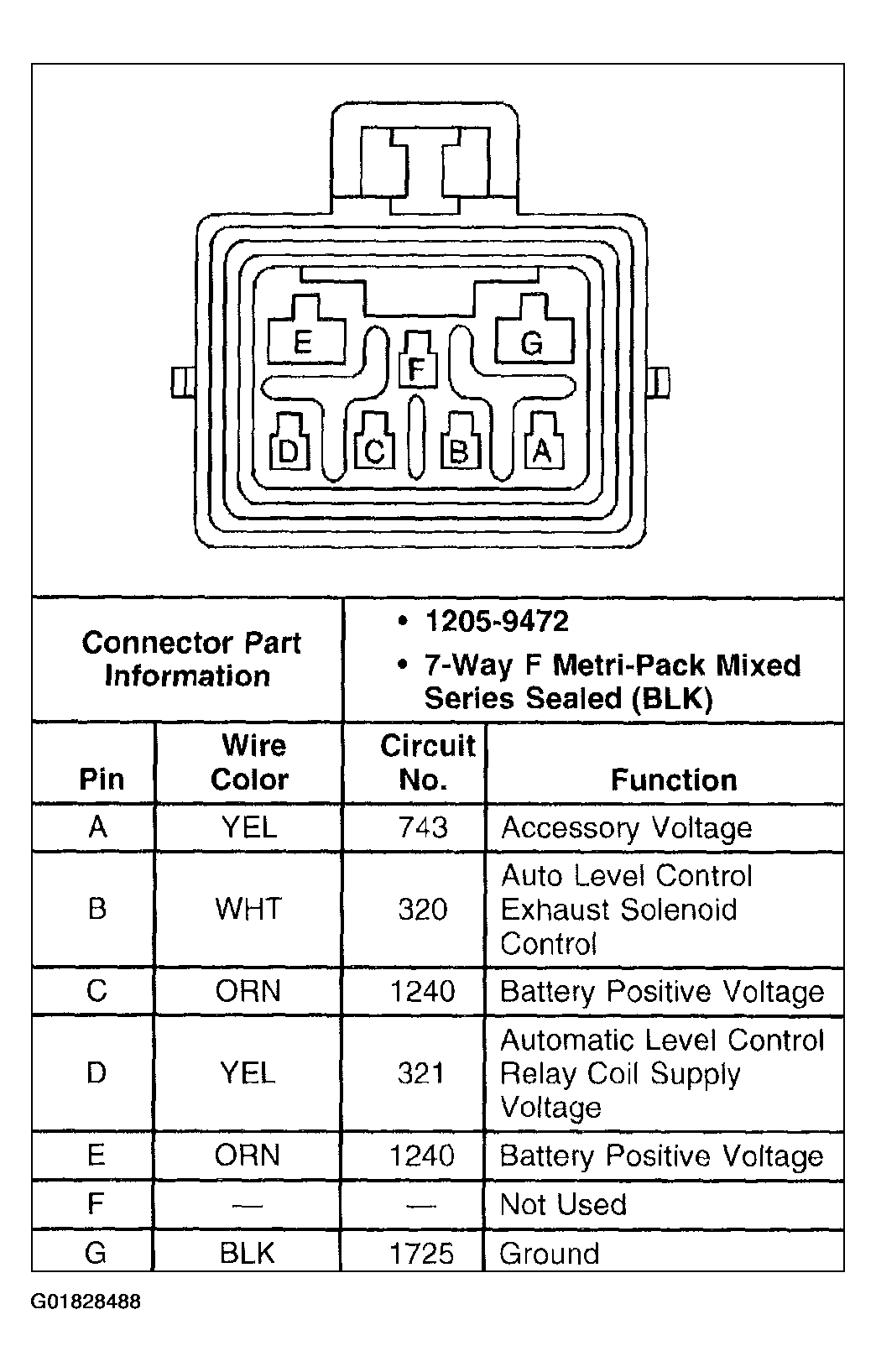

Fig 1: Auto Level Control (ALC) Air Compressor - Without Inflator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
