Ambient Air Temperature Sensor Connector End View

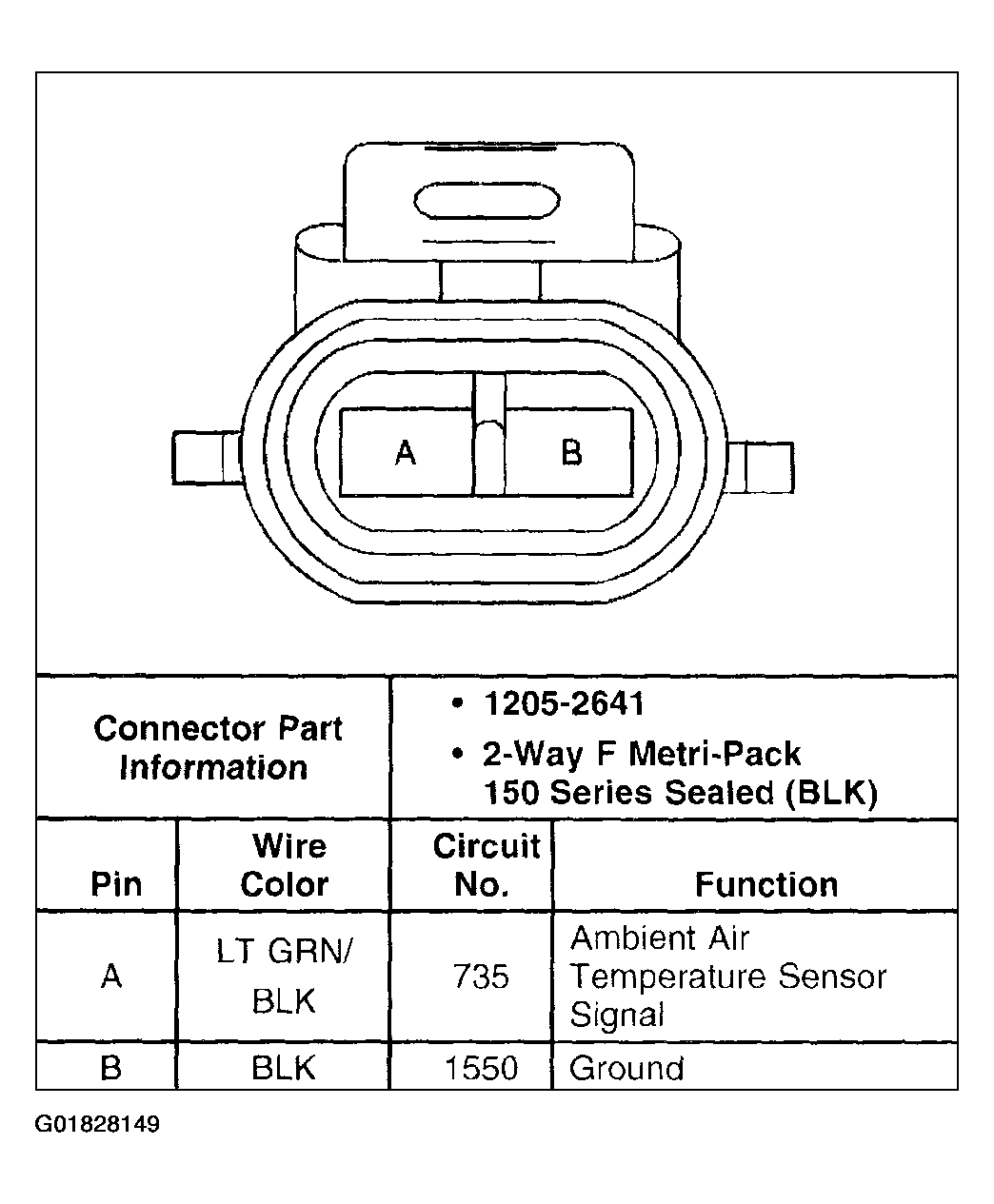

Fig 1: Ambient Air Temperature Sensor

G01828149

Courtesy of GENERAL MOTORS CORP.

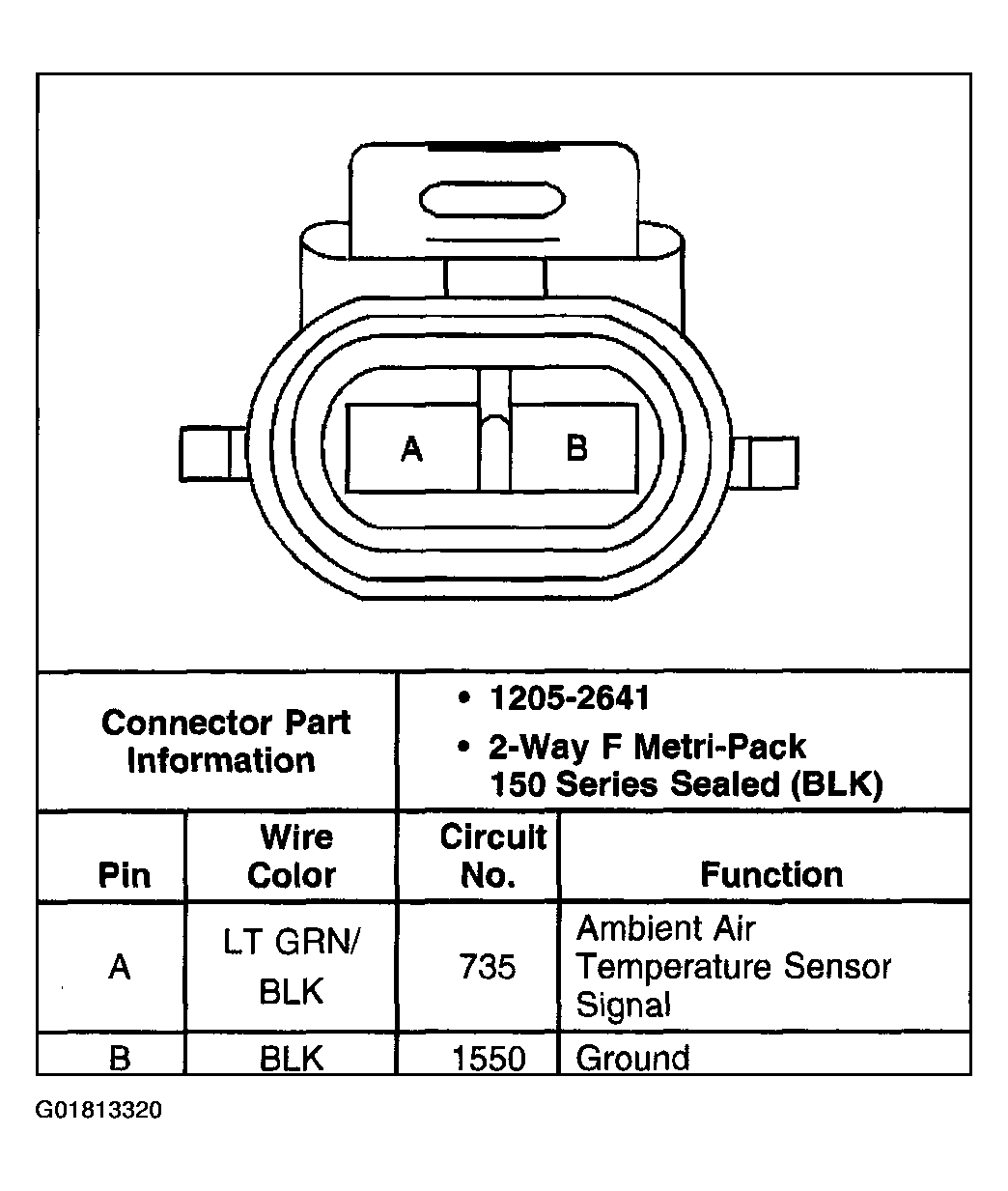

Fig 1: Ambient Air Temperature Sensor

G01813320

Courtesy of GENERAL MOTORS CORP.
