A/C Refrigerant Pressure Sensor Connector End View

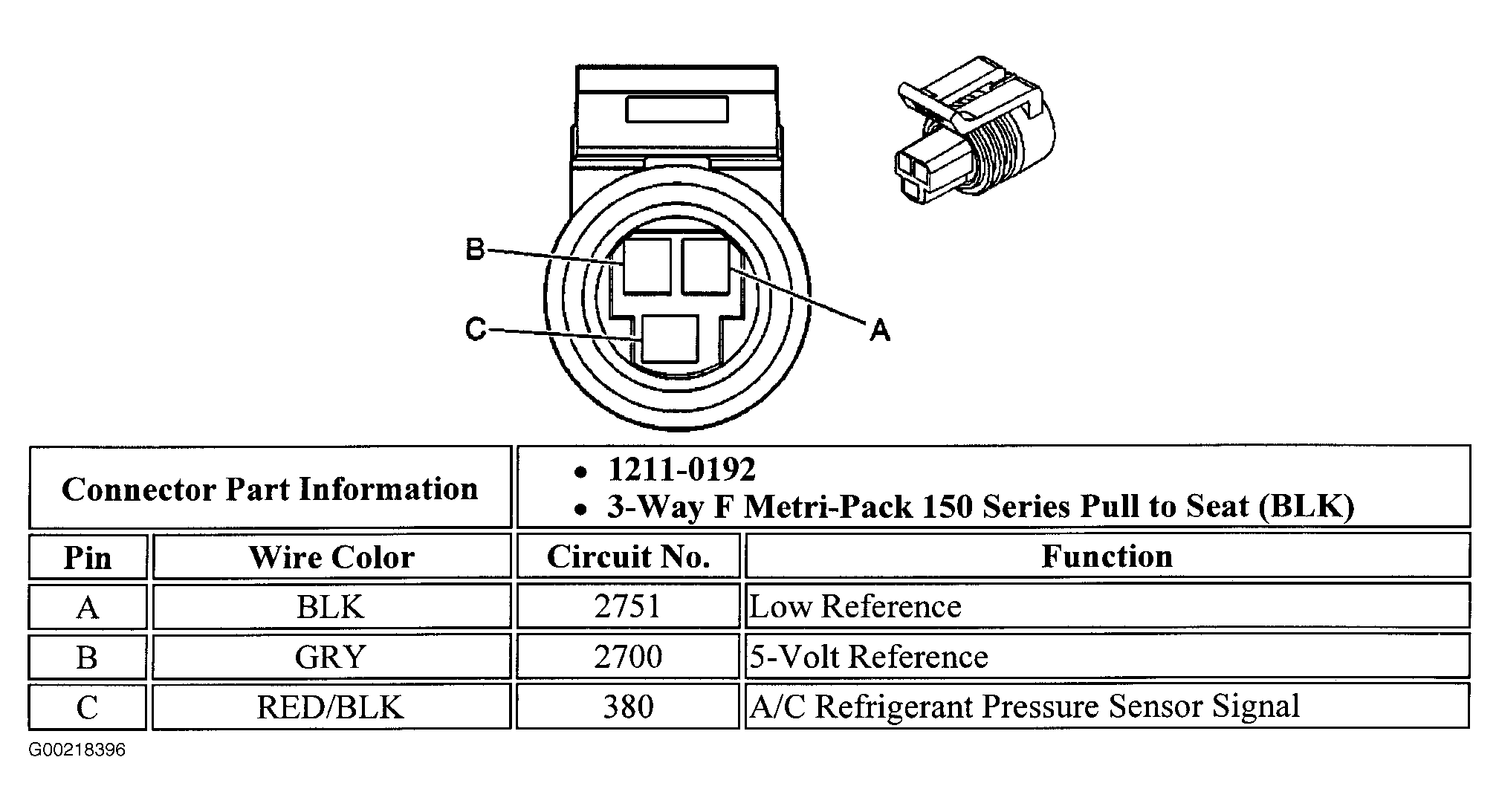

Fig 1: A/C Refrigerant Pressure Sensor

G00218396

Courtesy of GENERAL MOTORS CORP.

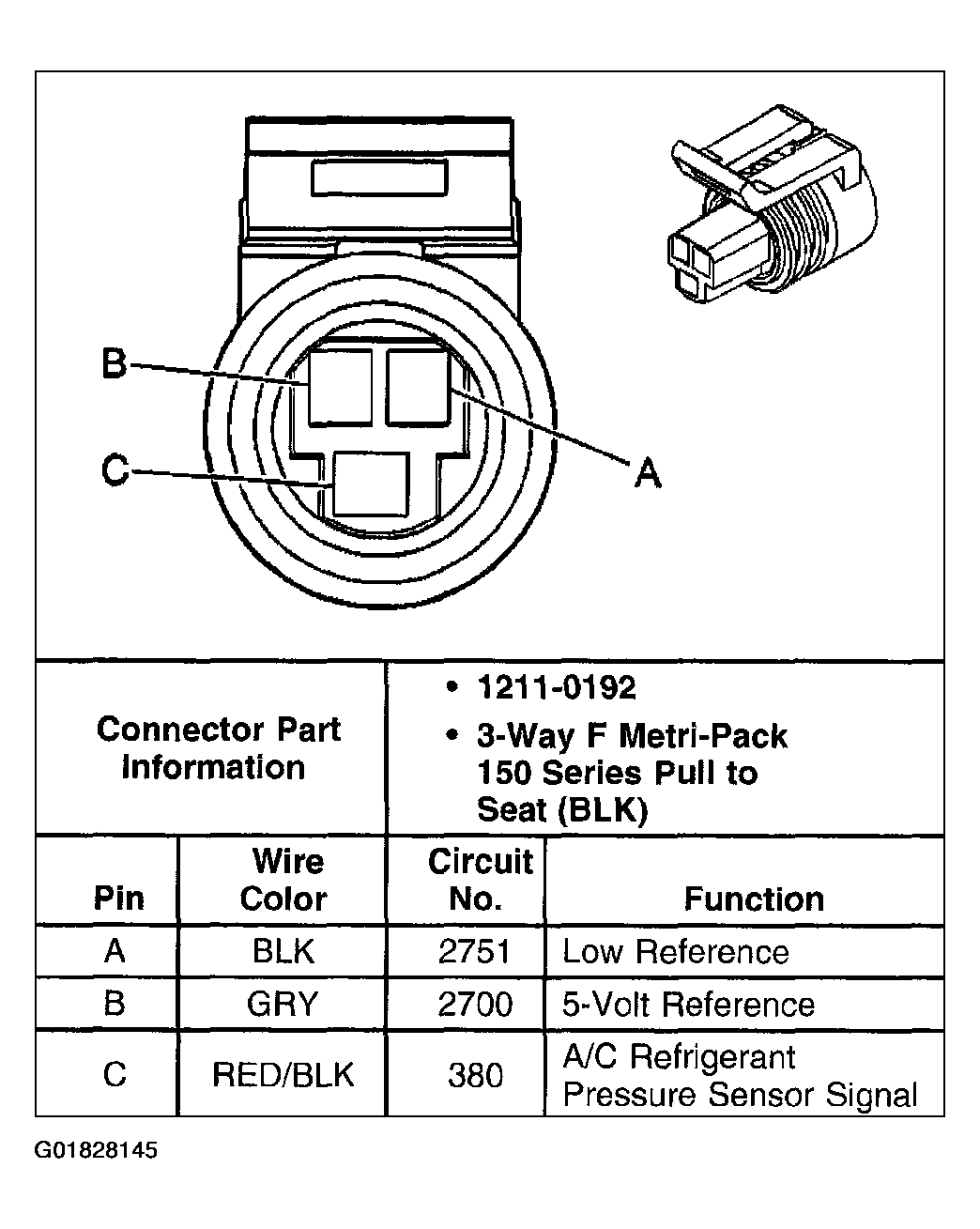

Fig 1: A/C Refrigerant Pressure Sensor

G01828145

Courtesy of GENERAL MOTORS CORP.
