Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the torque converter cover.
    NOTE: Refer to FASTENER NOTICE
  2. Install the torque converter cover bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Lower the vehicle.

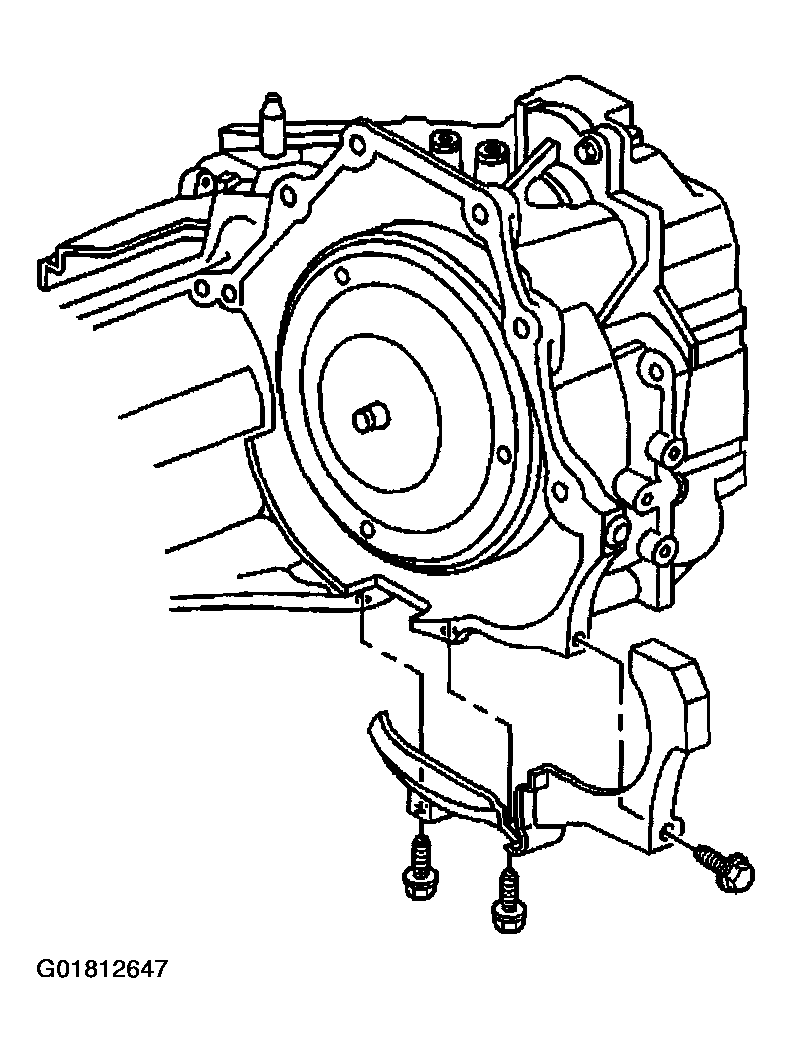

    Fig 1: Installing Torque Converter Cover & Bolts
    G01812647Courtesy of GENERAL MOTORS CORP.
