Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the fluid temperature sensor (391).
  2. Install the wiring harness assembly to the fluid temperature sensor (391).
  3. Install the case side cover. Refer to Case Side Cover Replacement  .

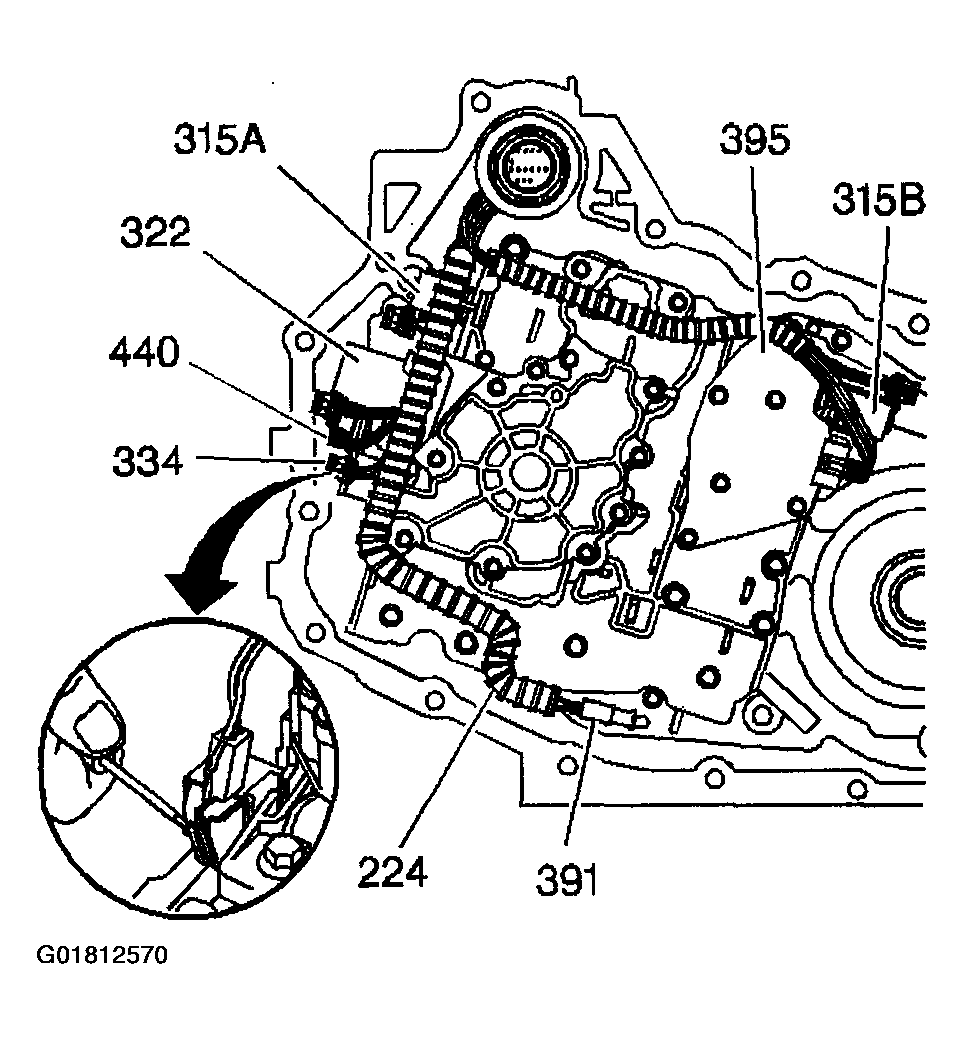

    Fig 1: Installing Fluid Temperature Sensor
    G01812570Courtesy of GENERAL MOTORS CORP.
