Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Properly route the automatic transaxle range selector cable through the engine compartment.

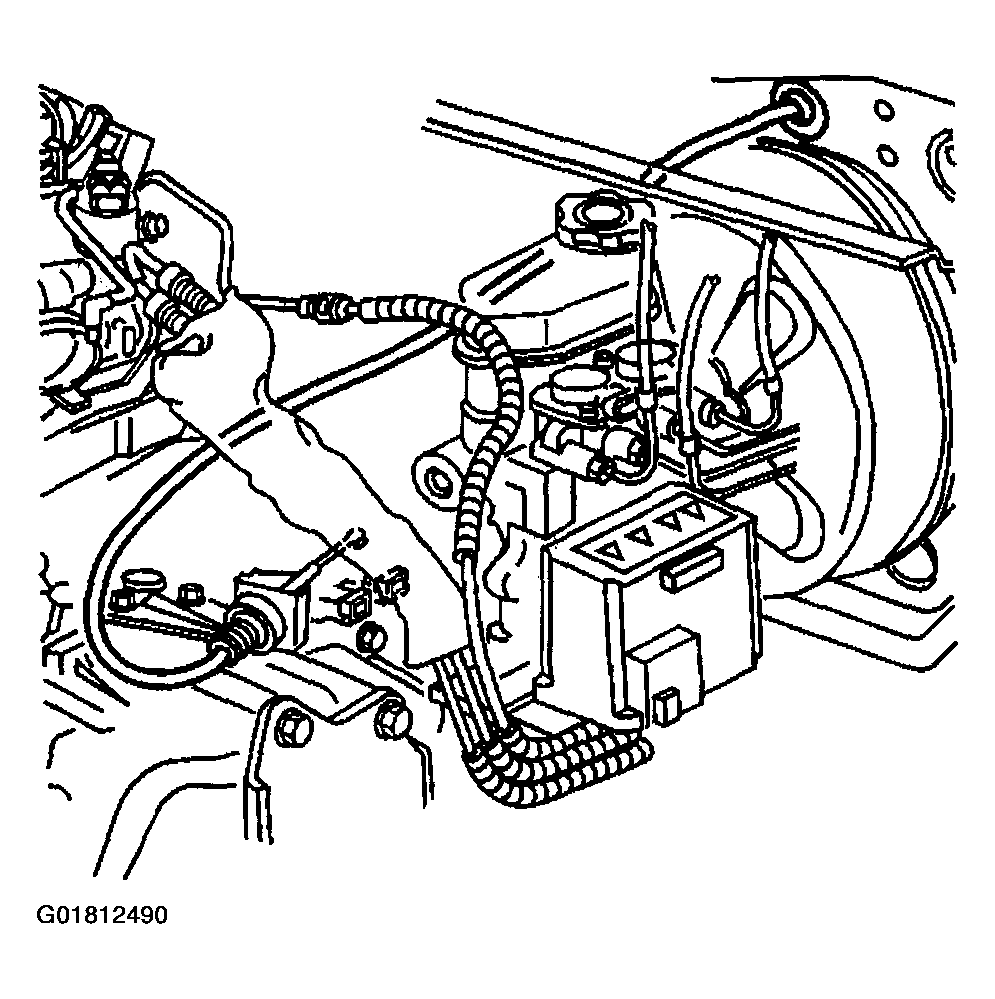

    Fig 1: Automatic Transaxle Range Selector Cable & Engine Compartment
    G01812490Courtesy of GENERAL MOTORS CORP.
  2. Install the automatic transaxle range selector cable through the cowl.

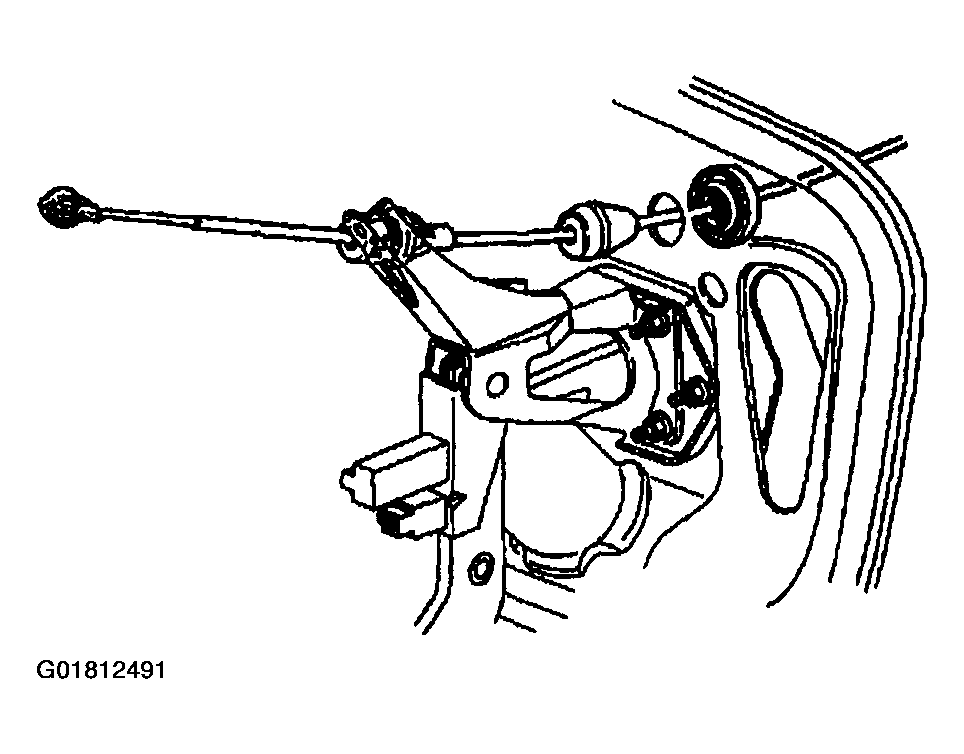

    Fig 2: Installing Automatic Transaxle Range Selector Cable & Cowl
    G01812491Courtesy of GENERAL MOTORS CORP.
  3. Install the automatic transaxle range selector cable to the steering column bracket.

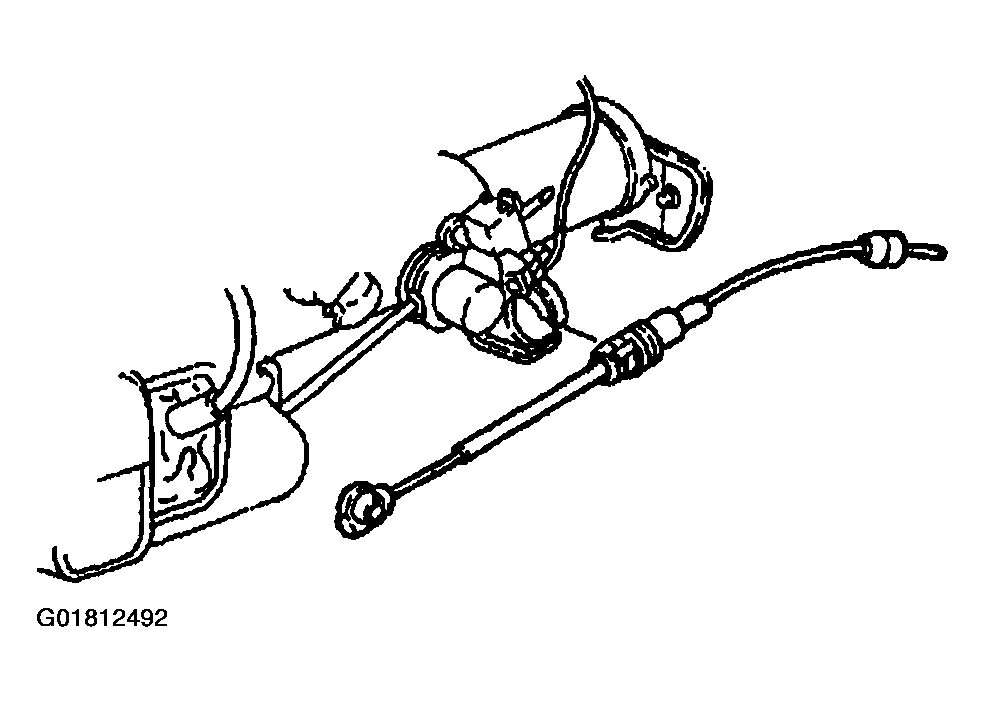

    Fig 3: Installing Automatic Transaxle Range Selector Cable & Steering Column Bracket
    G01812492Courtesy of GENERAL MOTORS CORP.
  4. Install the retaining clip to the automatic transaxle range selector cable.
  5. Install the automatic transaxle range selector cable to the column control lever.
  6. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .

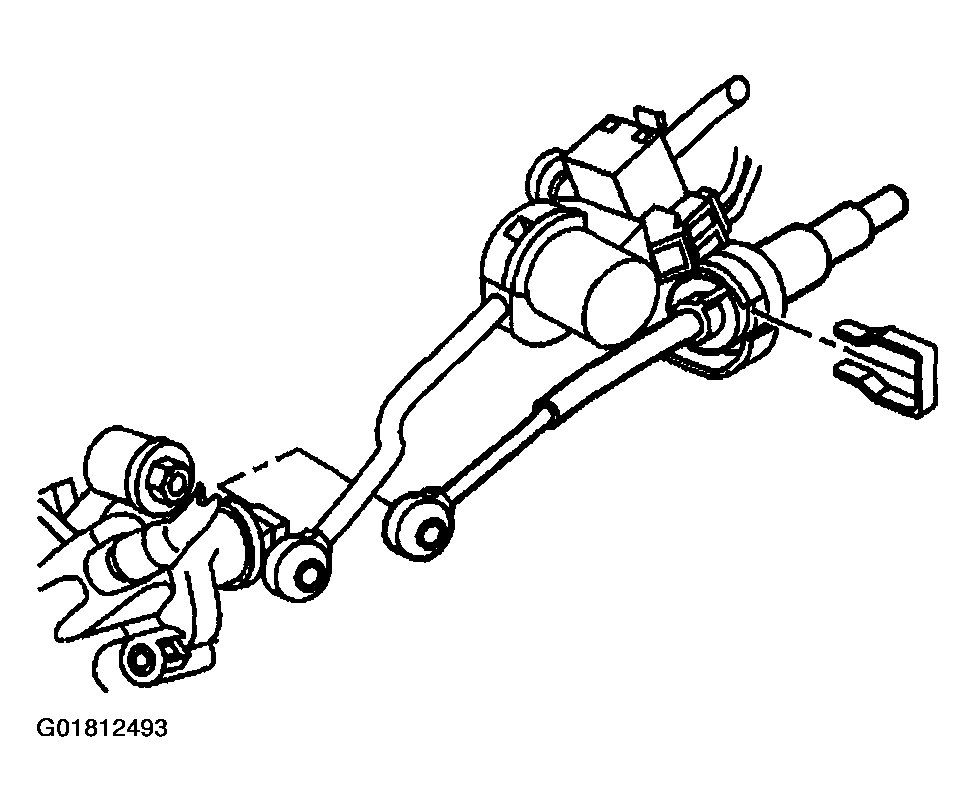

    Fig 4: Installing Automatic Transaxle Range Selector Cable & Column Control Lever
    G01812493Courtesy of GENERAL MOTORS CORP.
  7. Install the automatic transaxle range selector cable to the automatic transaxle range selector cable bracket.
  8. Install the automatic transaxle range selector cable to the automatic transaxle range selector lever.

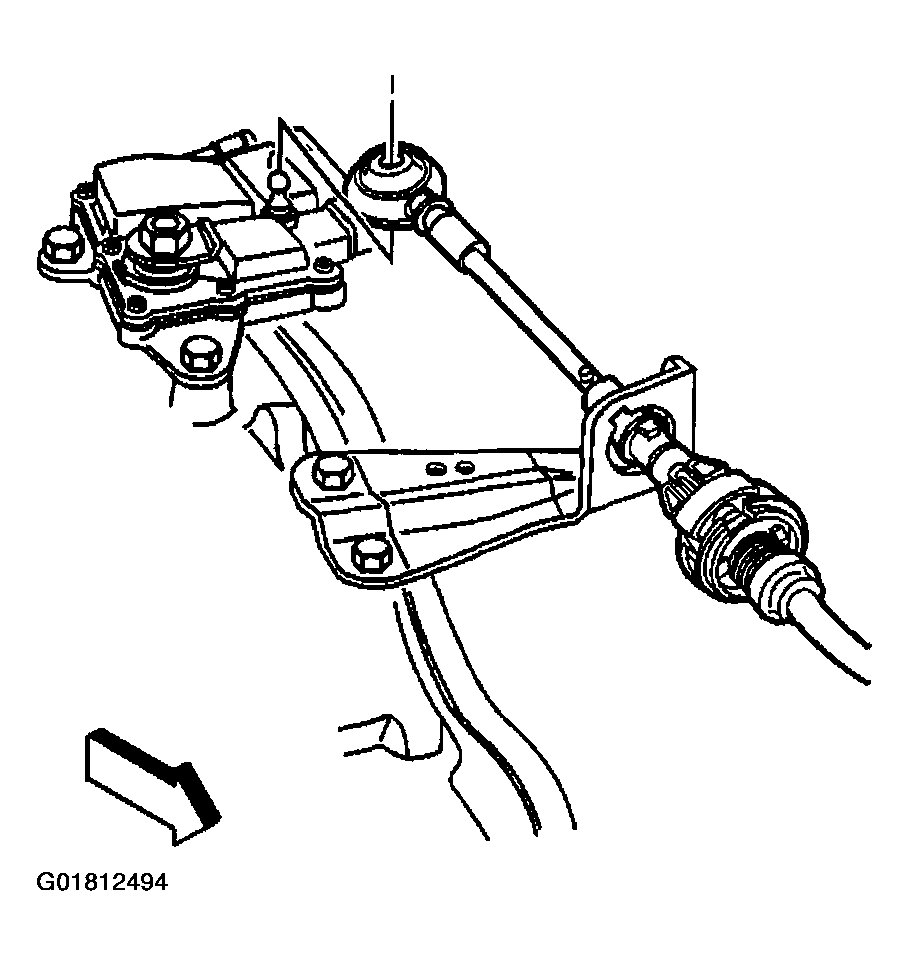

    Fig 5: Installing Automatic Transaxle Range Selector Cable & Bracket
    G01812494Courtesy of GENERAL MOTORS CORP.
  9. Install the retaining clip to the automatic transaxle range selector cable.
  10. Adjust the automatic transaxle range selector cable. Refer to Automatic Transmission Range Selector Cable Adjustment
  11. Install the throttle body air inlet duct.

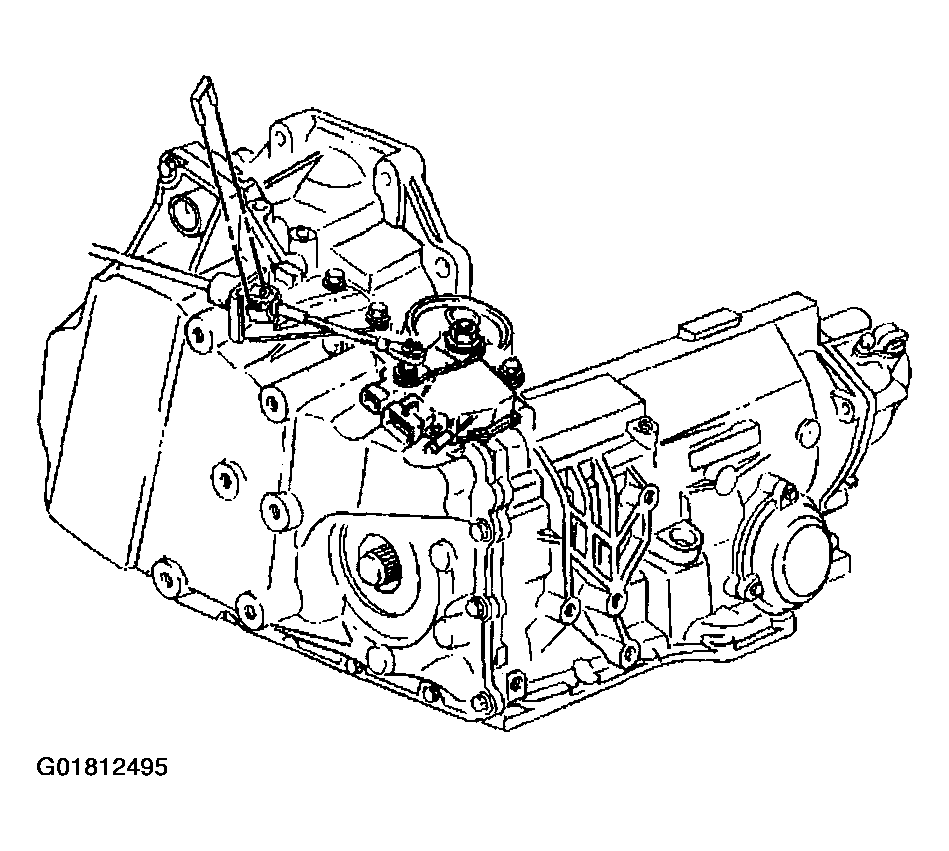

    Fig 6: Installing Throttle Body Air Inlet Duct
    G01812495Courtesy of GENERAL MOTORS CORP.
