Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transaxle mount to the transaxle mount frame bracket.
    NOTE: Refer to FASTENER NOTICE
  2. Install the transaxle mount lower nuts to the transaxle mount frame bracket.

    Tighten

    Tighten the nuts to 47 N.m (35 lb ft).

  3. Install the transaxle mount bracket to the transaxle. Refer to Automatic Transmission Mount Bracket Replacement

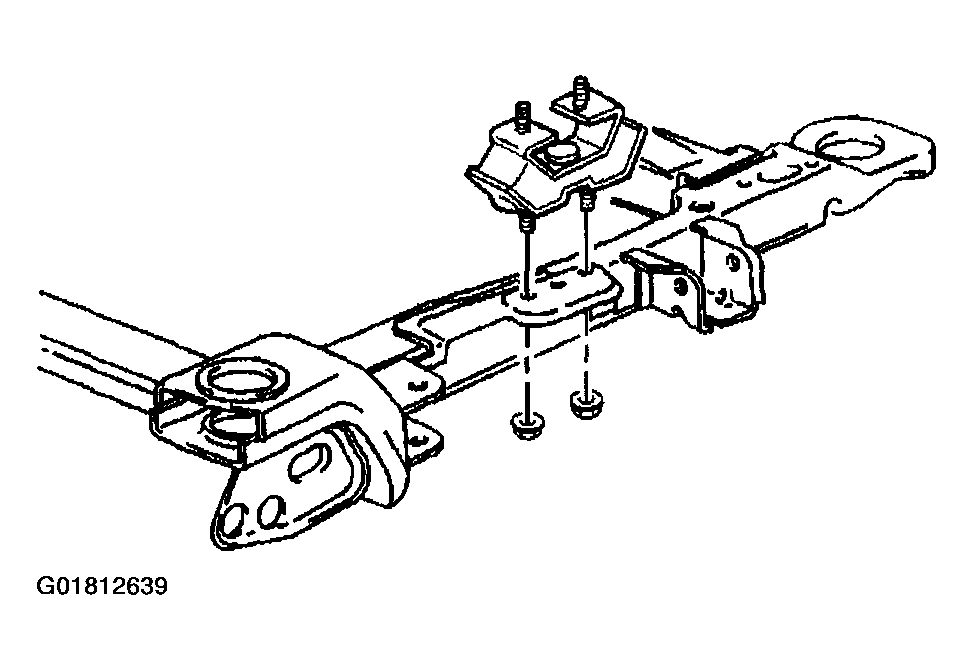

    Fig 1: Installing Transaxle Mount Lower Nuts & Frame Bracket
    G01812639Courtesy of GENERAL MOTORS CORP.
