Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

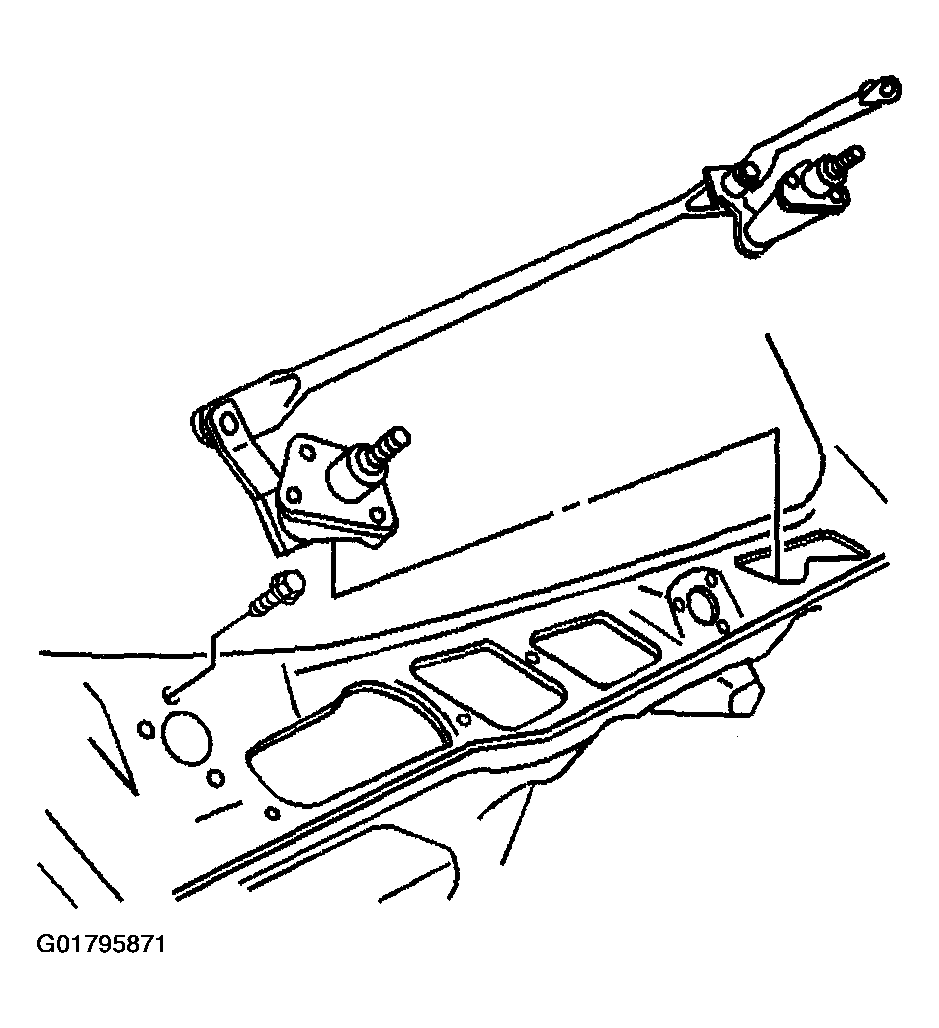

Install the transmission on the vehicle with the 6 bolts.
Tighten

Tighten the bolts to 8 N-m (70 lb in).

Fig 1: Installing Screws & Transmission (RHD)
Courtesy of GENERAL MOTORS CORP.

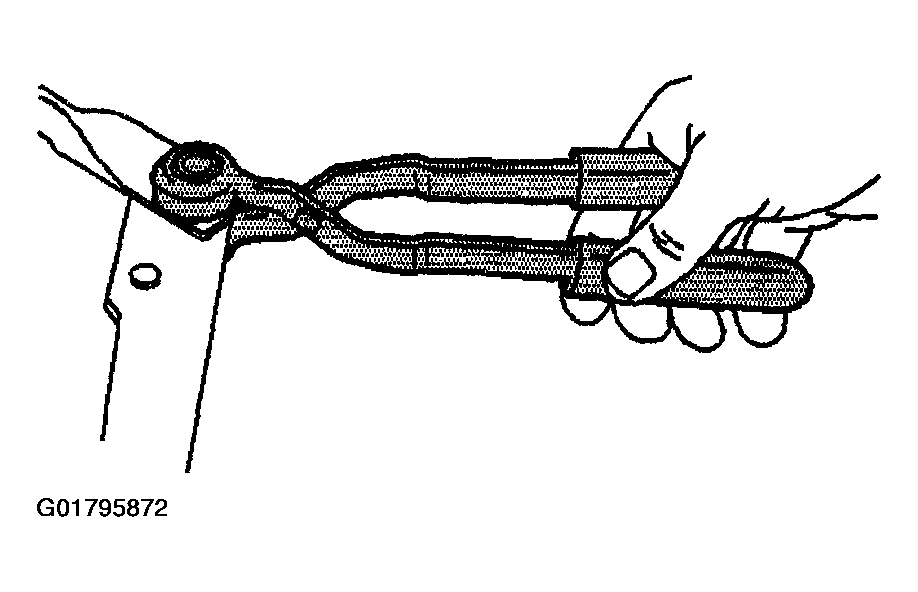

Install the transmission drive link socket to the wiper motor crank arm ball using the J 39529 . Ensure that the socket is fully seated on the ball socket.

Fig 2: Installing Transmission Drive Link Socket From Wiper Motor Crank Arm Using J 39232 (RHD)
Courtesy of GENERAL MOTORS CORP.

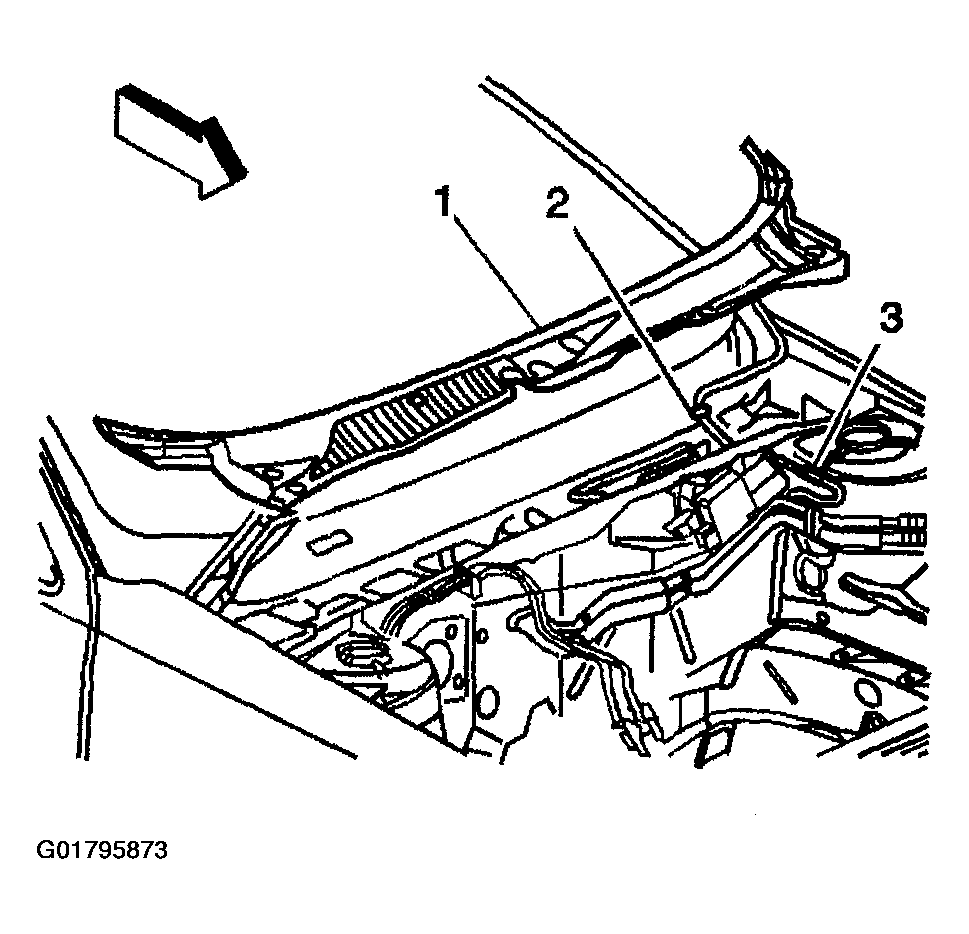

Install the air inlet screen (1). Refer to AIR INLET GRILLE PANEL REPLACEMENT .
Install the wiper arm and blade assemblies. Refer to Wiper Arm Replacement (LHD) or Wiper Arm Replacement (RHD) .

Fig 3: Installing Wiper Arm & Blade Assemblies
Courtesy of GENERAL MOTORS CORP.
