Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the transmission on the vehicle with six screws.
Tighten

Tighten the screws to 8 N.m (70 lb in).

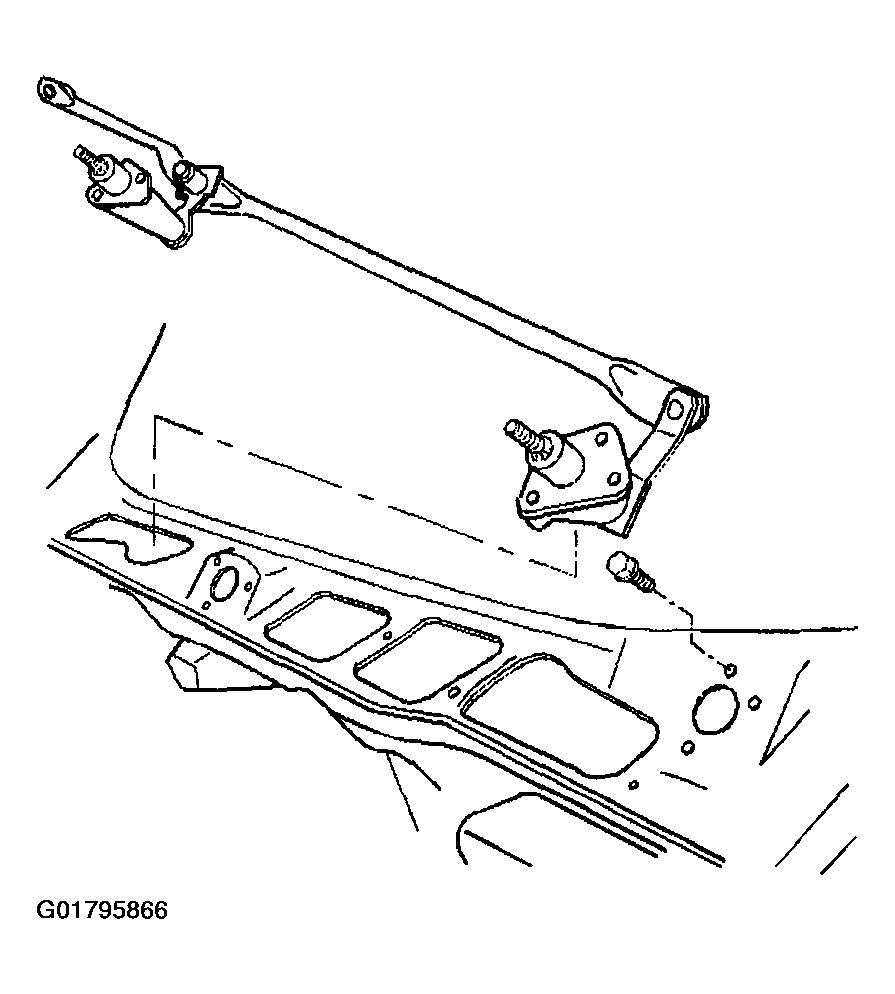

Fig 1: Installing Screws & Transmission (LHD)
Courtesy of GENERAL MOTORS CORP.
Install the transmission drive link socket to the wiper motor crank arm ball using the J 39529 . Ensure that the socket is fully seated on the ball.
Install the air inlet screen. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
Install the wiper arm and blade assemblies. Refer to Wiper Arm Replacement (LHD) or Wiper Arm Replacement (RHD) .

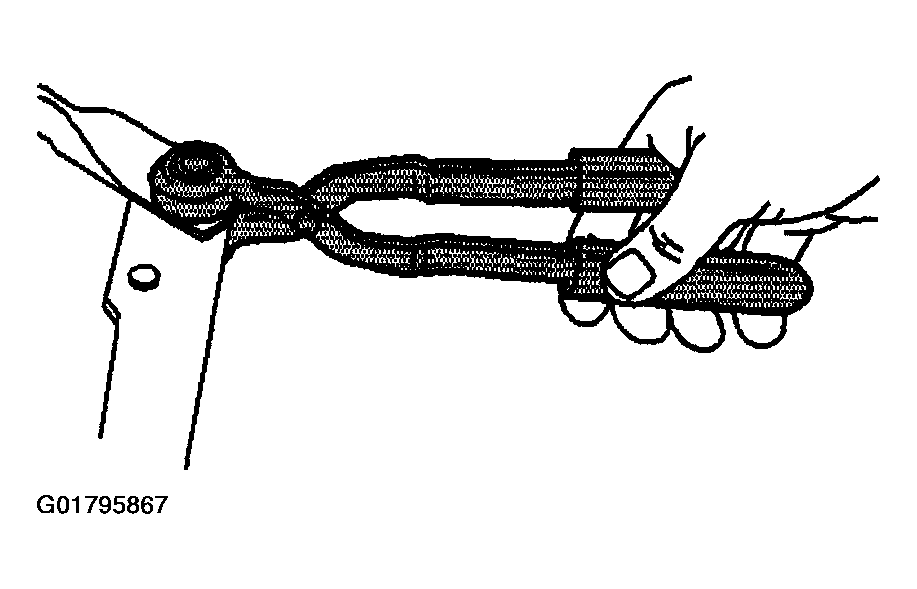

Fig 2: Installing Transmission Drive Link Socket From Wiper Motor Crank Arm Using J 39232 (LHD)
Courtesy of GENERAL MOTORS CORP.
