Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the wiper arms 153-204 mm (6-8 in) up the windshield from the park position.
  2. Connect the transmission drive link to the wiper motor crank arm using the J 39529  .

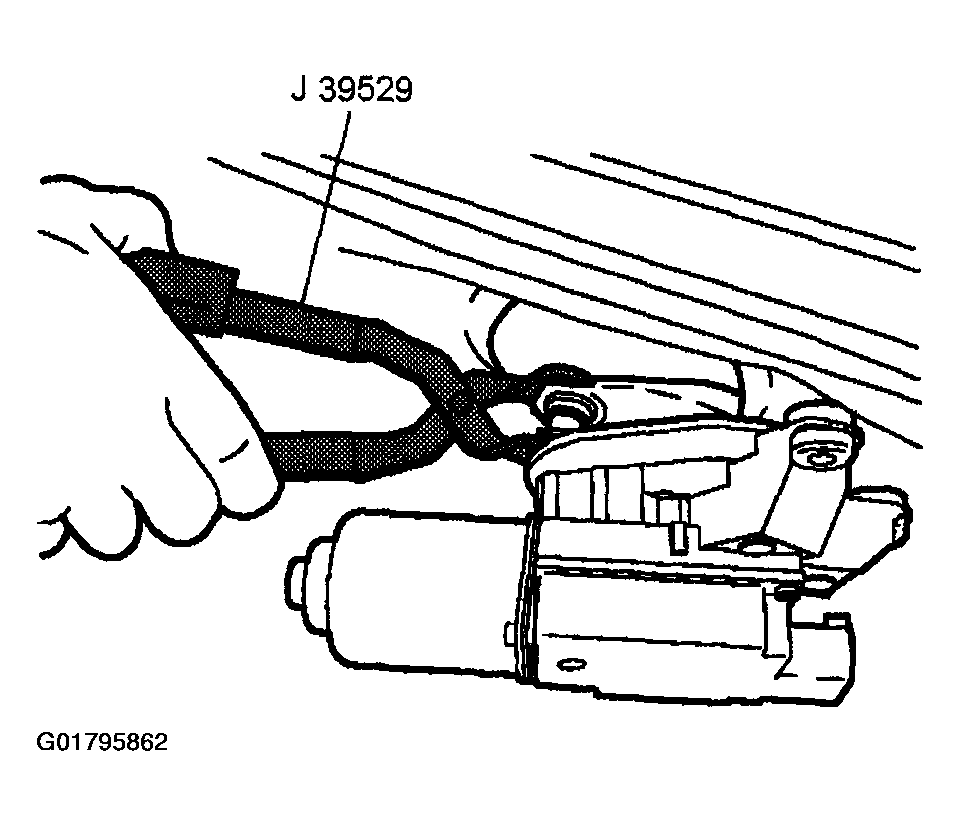

    Fig 1: Installing Wiper Motor Electrical Connector & Bolt (RHD)
    G01795862Courtesy of GENERAL MOTORS CORP.
  3. Position the wiper motor to the plenum panel.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the wiper motor bolts.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  5. Connect the electrical connector to the wiper motor.
  6. Inspect the wiper washer system operation.

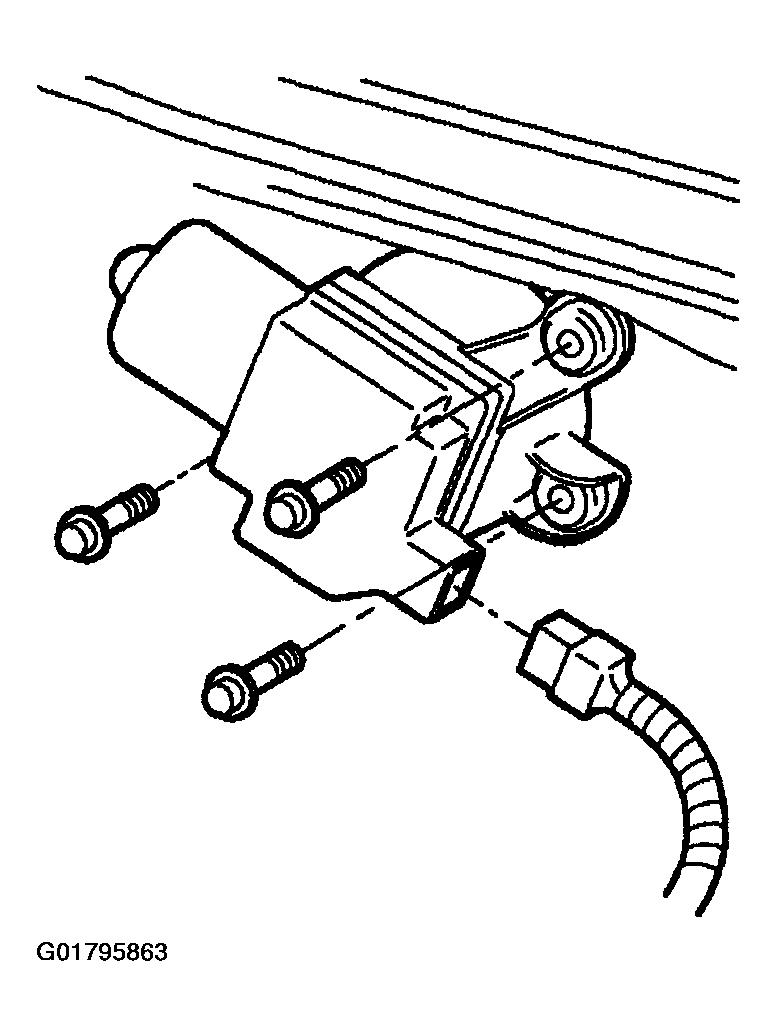

    Fig 2: Connecting Electrical Connector To Wiper Motor (RHD)
    G01795863Courtesy of GENERAL MOTORS CORP.
