Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the wiper motor cover to the wiper motor with three screws.

    Tighten

    Tighten the screws to 2.0 N.m (18 lb in).

  2. Connect the harness electrical connector to the wiper motor cover.
  3. Inspect the wiper washer system for proper operation.

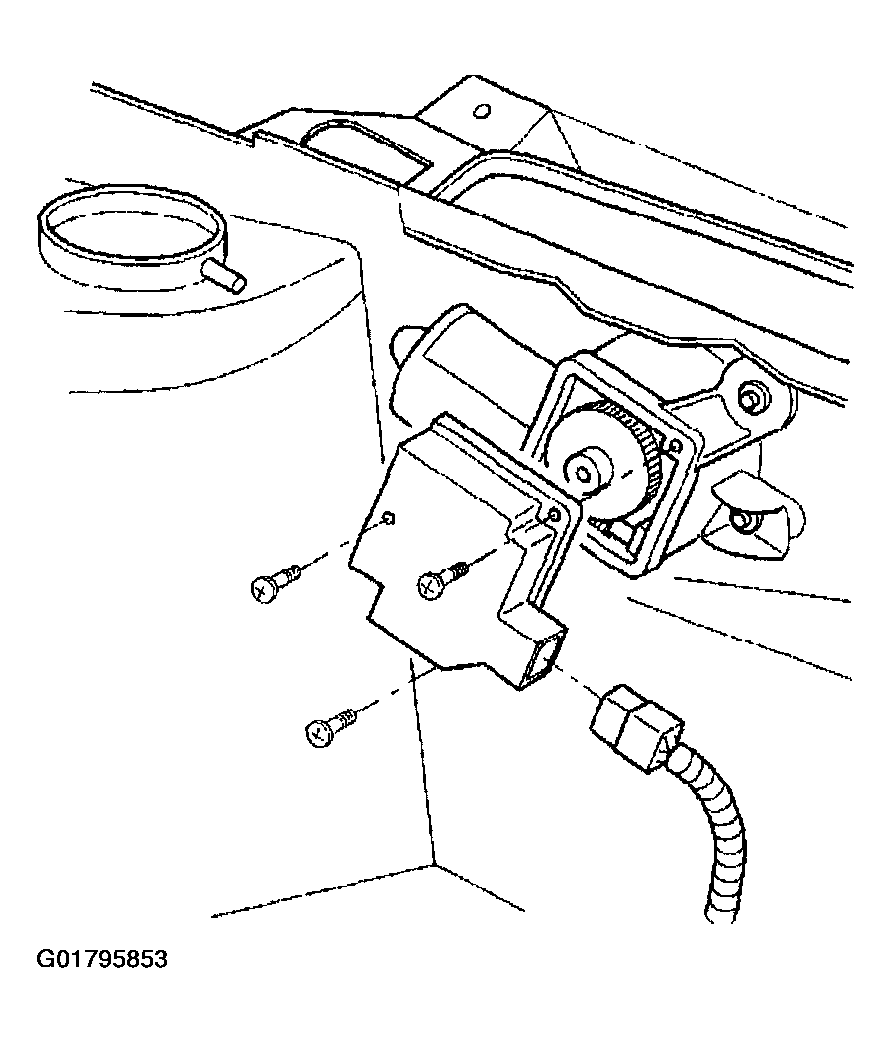

    Fig 1: Installing Wiper Motor Cover & Screw (LHD)
    G01795853Courtesy of GENERAL MOTORS CORP.
