Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Insert the hook of the wiper arm through the opening in the wiper blade.

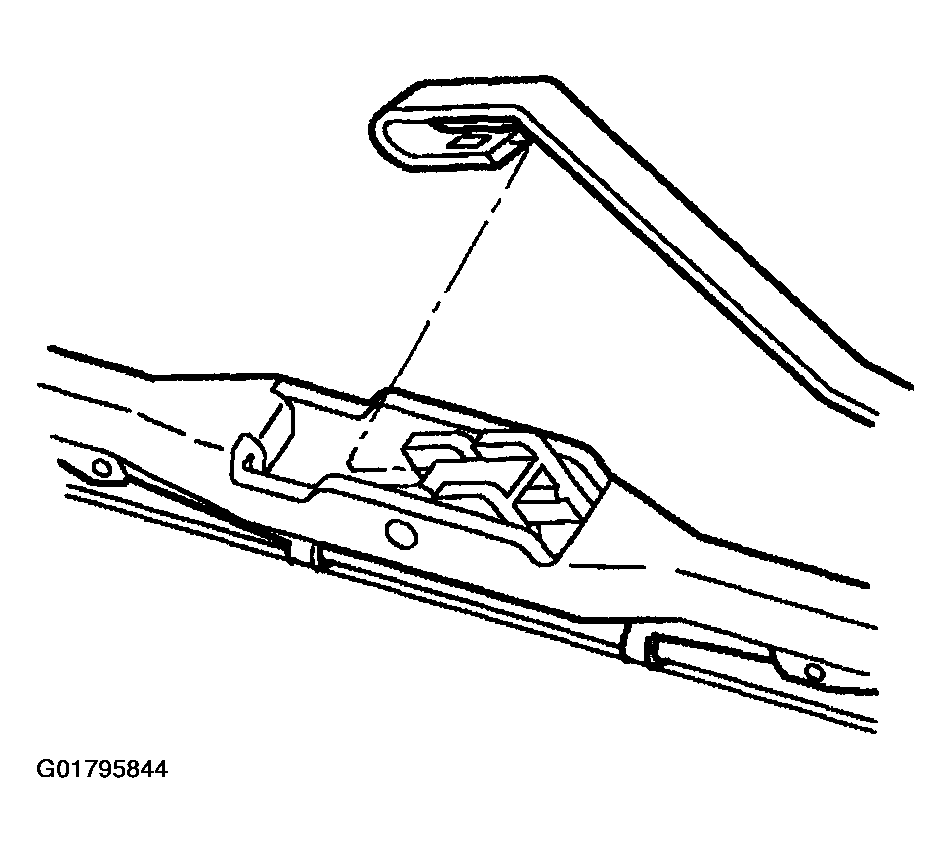

Fig 1: Installing Wiper Arm & Wiper Blade (LHD)
Courtesy of GENERAL MOTORS CORP.
Position the wiper blade pivot in the inside radius of the wiper arm hook.
Pull the wiper blade pivot into the wiper arm hook until the pivot locks into the hook.
Inspect the wiper washer system for proper operation.

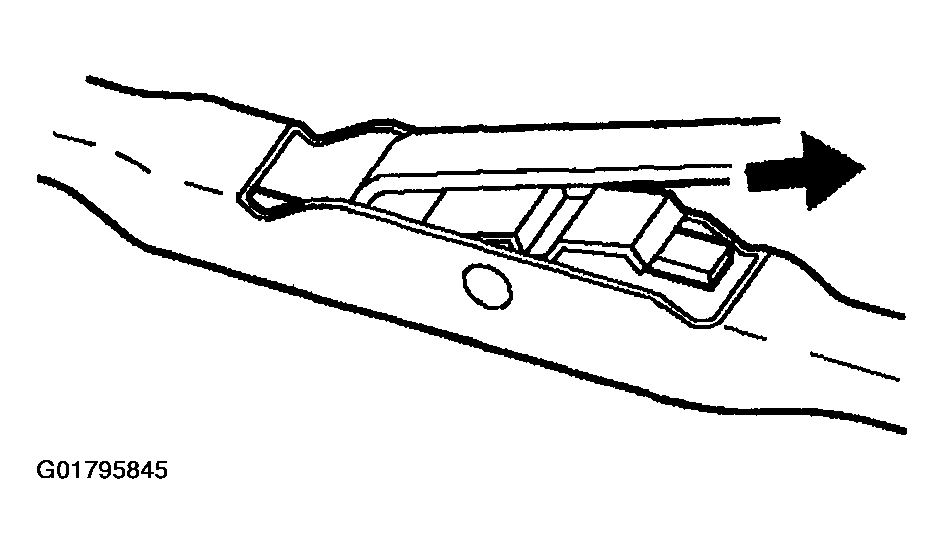

Fig 2: Installing Wiper Blade Clip (LHD)
Courtesy of GENERAL MOTORS CORP.
