Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Install the underhood lamp (1) to the hood (2).

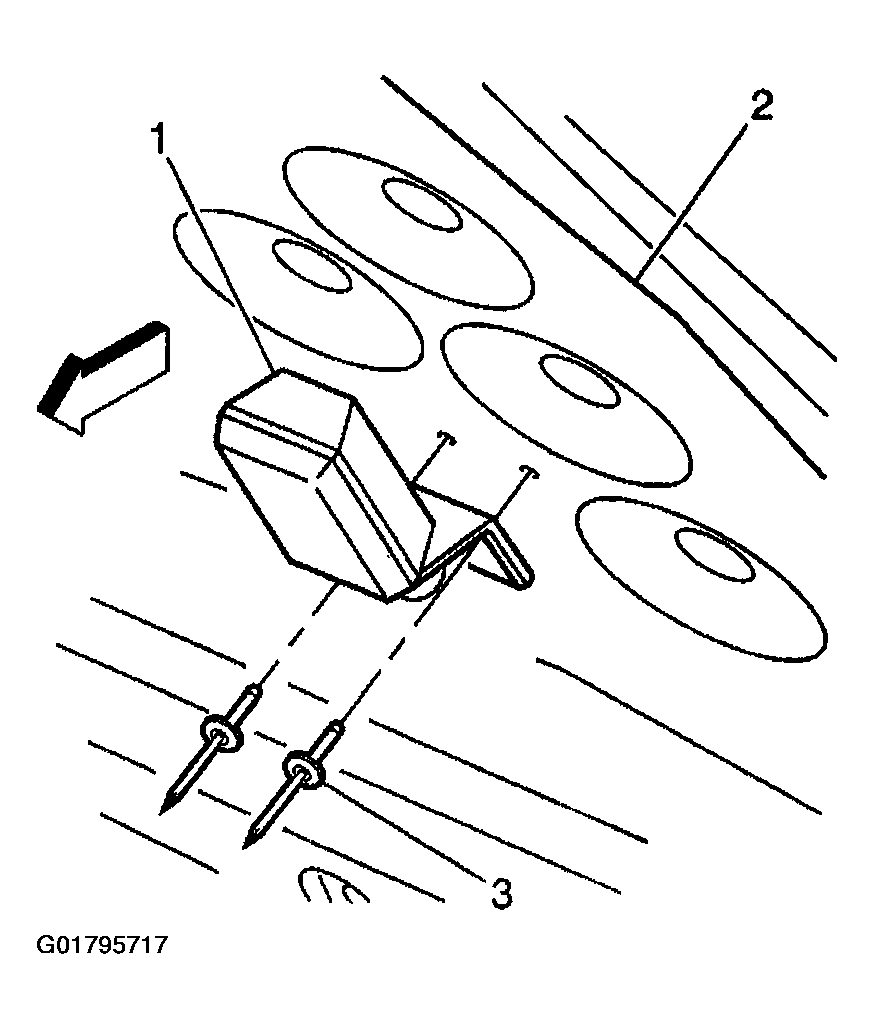

Fig 1: Installing Underhood Lamp
Courtesy of GENERAL MOTORS CORP.
Install the rivets (3) in order to secure the underhood lamp (1) to the hood (2).
Connect the underhood lamp electrical connector (3) to the underhood lamp (1).

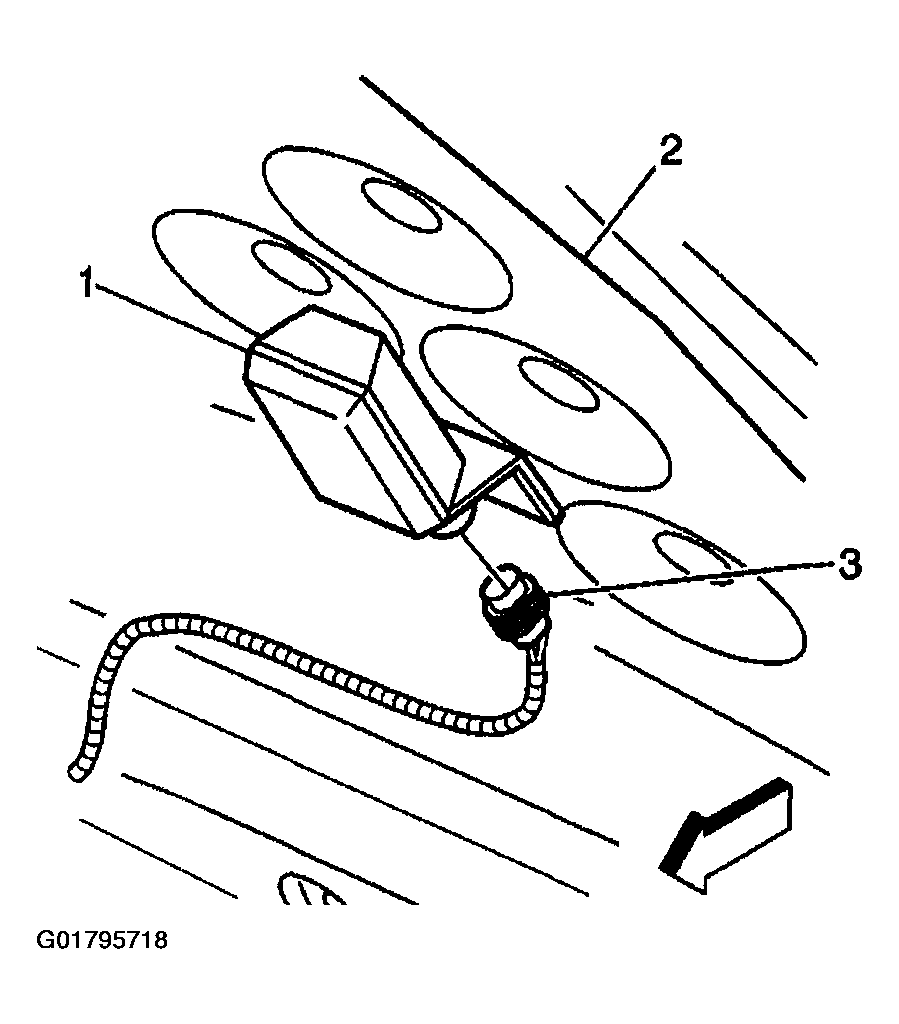

Fig 2: Connecting Underhood Lamp Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Close the hood.
