Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console center trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE .
  2. Rotate the shift indicator lamp socket (1) counter clockwise in order to release the lamp and socket (1) from the shifter assembly.

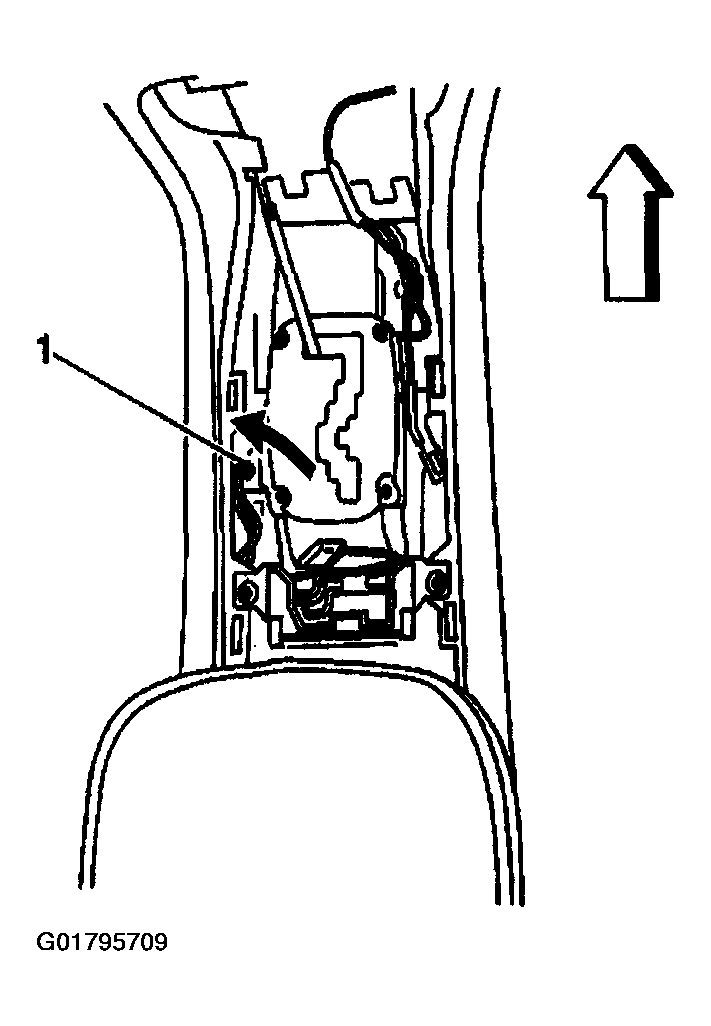

    Fig 1: Removing Lamp & Socket From Shifter Assembly
    G01795709Courtesy of GENERAL MOTORS CORP.
  3. Remove the lamp and socket (1) from the shifter assembly.
  4. Remove the shift indicator lamp (1) from the lamp socket.
    Fig 2: Removing Shift Indicator Lamp
    G01795710Courtesy of GENERAL MOTORS CORP.
