Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the taillamp connector (3) and the grommet (2) through the body.

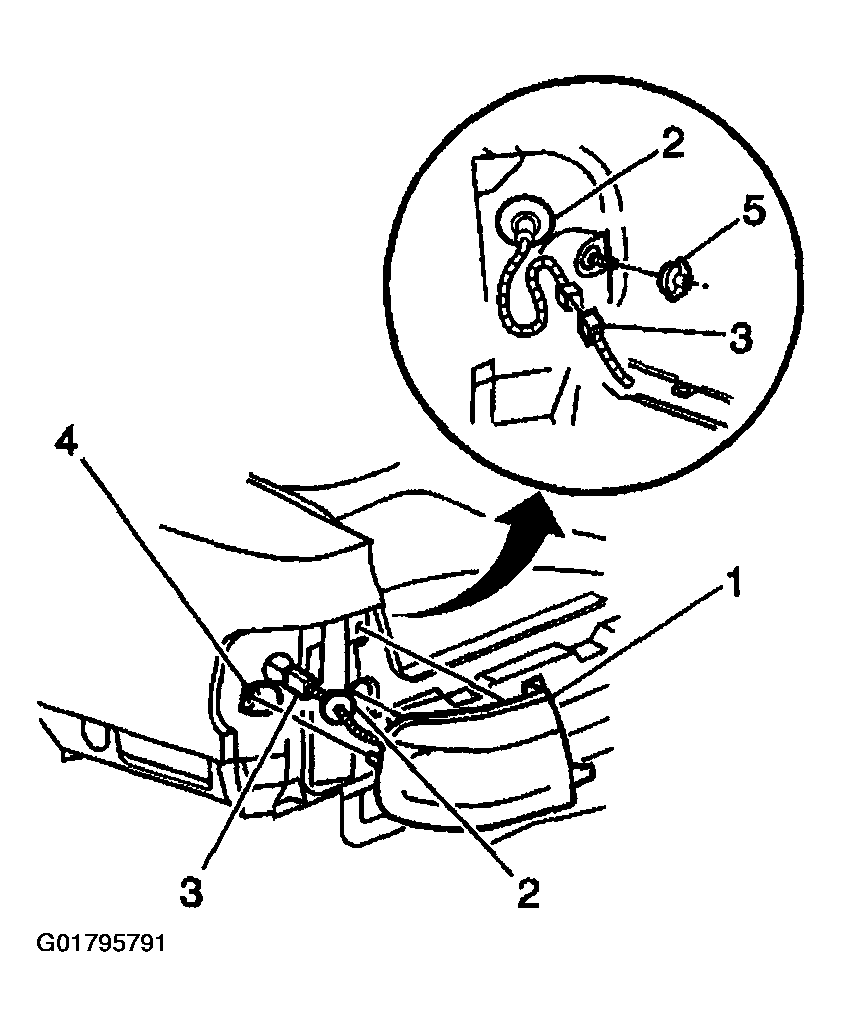

    Fig 1: Installing Tail Lamp
    G01795791Courtesy of GENERAL MOTORS CORP.
  2. Verify that the grommet (2) is fully seated in the body.
  3. Install the taillamp (1) to the body.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the fasteners (5) in order to secure the taillamp (1) to the body.

    Tighten

    Tighten the fasteners to 4.5 N.m (40 lb in).

  5. Connect the taillamp connector (3).
  6. Install the rear compartment side trim. Refer to COMPARTMENT SIDE TRIM REPLACEMENT - LH REAR or COMPARTMENT SIDE TRIM REPLACEMENT - RH REAR .
  7. Close the rear compartment lid.
