Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front wheelhouse liner. Refer to WHEELHOUSE LINER REPLACEMENT - FRONT .
  2. Push on the rear of the lamp assembly towards the front of the vehicle in order to disengage the lamp from the fender.
  3. Remove the repeater lamp (2) from the front fender.

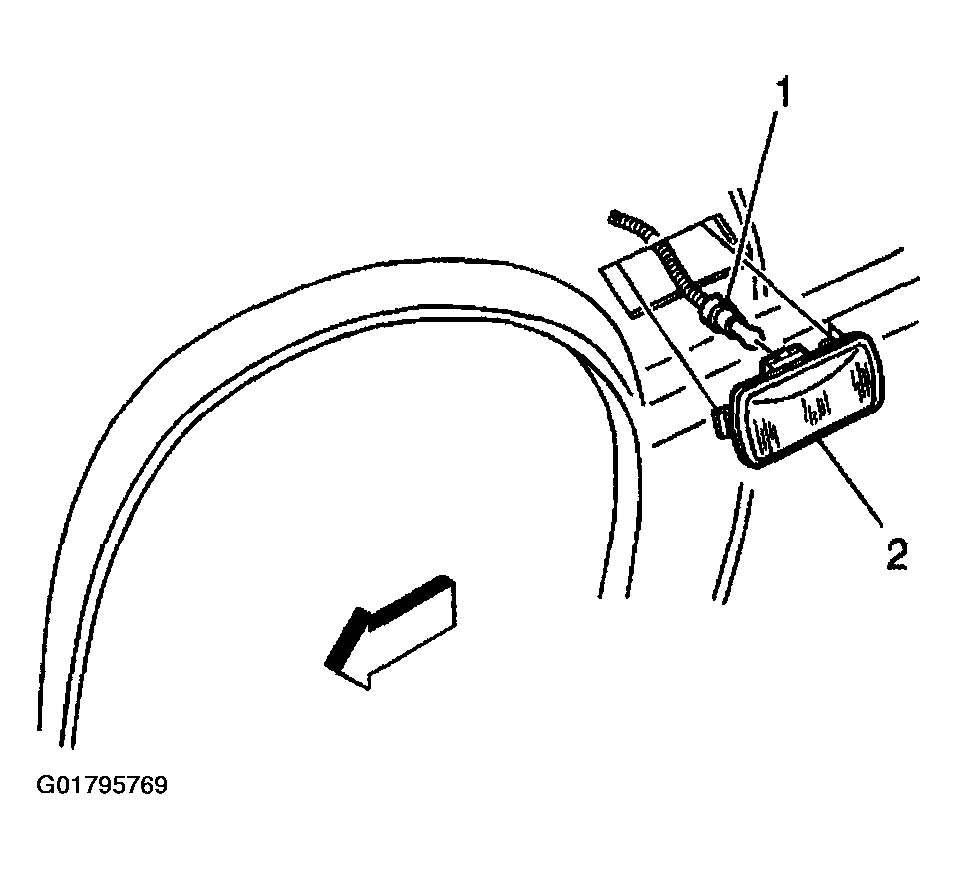

    Fig 1: Removing Repeater Lamp
    G01795769Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the lamp socket (1) from the repeater lamp (2).
