Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park/turn lamp bulb into the socket.

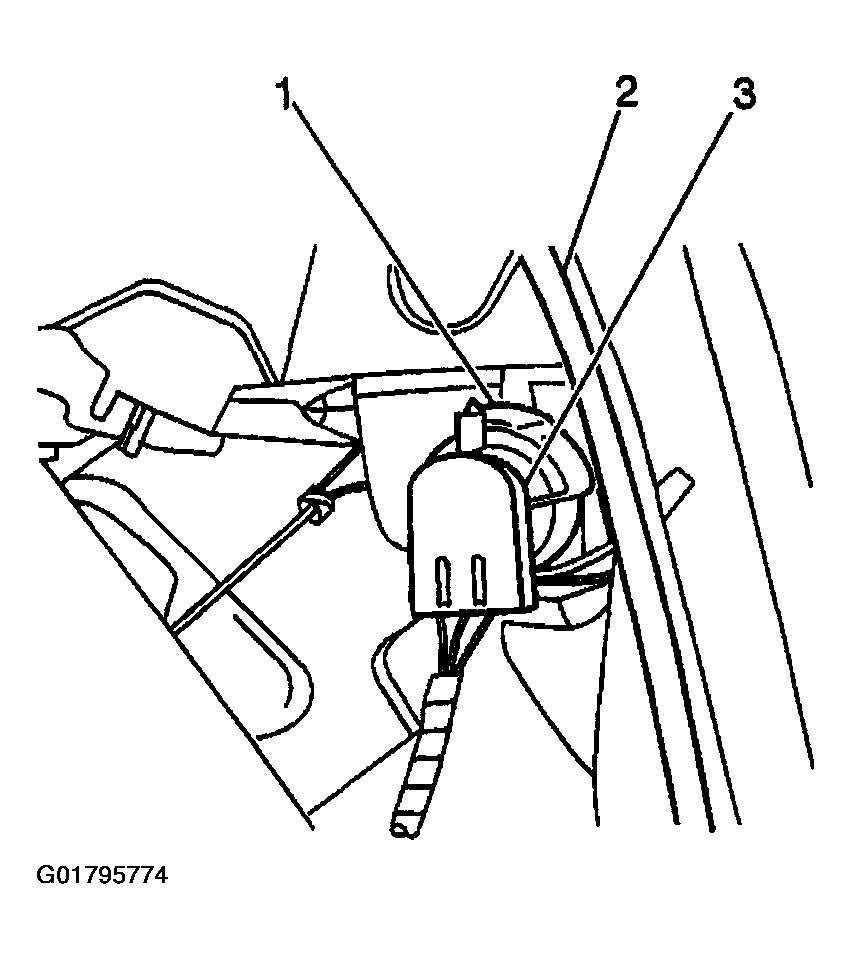

    Fig 1: Installing Park/Turn Signal Lamp Bulb
    G01795774Courtesy of GENERAL MOTORS CORP.
  2. Install the park/turn lamp socket (3) into the headlamp assembly (2).
  3. Turn the park/turn lamp socket (3) clockwise to secure it into the headlamp assembly (2).
  4. Install the headlamp assembly into the vehicle. Refer to Headlamp Replacement (SLS, w/o TT6, TT7 or TT8)  or Headlamp Replacement (SLS and STS w/TT6, TT7 or TT8) .
