Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side marker bulb (1) into the headlamp assembly (2).

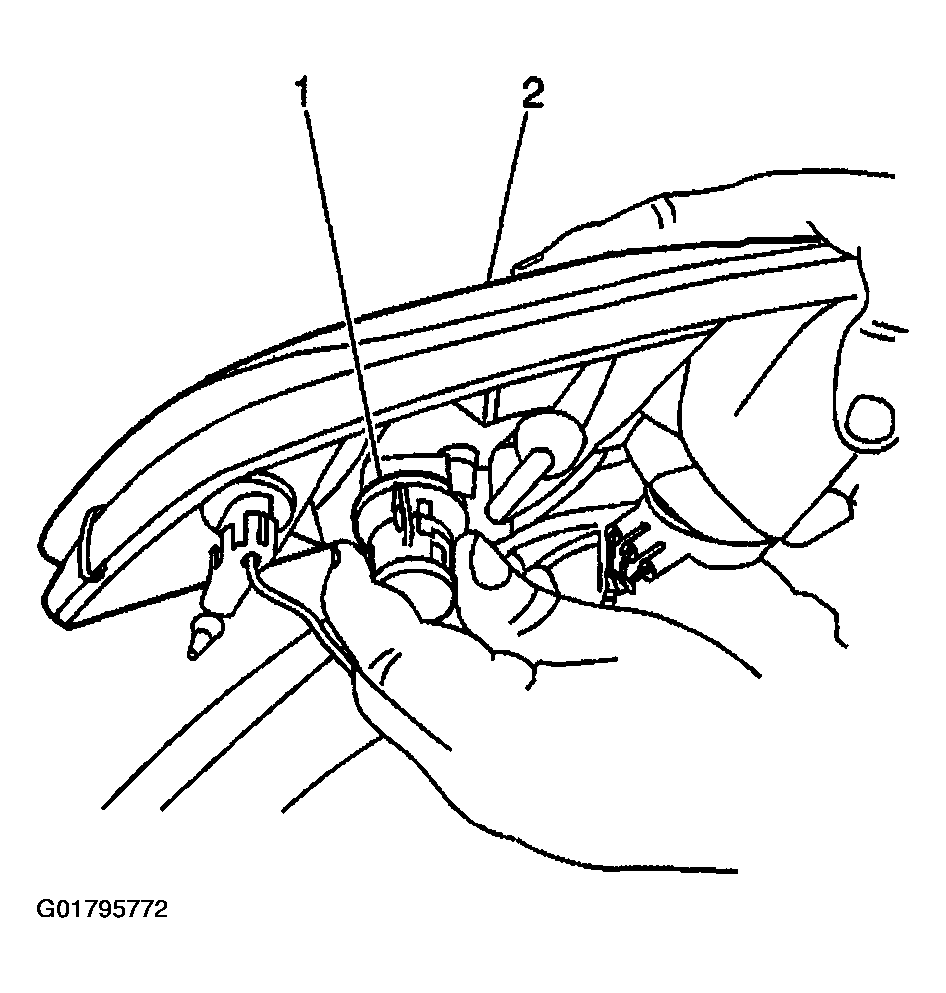

    Fig 1: Installing Side Marker Lamp
    G01795772Courtesy of GENERAL MOTORS CORP.
  2. Turn the side marker lamp socket (1) clockwise in order to secure it to the headlamp assembly (2).
  3. Connect the electrical connector to the side marker lamp socket (1).
  4. Install the headlamp assembly to the vehicle. Refer to Headlamp Replacement (SLS, w/o TT6, TT7 or TT8)  or Headlamp Replacement (SLS and STS w/TT6, TT7 or TT8) .
