Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

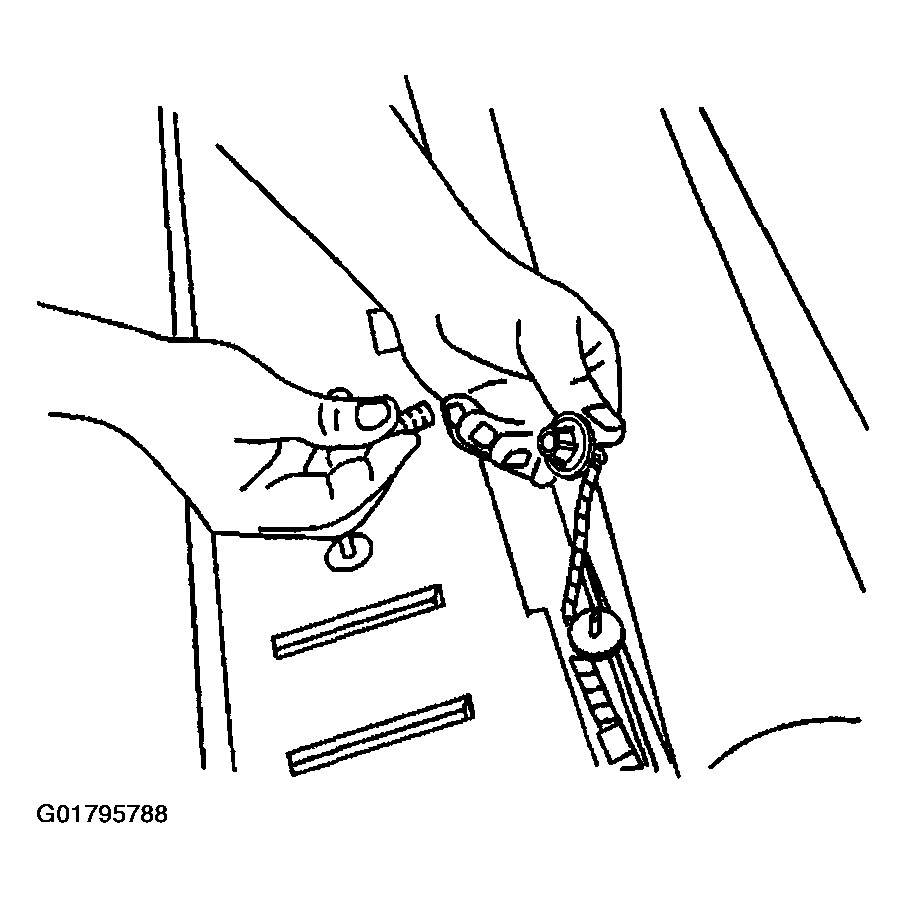

Install the license lamp bulb into the license lamp socket.

Fig 1: Installing License Lamp Bulb
Courtesy of GENERAL MOTORS CORP.

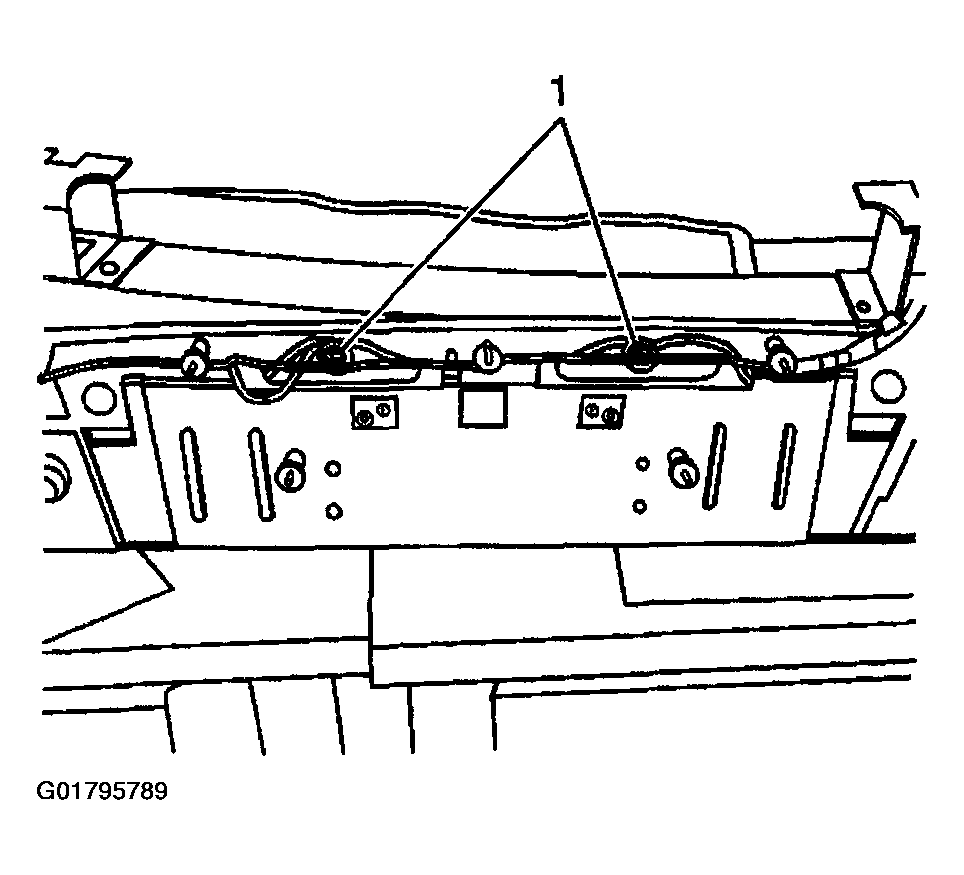

Install the license lamp sockets (1) into the back up lamp.

Fig 2: Installing License Lamp Sockets Into Back Up Lamp
Courtesy of GENERAL MOTORS CORP.
Install the back up lamp to the vehicle. Refer to Backup Lamp Replacement .
