Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly from the vehicle. Refer to Headlamp Replacement (SLS, w/o TT6, TT7 or TT8)  or Headlamp Replacement (SLS and STS w/TT6, TT7 or TT8) .
  2. Disconnect the electrical connector (3) from the headlamp bulb (2).

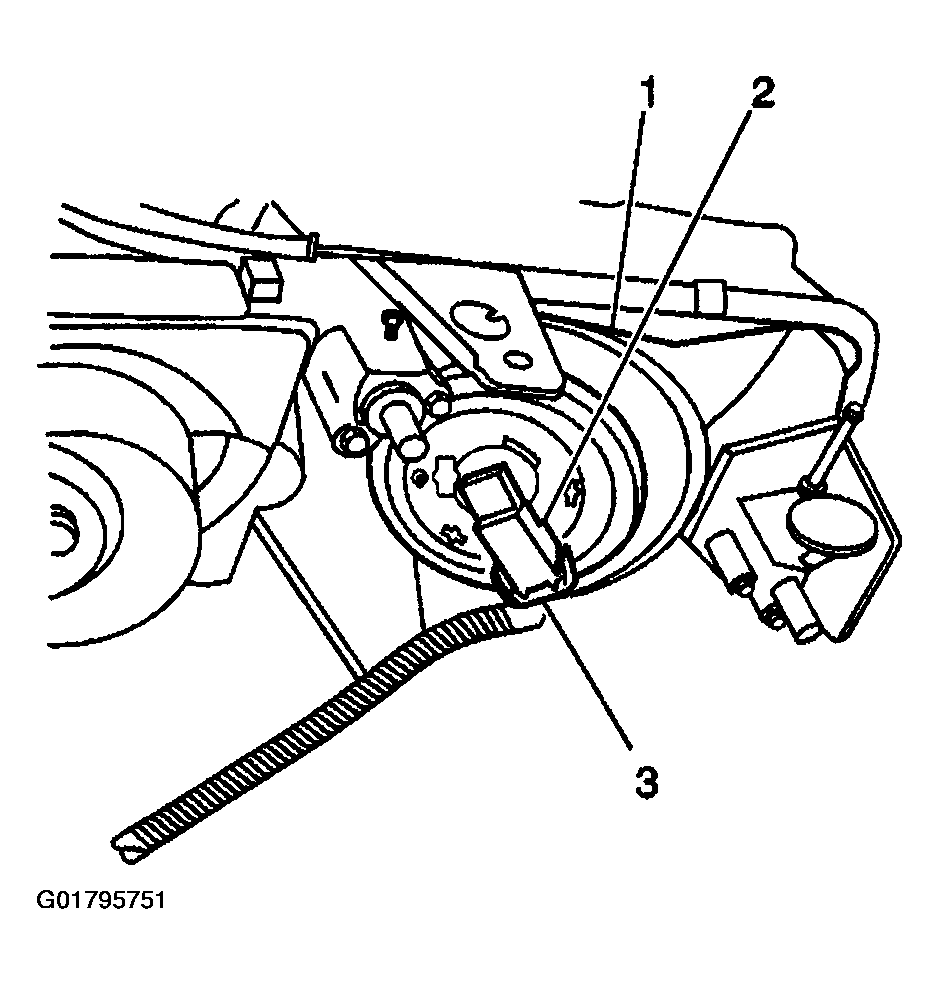

    Fig 1: Removing Headlamp Bulb
    G01795751Courtesy of GENERAL MOTORS CORP.
  3. Turn the headlamp bulb (2) counter clockwise in order to disengage it from the headlamp assembly (1).
  4. Remove the headlamp bulb (2) from the headlamp assembly (1).
