Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT .
  2. Disconnect the fog lamp electrical connector (2) from the fog lamp (1).

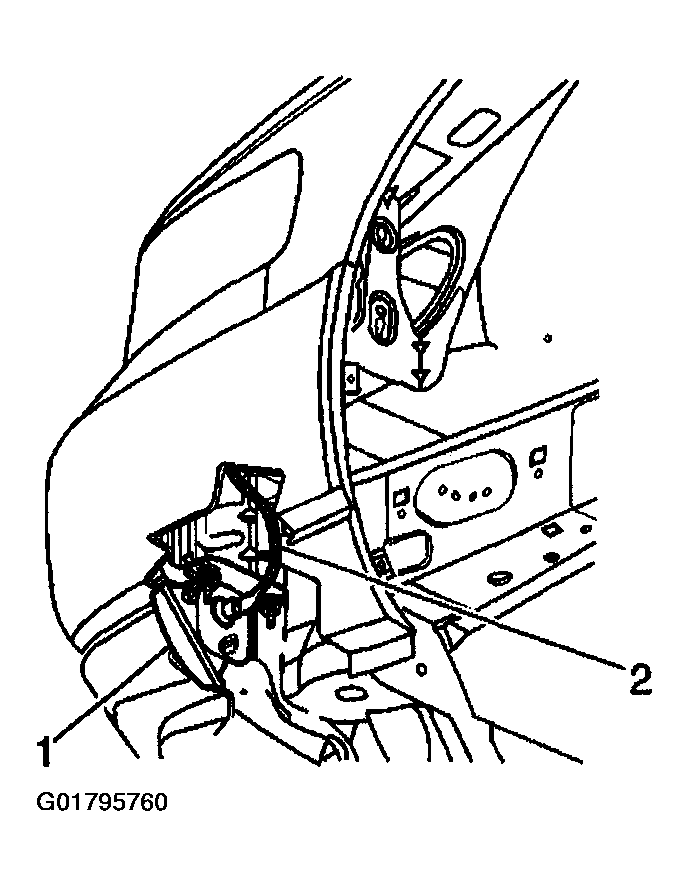

    Fig 1: Disconnecting Fog Lamp Electrical Connector
    G01795760Courtesy of GENERAL MOTORS CORP.
  3. Remove the fasteners (3) securing the fog lamp (2) to the fog lamp bracket (1).

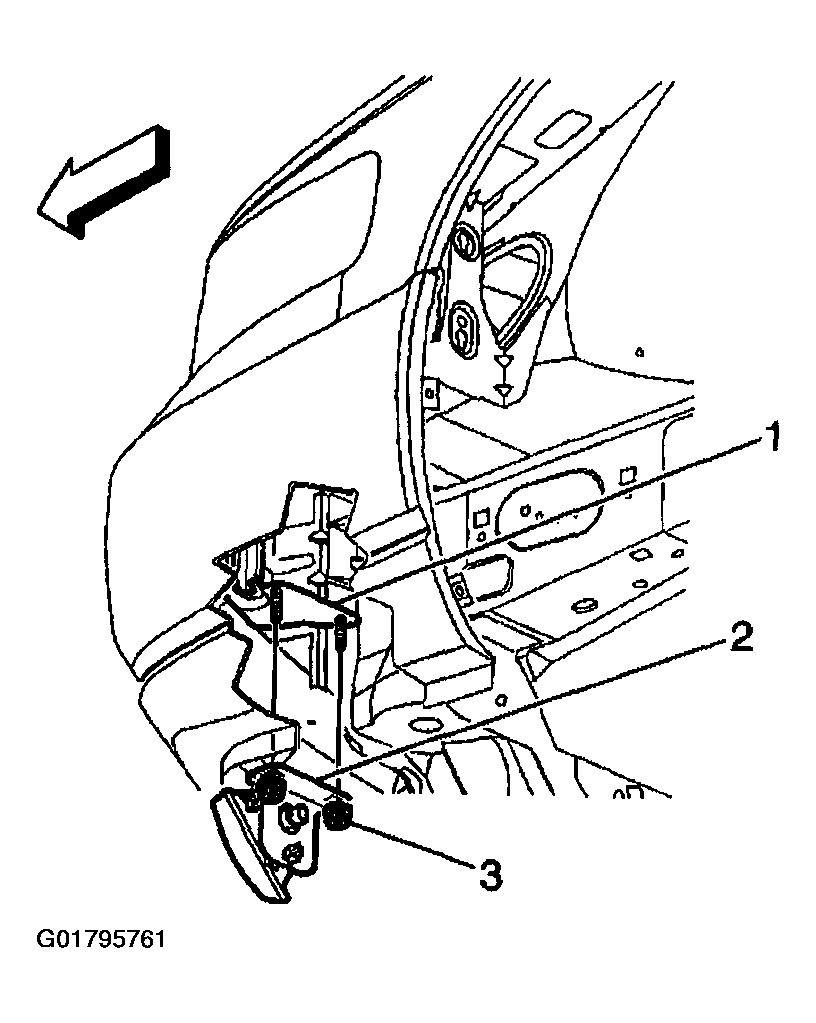

    Fig 2: Removing Fog Lamp
    G01795761Courtesy of GENERAL MOTORS CORP.
  4. Remove the fog lamp (2).
  5. If the fog lamp bracket requires replacement, remove the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPERFascia Replacement - Front Bumper on page 8-1102  in Bumpers.
  6. Remove the fasteners (1) securing the fog lamp bracket (3) to the front impact bar (2).

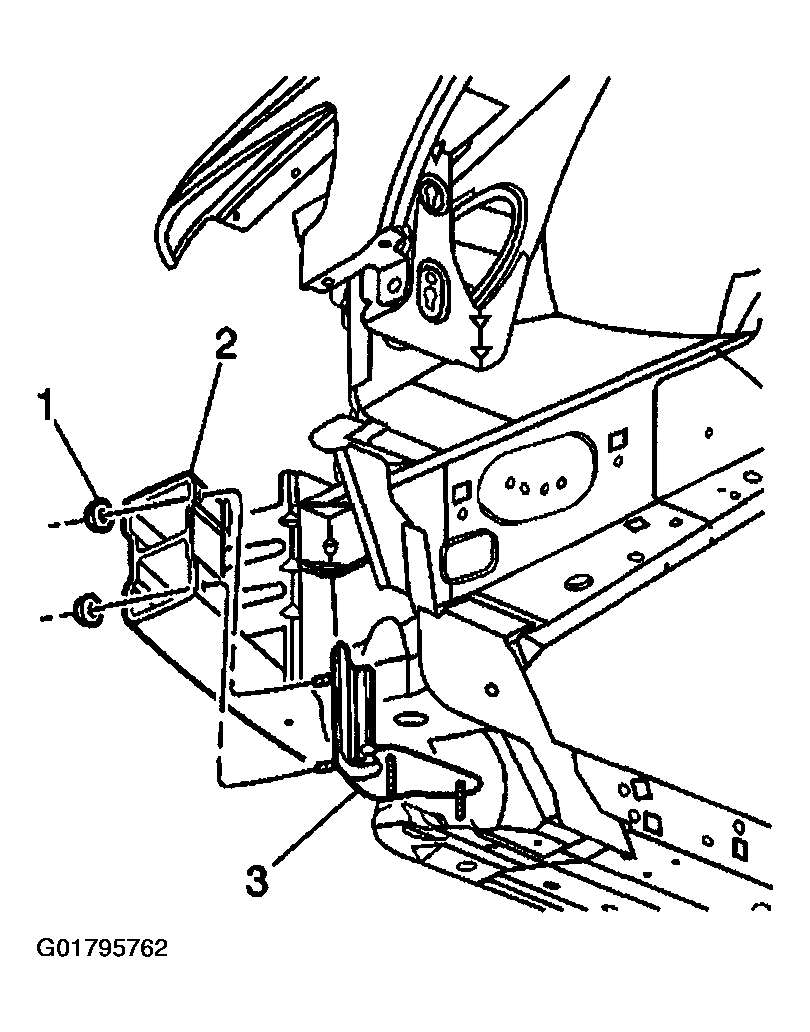

    Fig 3: Removing Fog Lamp Bracket
    G01795762Courtesy of GENERAL MOTORS CORP.
  7. Remove the fog lamp bracket (3).
