Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD .

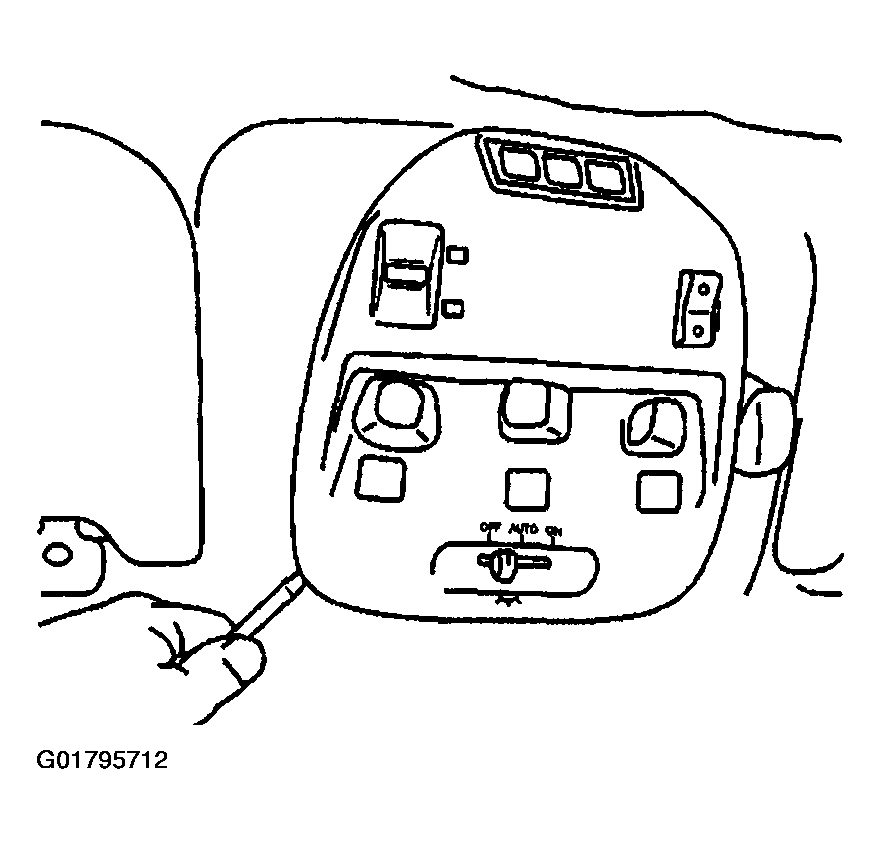

Fig 1: Removing Overhead Console
Courtesy of GENERAL MOTORS CORP.
Remove the three screws from the lamp retainer.

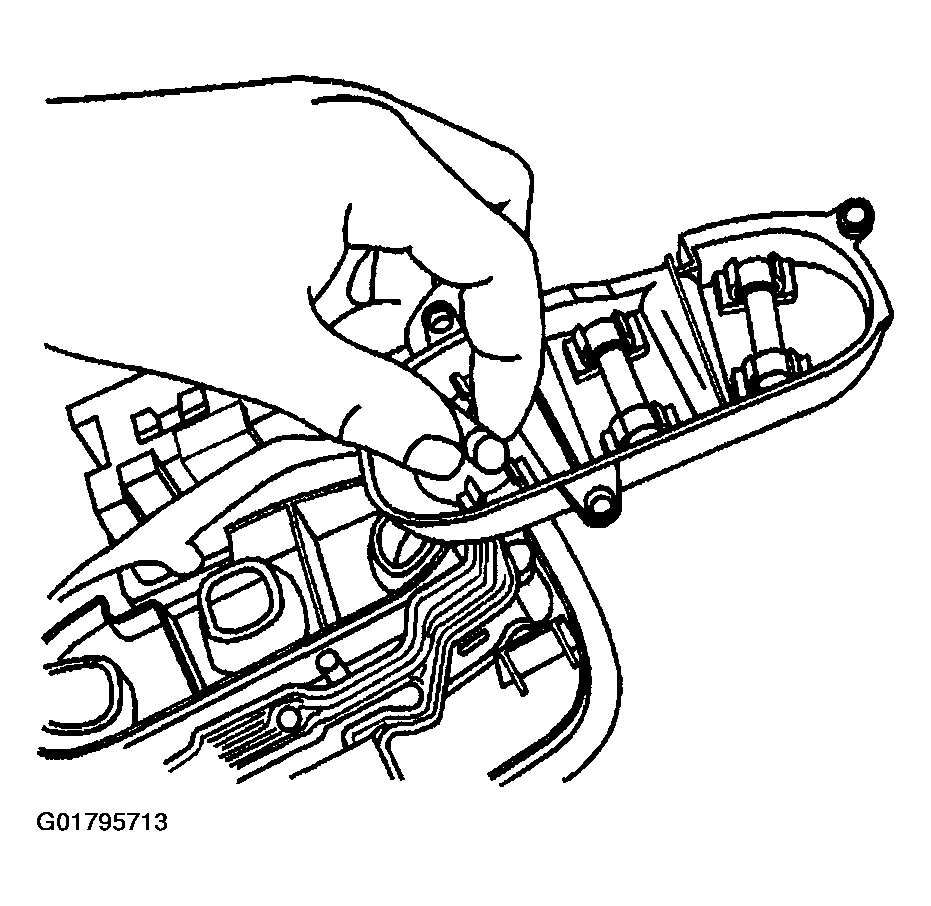

Fig 2: Removing Dome Lamp
Courtesy of GENERAL MOTORS CORP.

Important: Care should be taken when rotating the lamp retainer not to snag or rip the flat wire harness.
Rotate the lamp retainer from right to left.
Replace the inoperative bulb.
