Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp. Refer to Headlamp Replacement (SLS, w/o TT6, TT7 or TT8)  or Headlamp Replacement (SLS and STS w/TT6, TT7 or TT8) .
  2. Press the tang (1) and rotate the cornering lamp socket counter clockwise in order to release it from the headlamp assembly.

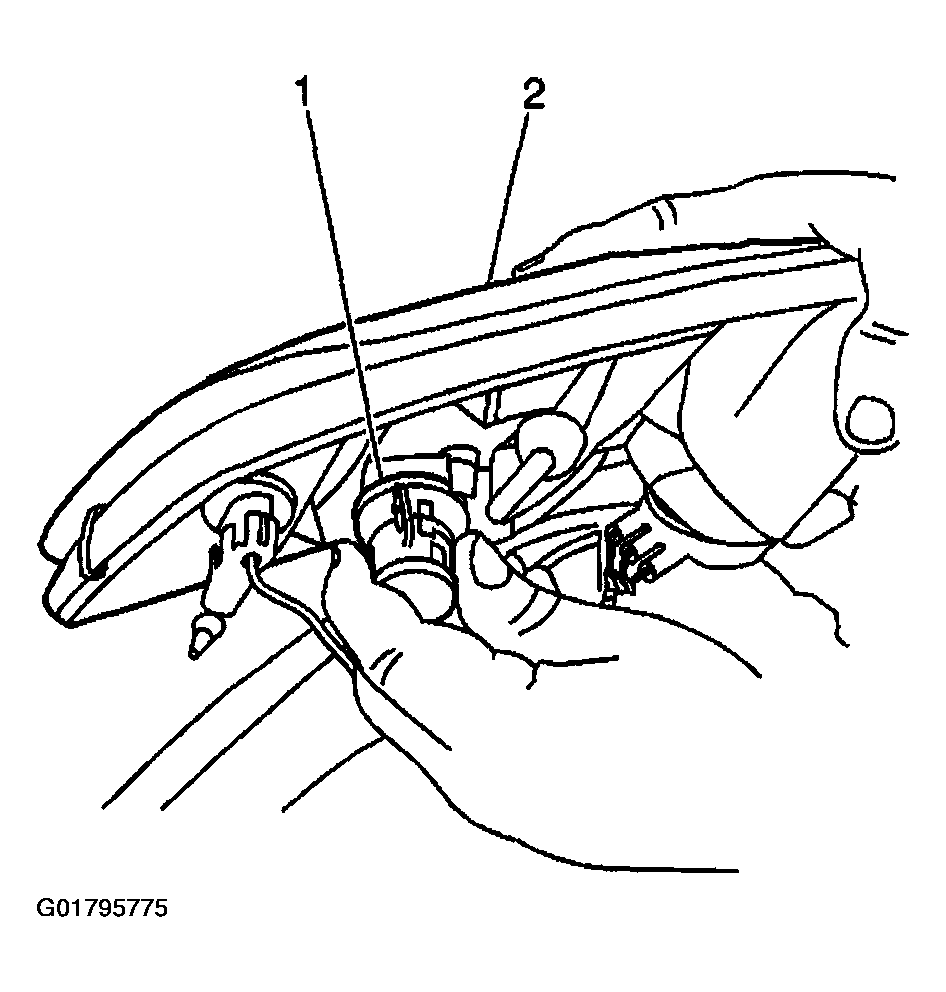

    Fig 1: Releasing Cornering Lamp Socket
    G01795775Courtesy of GENERAL MOTORS CORP.
  3. Remove the socket and the bulb from the headlamp assembly.

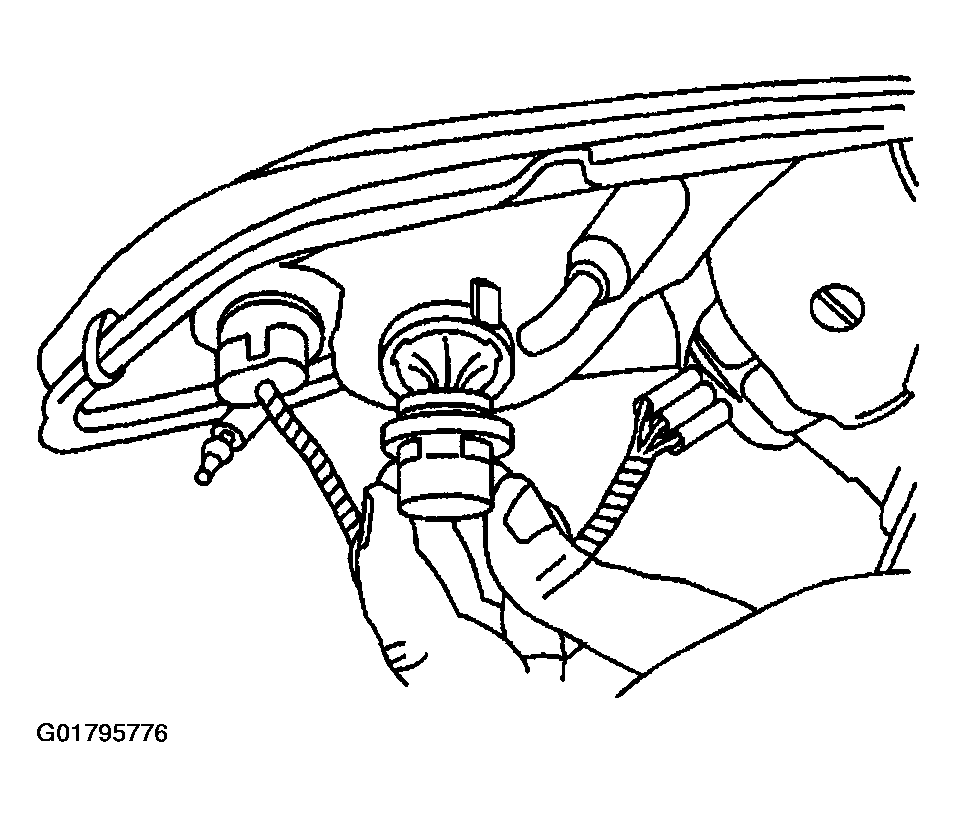

    Fig 2: Removing Socket & Bulb From Headlamp Assembly
    G01795776Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb from the socket.
