Theft Deterrent System Component Views

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

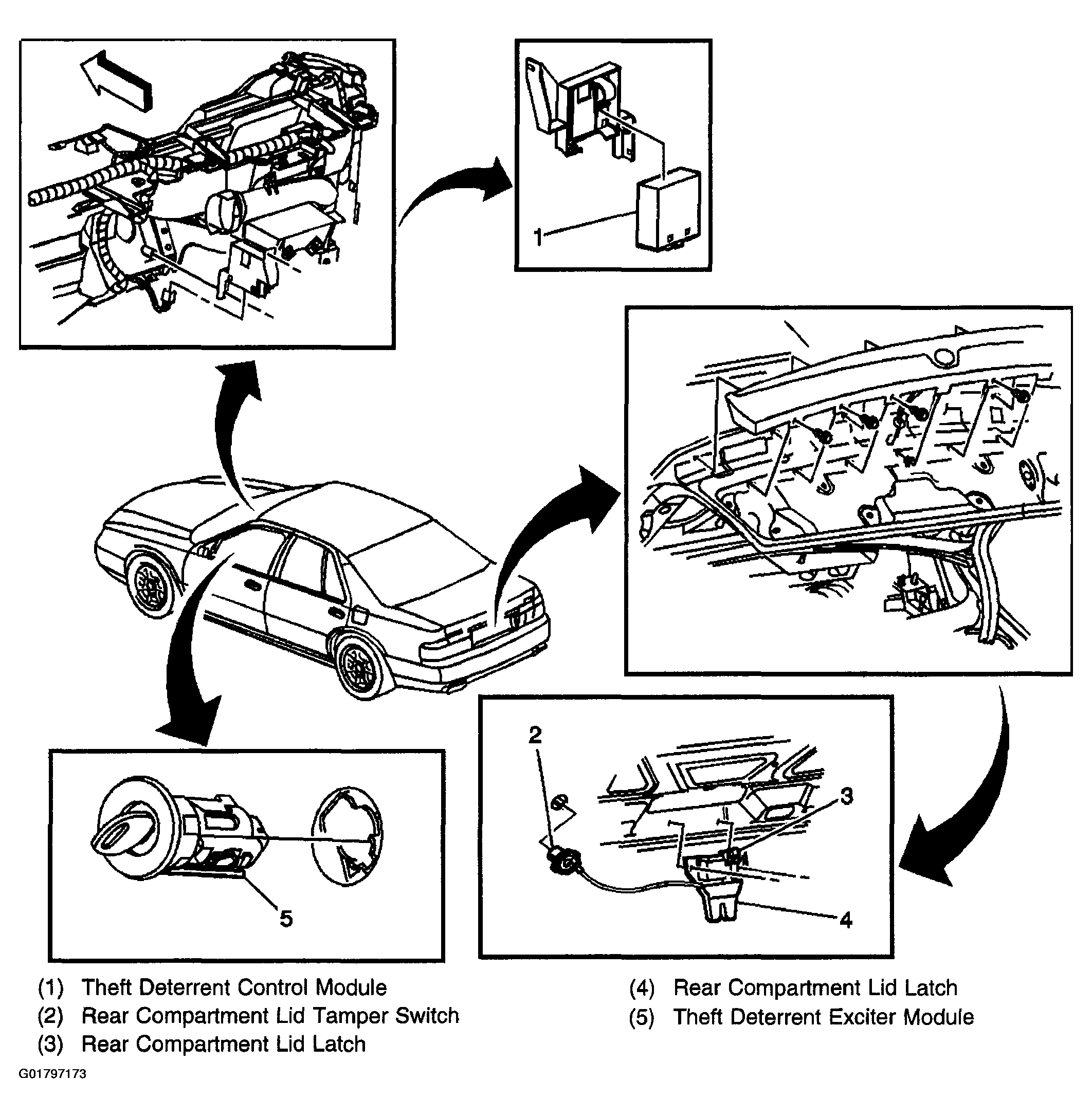

Fig 1: Theft Sub-System
G01797173Courtesy of GENERAL MOTORS CORP.
