Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the three fasteners from the outboard bezel.
  2. Pull the sunshade down until the electrical connector is exposed.
  3. Disconnect the electrical connector.
  4. Remove the sunshade.
  5. Remove the fastener from the sunshade support.
  6. Remove the sunshade support (1).

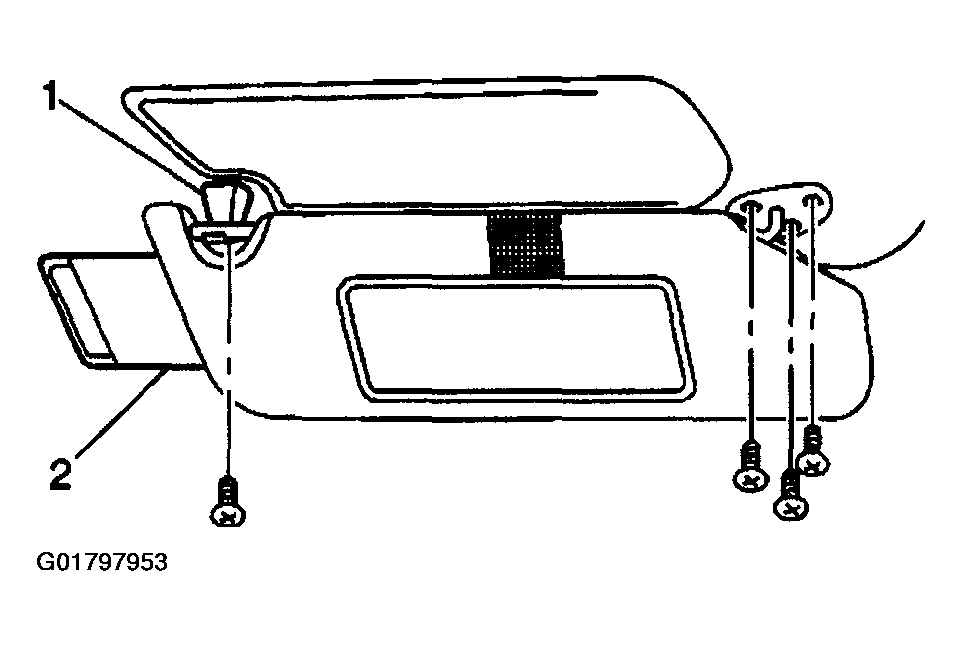

    Fig 1: Removing Fastener & Sunshade Support
    G01797953Courtesy of GENERAL MOTORS CORP.
