Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the sail panel retainer clips with the holes in the rear window pillar.
  2. Push in on the sail panel to engage the retainer clips.
  3. Install the rear seat shoulder belt retractor. Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR .

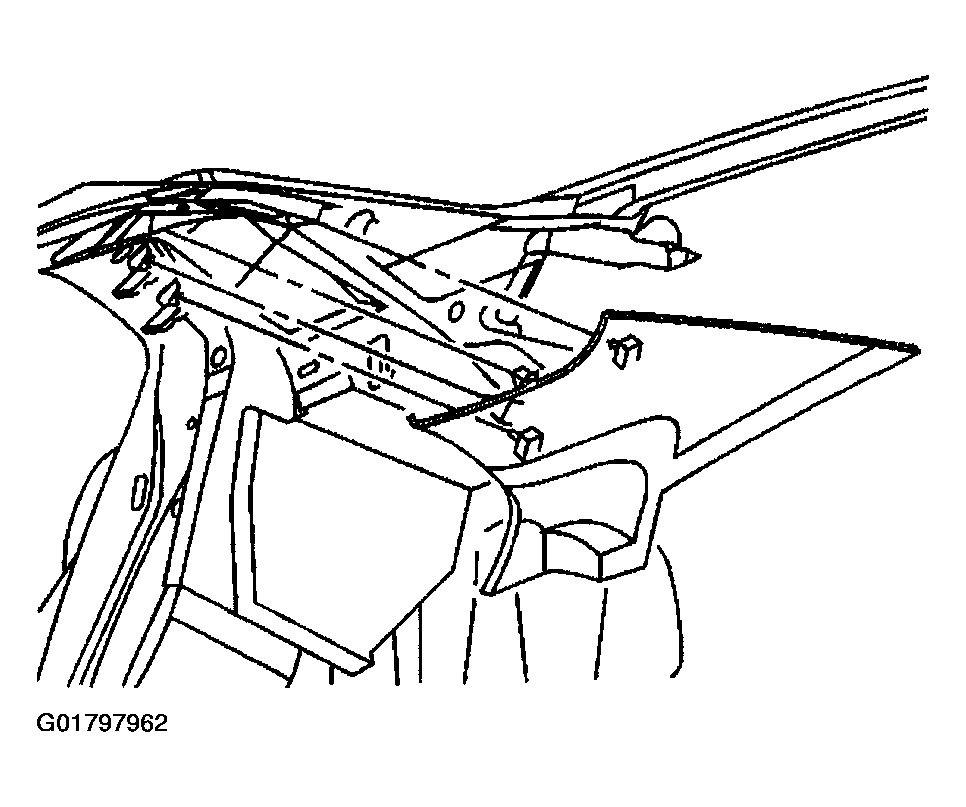

    Fig 1: Installing Sail Panel & Retainers
    G01797962Courtesy of GENERAL MOTORS CORP.
