Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Important: Installation of a new cardboard roof insulator is necessary to ensure the acoustical integrity of the roof system. Use GM P/N 12378192 Adhesive available through General Motors Service Parts Operations.

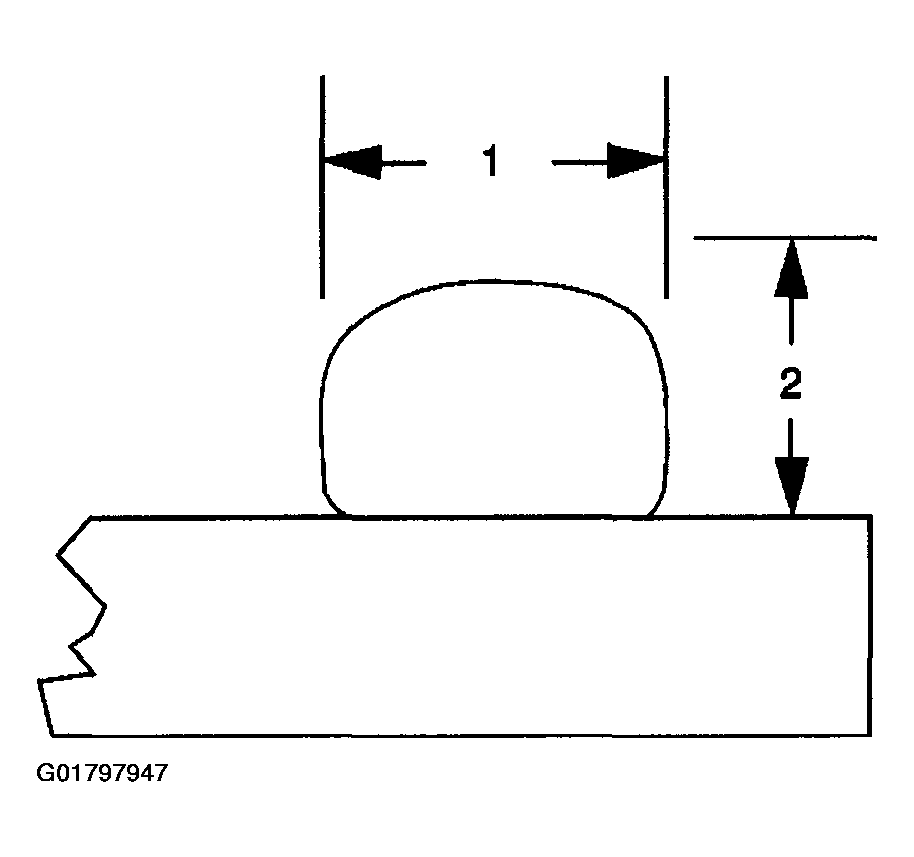

Apply 6 mm (1/4 in) to 9 mm (3/8 in) (2) beads of adhesive 15 mm (5/8 in) wide (1).

Fig 1: Installing Adhesive Beads & Cardboard Roof Insulator
Courtesy of GENERAL MOTORS CORP.

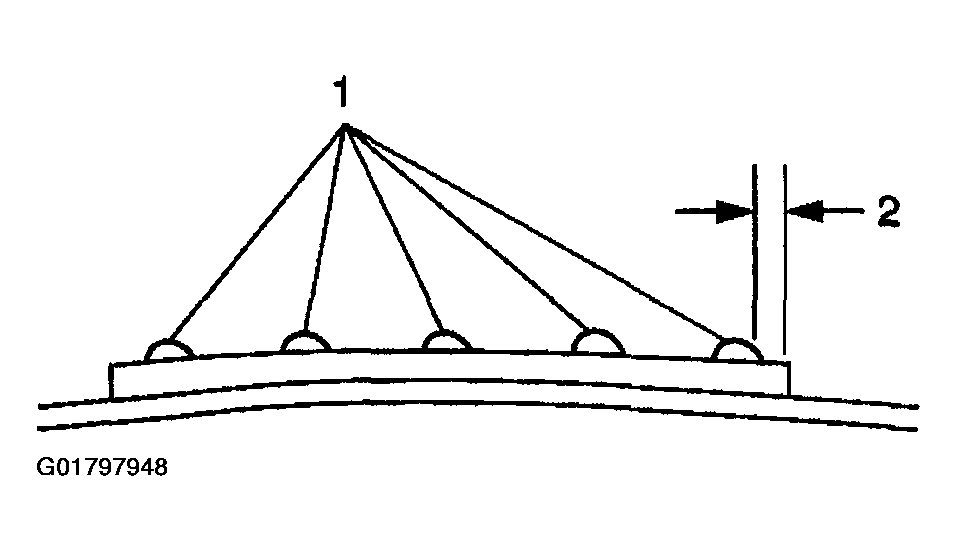

Apply the adhesive in the locations marked on the cardboard insulator (1).
Important: Cardboard roof insulator must be installed within five minutes of adhesive application.
Place the cardboard roof insulator to the roof panel.
Important: Gluing the headliner to the cardboard roof insulator during installation is not required.
Install the headliner. Refer to Headliner Replacement (w/o CF5) or Headliner Replacement (w/ CF5) .

Fig 2: Locations Marked On Cardboard Insulator
Courtesy of GENERAL MOTORS CORP.
