Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Install the foot rest base.
NOTE: Refer to FASTENER NOTICE .
Install the 2 fasteners.
Tighten

Tighten the foot rest base fasteners to 2 N.m (18 lb in).

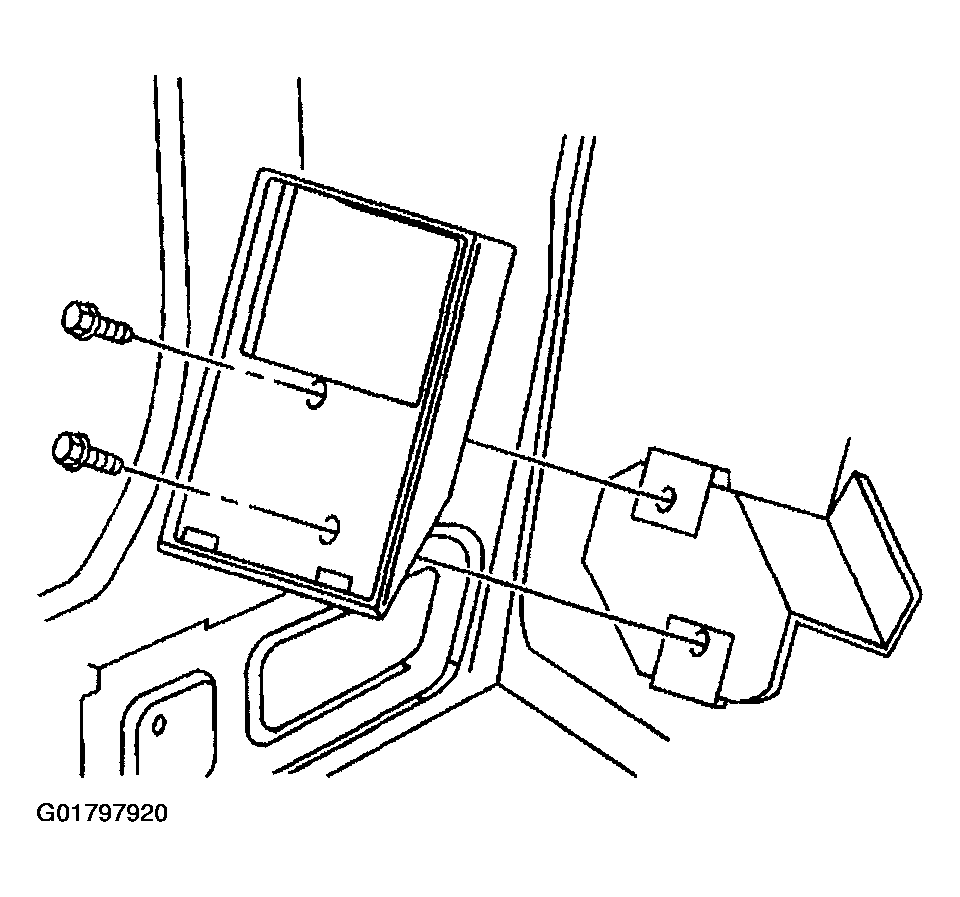

Fig 1: Installing Fasteners & Foot Rest Cover (LHD)
Courtesy of GENERAL MOTORS CORP.
Install the foot rest cover.
Place the tabs on the bottom of the foot rest cover into the slots in the base.
Snap the top tabs into the foot rest base.

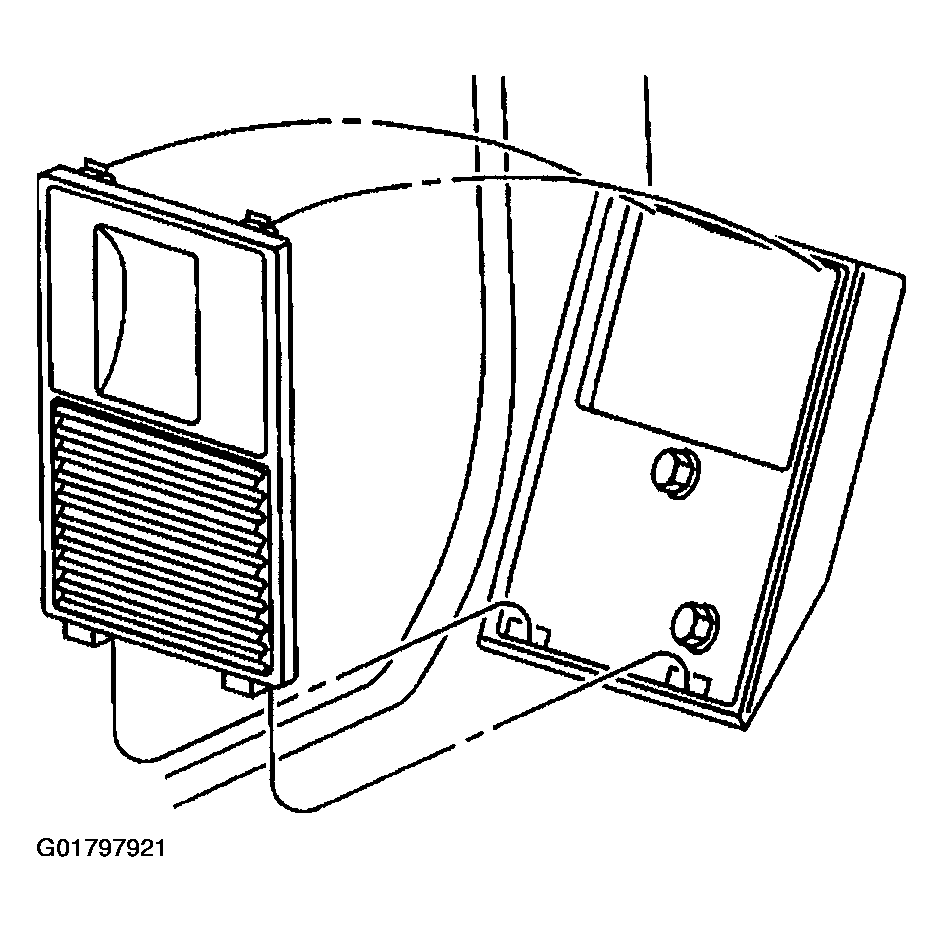

Fig 2: Installing Foot Rest Cover (LHD)
Courtesy of GENERAL MOTORS CORP.
