Memory Seats Schematics

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

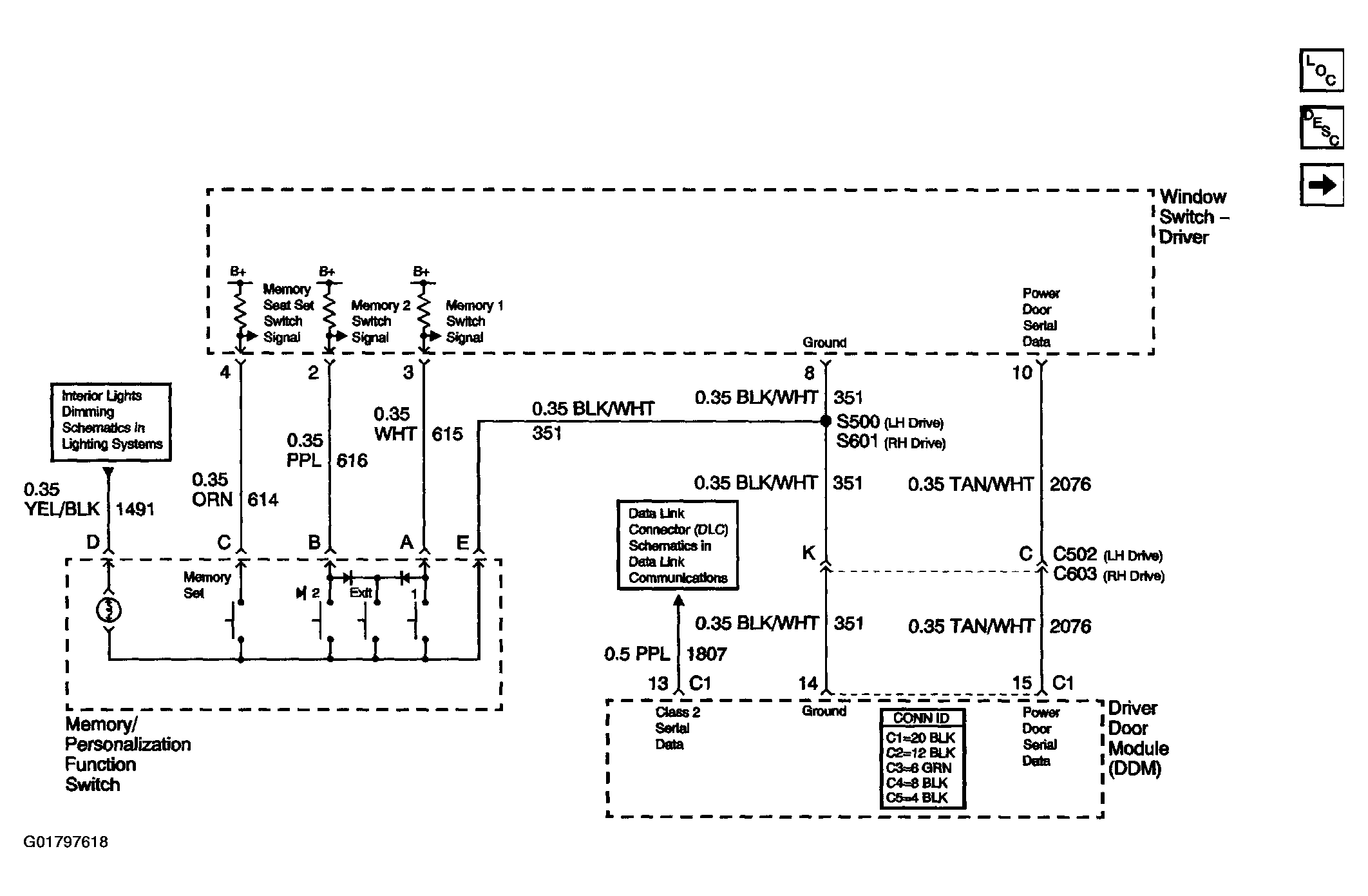

Fig 1: Memory Seats Schematics (Memory/Personalization Function Switch)

Courtesy of GENERAL MOTORS CORP.

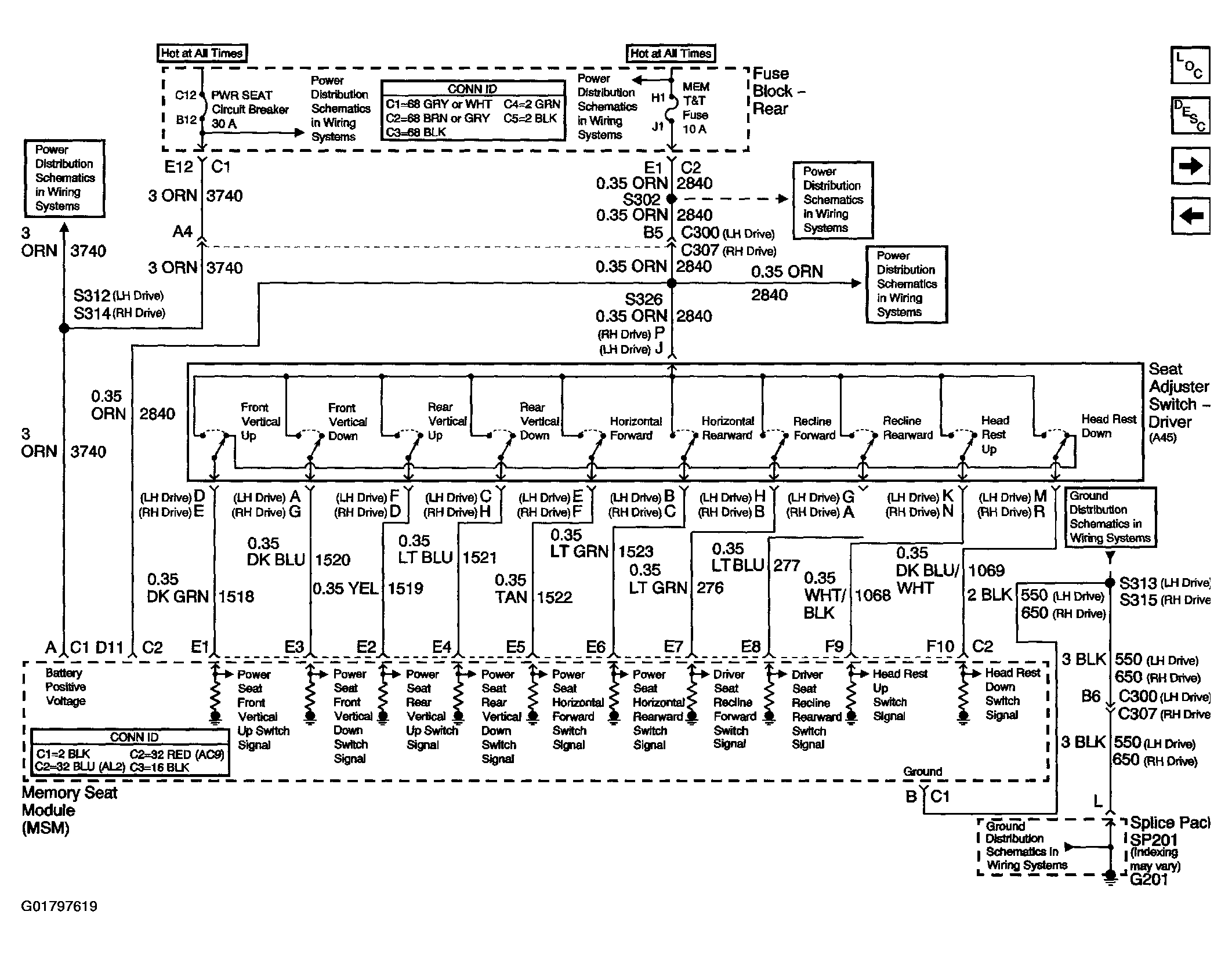

Fig 2: Memory Seats Schematics (Power & Ground)

Courtesy of GENERAL MOTORS CORP.

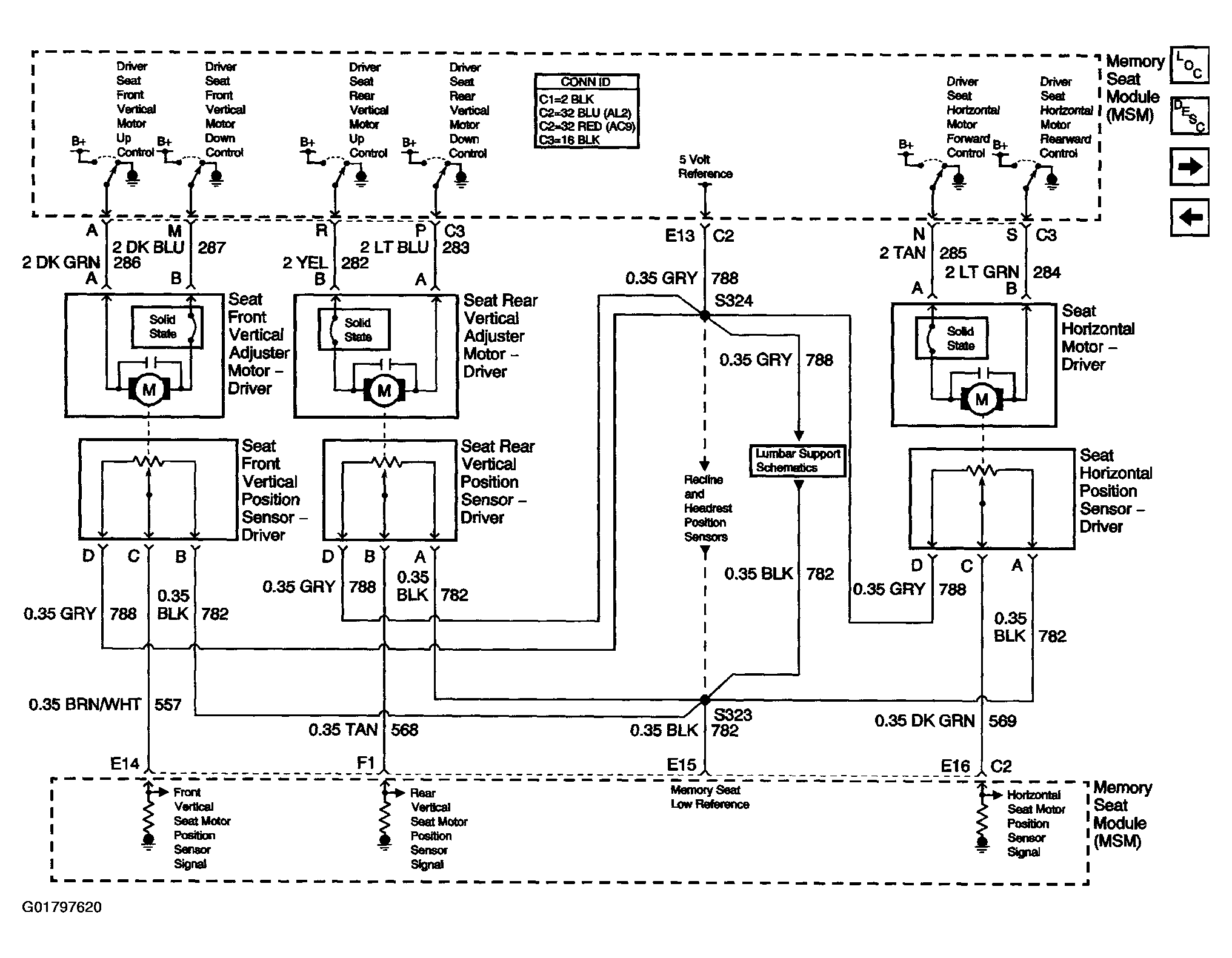

Fig 3: Memory Seats Schematics (Vertical & Horizontal Motors & Position Sensors)

Courtesy of GENERAL MOTORS CORP.

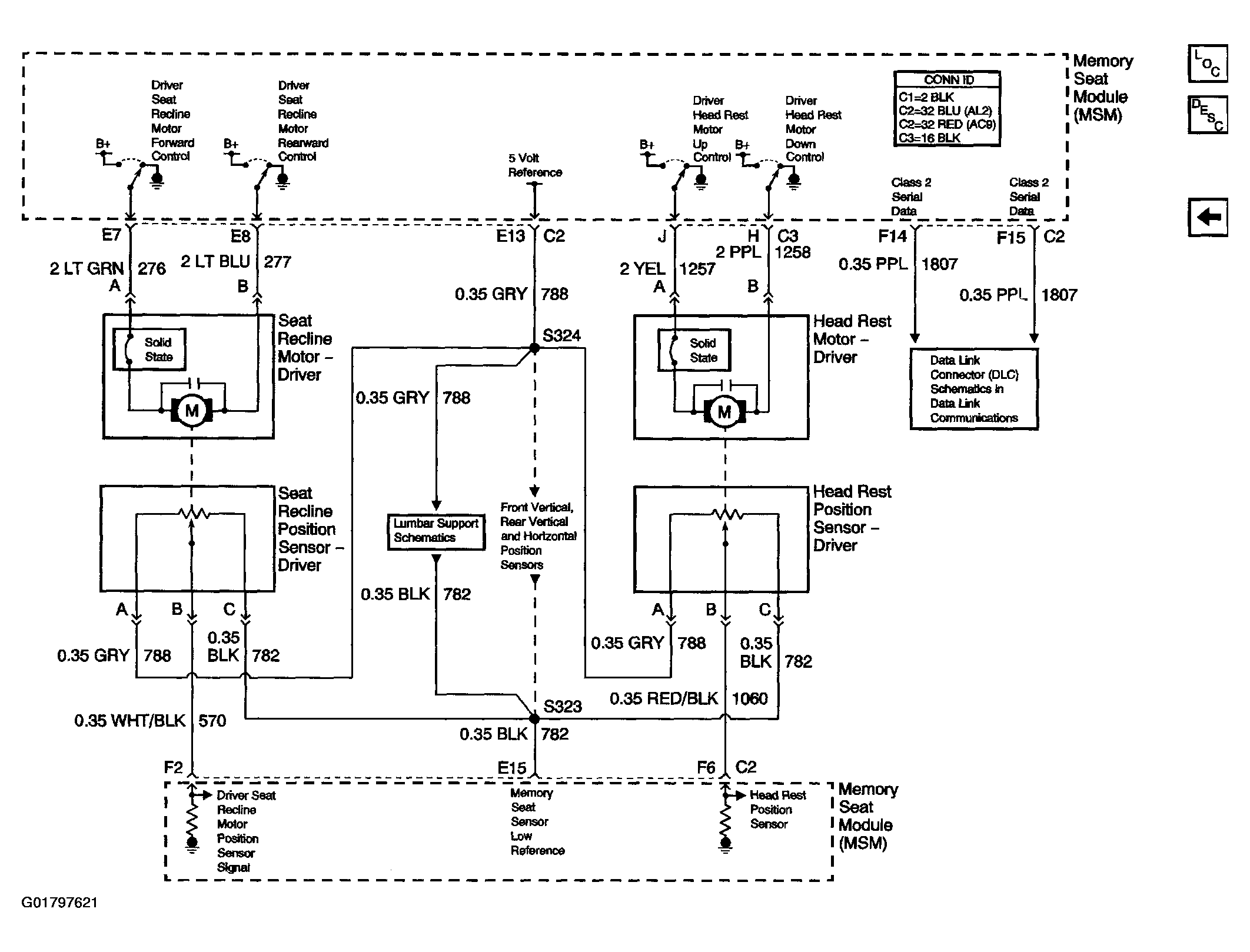

Fig 4: Memory Seats Schematics (Seat Recline & Headrest Motors & Position Sensors)

Courtesy of GENERAL MOTORS CORP.
