Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back to the vehicle.
  2. Feed the pass-through release cable through opening behind seat back.
  3. Connect the heated seat electrical connectors (if equipped).
  4. Position the rear shoulder belts over the seat back.

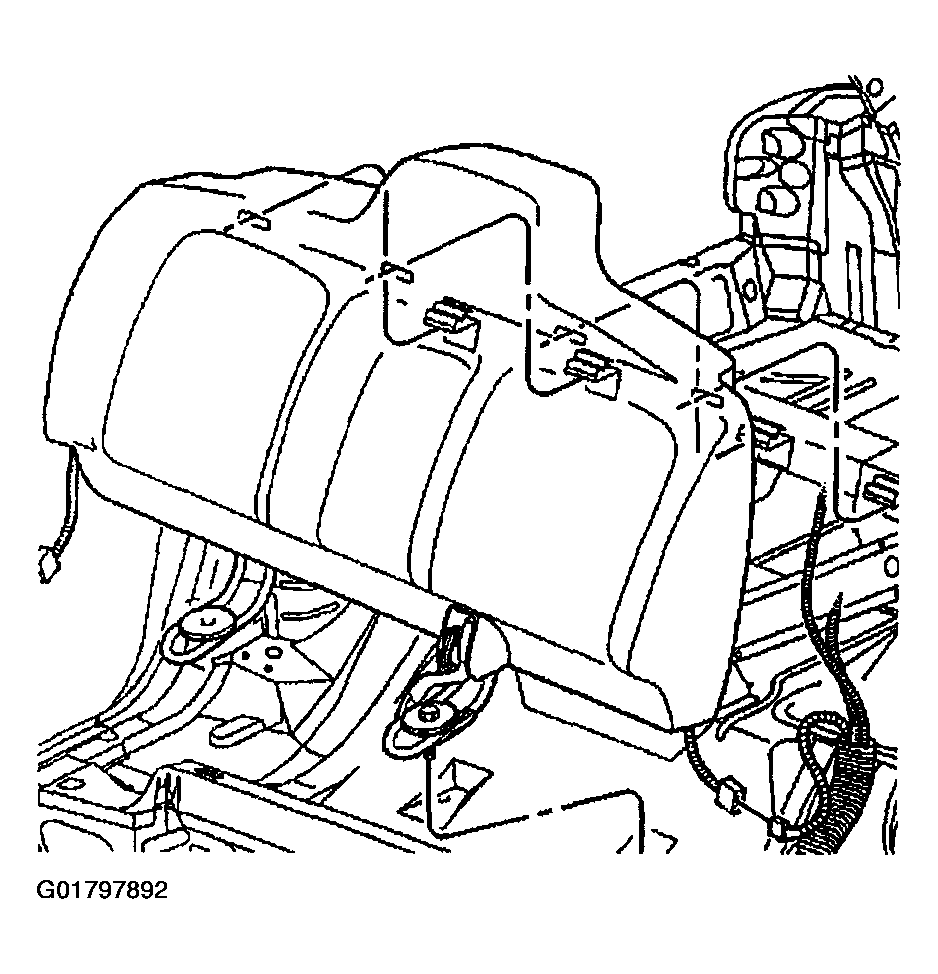

    Fig 1: Installing Rear Seat Back
    G01797892Courtesy of GENERAL MOTORS CORP.
  5. Align the 4 retainers on the seat back to the 4 slots in the cross car beam.
  6. Firmly push the seat back against the car cross beam in order to engage the retainers.

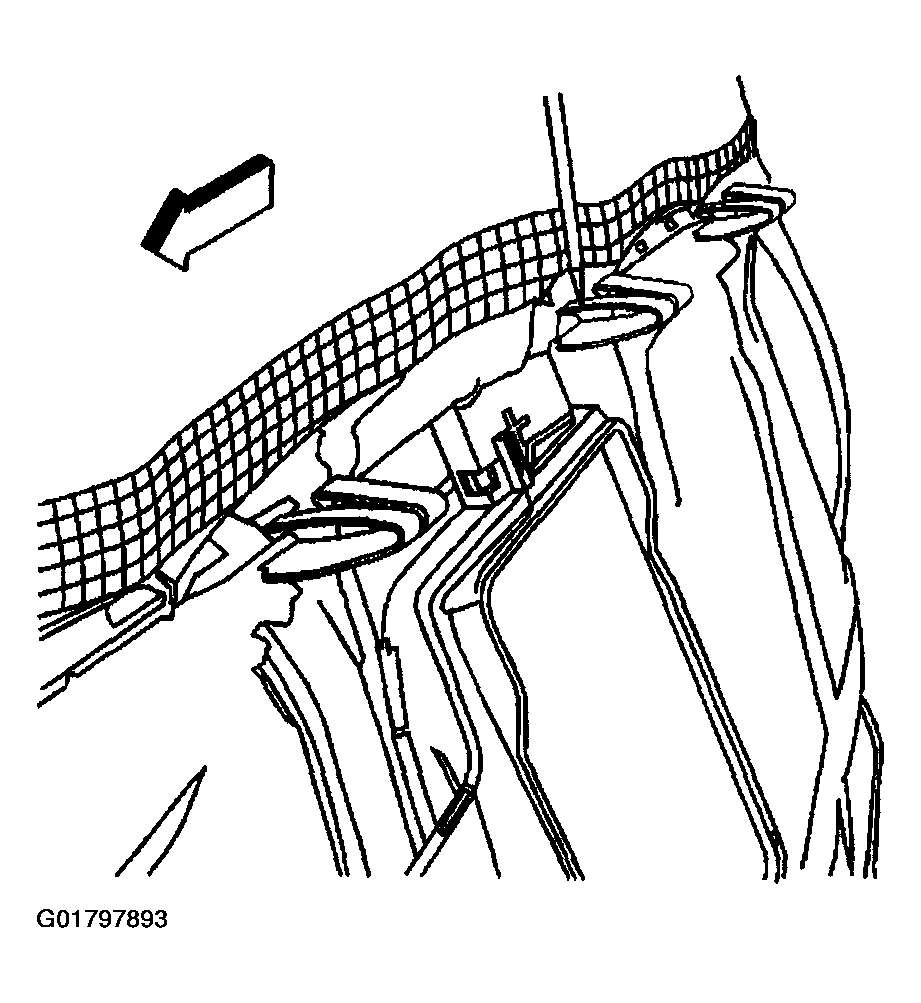

    Fig 2: Seat Back Retainers
    G01797893Courtesy of GENERAL MOTORS CORP.
  7. Position the center shoulder belt over the seat back.
    NOTE: Refer to FASTENER NOTICE .

    Important:  Ensure that the bolt threads and bolt holes are free of any sealer patch material.

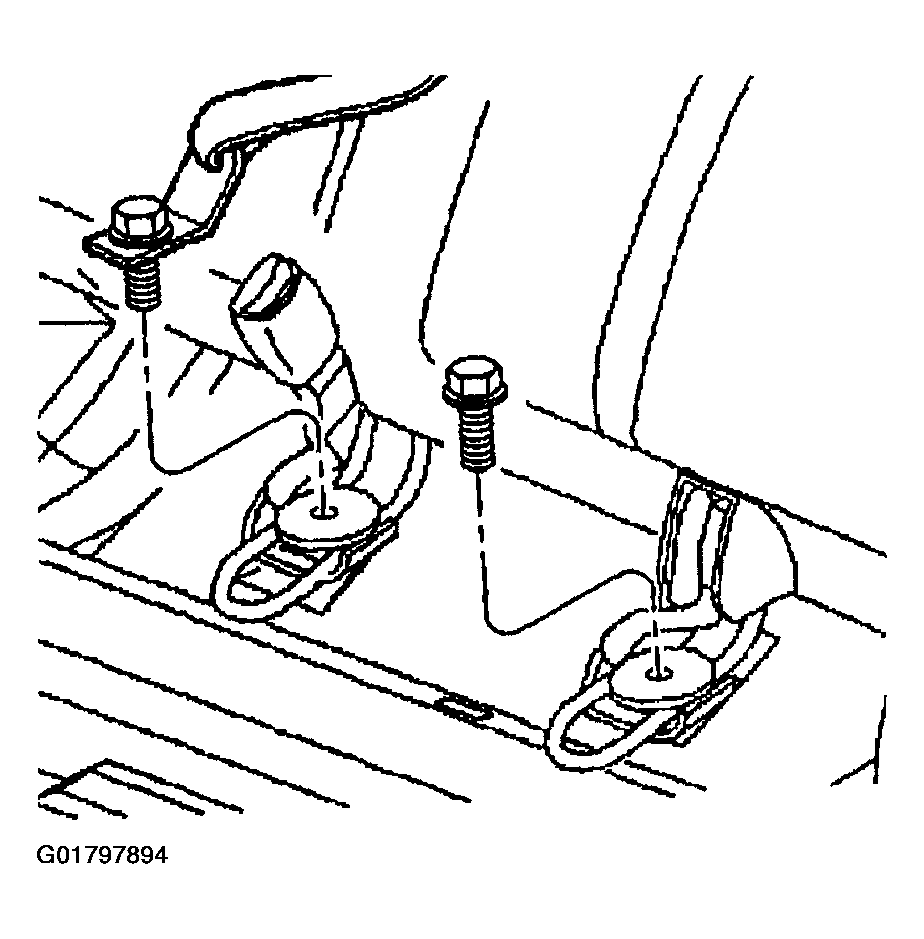

    8. Fig 3: Center Seat Belt & Outer Shoulder Belt Buckle Anchor Bolts
    G01797894Courtesy of GENERAL MOTORS CORP.
  8. Install the center seat belt and outer shoulder belt buckle anchor bolts.

    Tighten

    Tighten the bolts to 41 N.m (32 lb ft).

  9. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
  10. Install the pass-through release cable fasteners and cable clips.
  11. Install the upper trunk trim.
