Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

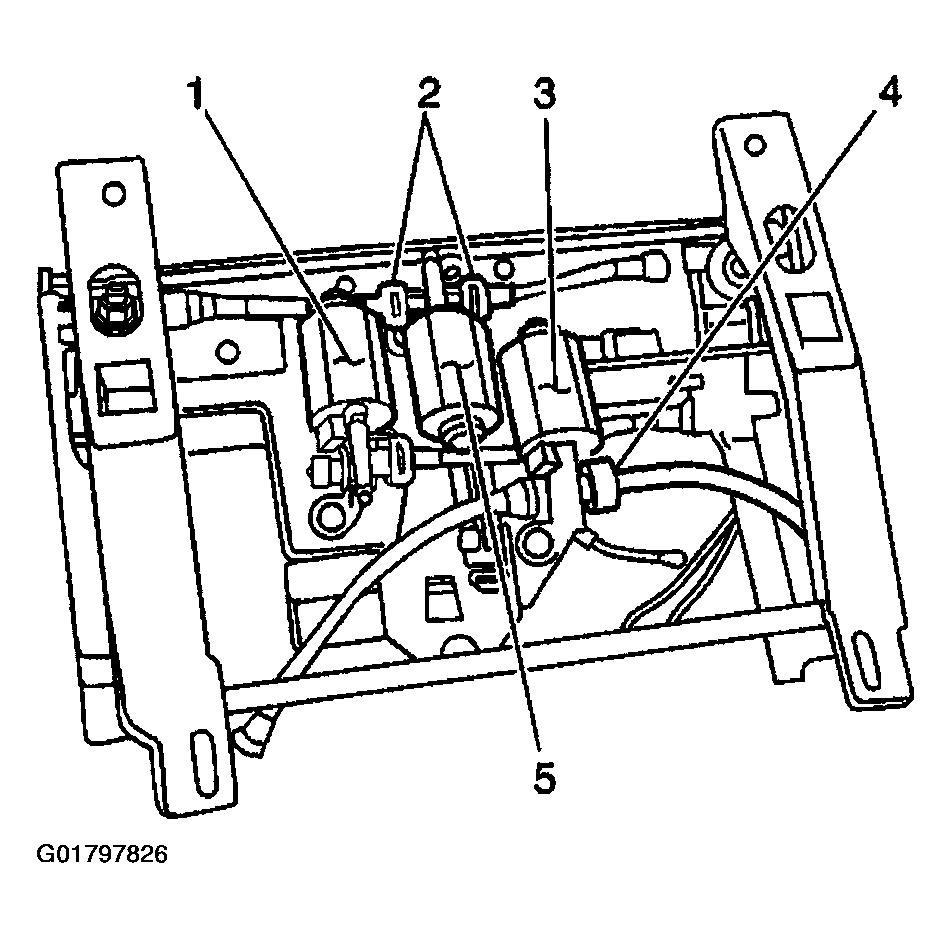

    Fig 1: Locating Seat Adjuster Components
    G01797826Courtesy of GENERAL MOTORS CORP.
  1. Transfer any remaining seat components to the new adjuster frame:
    • The adjuster cables/sensors (2,4)
    • The seat adjuster motors (1,3)
    • The lower retractor
    • The wiring
    • the clips
  2. Install the front seat cushion. Refer to Seat Cushion Replacement - Front .
  3. Install the seat back frame. Refer to Seat Back Frame Replacement - Front .
  4. Install the front bucket seat. Refer to Seat Replacement - Front Bucket .
